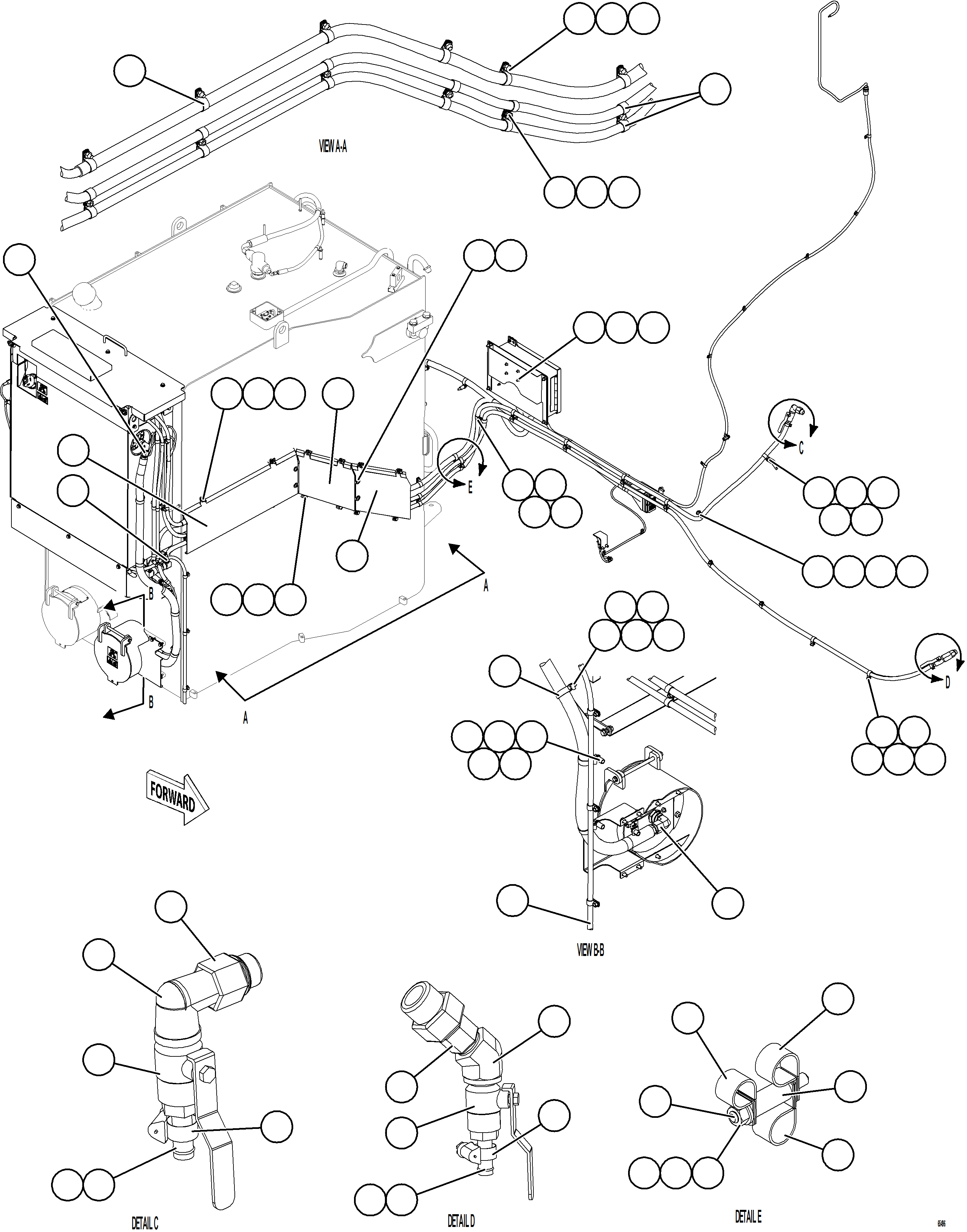

DEF TANK RETURN AND SUPPLY PIPING 1/2(D-030 : 65496)
Номер на схеме Каталожный номер Название Количество Детали
? 58E-02-12510 HOSE, COOLANT 1
? 58E-02-12500 HOSE, COOLANT 1
? WB3093 CLAMP, CUSHIONED - 1" 23
? MM0461 FLAT WASHER - M10 31
? MM0178 NUT - M10 X 1.50 31
? WB3857 CLAMP, CUSHIONED - 1 3/16" 7
? EM1393 SPACER 1
? MM0604 CAPSCREW - M10 X 1.50 X 20 12
? PC1780 ADAPTER 2
? 58B-60-00280 FITTING, ELBOW - 45 DEG 1
? 58E-03-01200 VALVE, BALL 2
? 58E-03-01190 ADAPTER, HOSE 2
? HC0908 CLAMP, WORM DRIVE 2
? 58E-03-00210 BRACKET 1
? SP3956 ELBOW, STRAIGHT 1
? MM0471 LOCKWASHER - M10 44
? WB1302 CLAMP, CUSHIONED - 5/16" 2
? 58F-02-02410 HOSE 1
? 58F-02-02330 HOSE 1
? WB3858 CLAMP, CUSHIONED - 1 13/16" 5
? WB1303 CLAMP, CUSHIONED - 3/4" 3
? MM0605 CAPSCREW - M10 X 1.50 X 25 2
? 58E-02-51490 COVER 1
? 58E-54-19950 CAPSCREW, INTERNAL HEX - M10 X 1.50 X 20 4
? EL6380 ROD, THREADED 1
? EL3892 SPACER 3
? 58E-02-51340 COVER 1
? 58E-02-51350 COVER 1
? 58E-09-00290 WASHER - M10 16
