Номер на схеме	Каталожный номер	Название	Количество	Детали
?	6251-11-5950	MUFFLER	1	Field_1: MUFFLER Field_2: 567555- code:
?	09817-A0005	• RIVET	8	Field_1: RIVET Field_2: 567555- code:
?	09817-A1103	• PLATE, WARNING, HIGH TEMPERATURE	2	Field_1: PLATE, WARNING, HIGH TEMPERATURE Field_2: 567555- code:
?	6150-11-5751	GASKET	1	Field_1: GASKET Field_2: 567555- code:
?	01435-01030	BOLT	4	Field_1: BOLT Field_2: 567555- code:
?	6221-11-5910	U-BOLT	1	Field_1: U-BOLT Field_2: 567555- code:
?	6215-11-5740	NUT	2	Field_1: NUT Field_2: 567555- code:
?	01643-31032	WASHER	2	Field_1: WASHER Field_2: 567555- code:
?	6251-11-5780	BRACKET	1	Field_1: BRACKET Field_2: 567555- code:
?	01010-E1045	BOLT	4	Field_1: BOLT Field_2: 567555- code:
?	6631-11-5630	SPACER	4	Field_1: SPACER Field_2: 567555- code:
?	6151-11-5280	SEAL RING	1	Field_1: SEAL RING Field_2: 567555- code:
?	01050-61240	BOLT	4	Field_1: BOLT Field_2: 567555- code:
?	6685-11-5550	NUT	4	Field_1: NUT Field_2: 567555- code:
?	6251-11-5380	JOINT	1	Field_1: JOINT Field_2: 567555- code:
?	6251-11-5750	TUBE, DRAIN	1	Field_1: TUBE, DRAIN Field_2: 567555- code:
?	600-051-6100	CLIP	2	Field_1: CLIP Field_2: 567555- code:
?	01435-01035	BOLT	1	Field_1: BOLT Field_2: 567555- code:
?	6631-11-5630	SPACER	1	Field_1: SPACER Field_2: 567555- code:
?	01435-01020	BOLT	1	Field_1: BOLT Field_2: 567555- code:
?	01643-31032	WASHER	2	Field_1: WASHER Field_2: 567555- code:
?	6251-11-5760	BRACKET	1	Field_1: BRACKET Field_2: 567555- code:
?	01435-01030	BOLT	1	Field_1: BOLT Field_2: 567555- code:
?	07260-20960	HOSE	1	Field_1: HOSE Field_2: 567555- code:
?	07281-00197	CLAMP	1	Field_1: CLAMP Field_2: 567555- code:

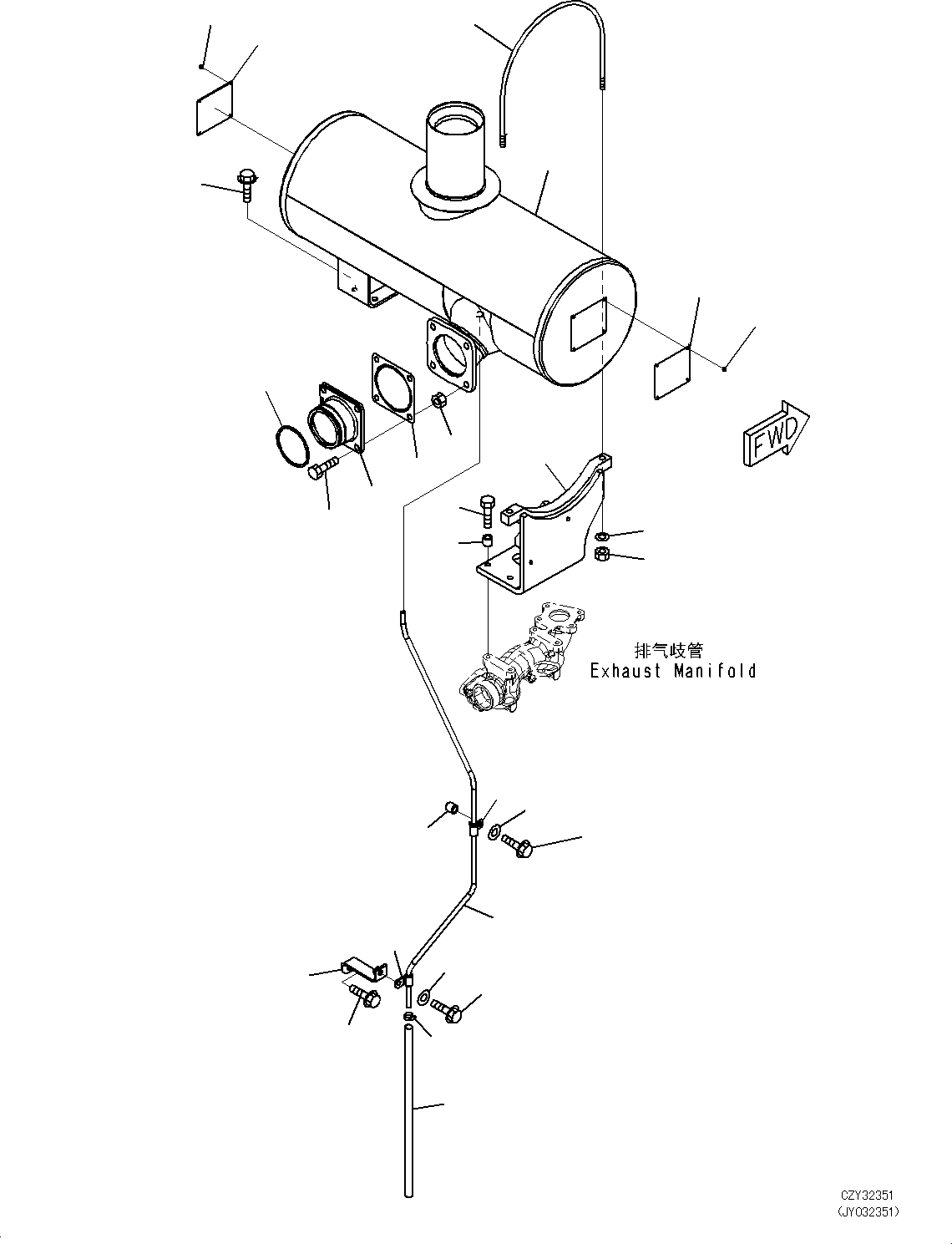

Engines Komatsu / SAA6D125E-5D S/N 567555-up(KC_EE017) / EXHAUST MUFFLER(|A00009 : |A00009)
