Номер на схеме	Каталожный номер	Название	Количество	Детали
?	04434-52712	CLIP	4	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	4	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	4	Field_1: WASHER Field_2: DZCA0001- code:
?	17M-49-15260	BRACKET	1	Field_1: BRACKET Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51712	CLIP	4	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	4	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	4	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51412	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51012	CLIP	3	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	2	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	2	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-52312	CLIP	2	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	2	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	2	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51712	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	08053-01512	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-52712	CLIP	6	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	6	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	6	Field_1: WASHER Field_2: DZCA0001- code:
?	207-62-62770	BRACKET	1	Field_1: BRACKET Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-52312	CLIP	3	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	3	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	3	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51412	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51912	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	04434-51712	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:

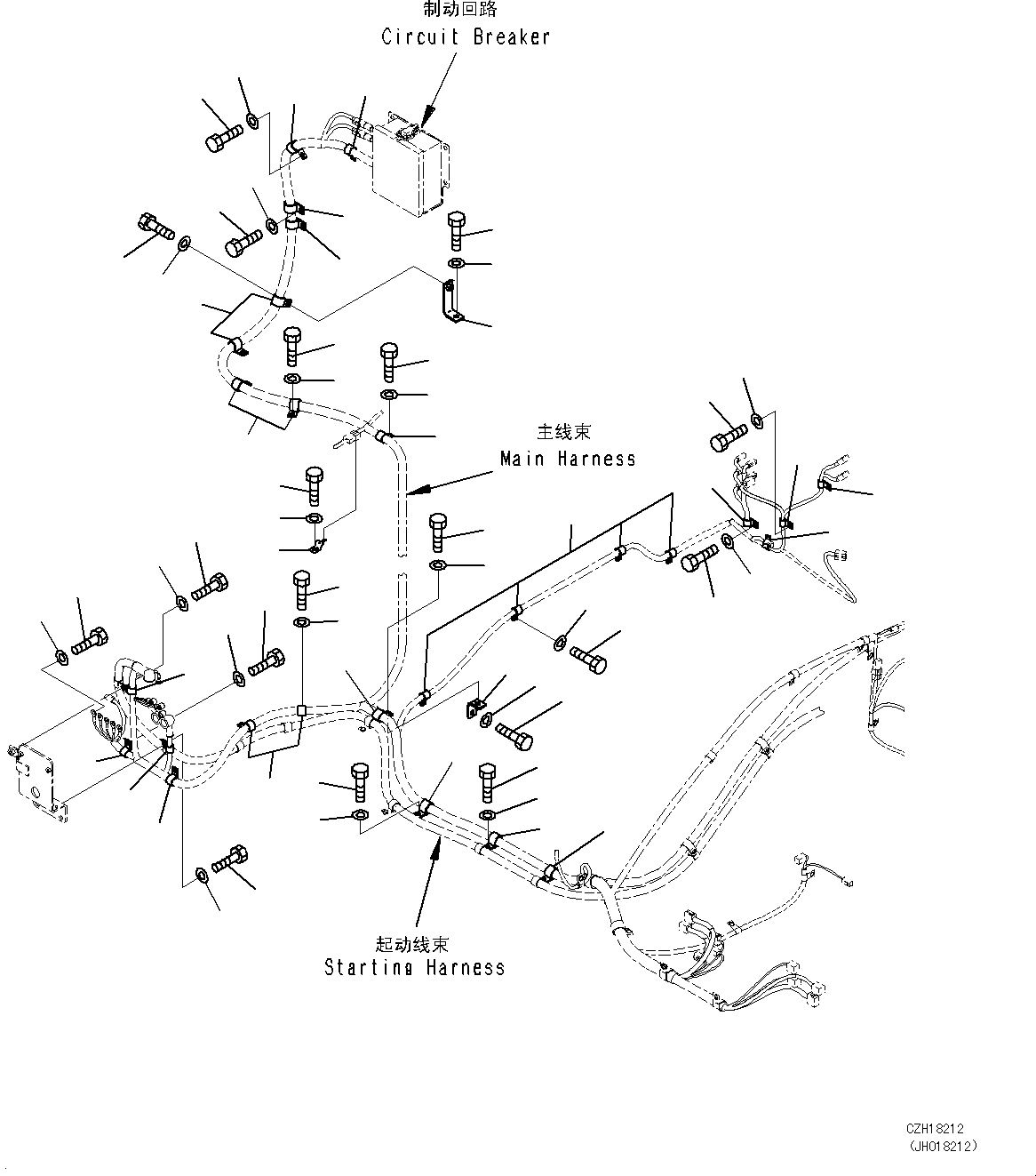

Excavators Komatsu / PC700LC-8E0 S/N DZCA0001-up(KC_EB016) / WIRING HARNESS (BAD FUEL AND POOR FUEL SPECIFICATION, WATER+DUST, WITH BATTERY, BATTERY) (MAIN WIRING HARNESS) (3/3)(|E00048 : |E00048)
