Каталог Komatsu

k-part

Номер на схеме	Каталожный номер	Название	Количество	Детали
?	02753-00315	HOSE, FACE SEAL TYPE	1	Field_1: HOSE, FACE SEAL TYPE Field_2: DZCA0001- code:
?	02753-00317	HOSE, FACE SEAL TYPE	3	Field_1: HOSE, FACE SEAL TYPE Field_2: DZCA0001- code:
?	20Y-62-22790	BAND, RED	2	Field_1: BAND, RED Field_2: DZCA0001- code:
?	20Y-62-22810	BAND, YELLOW	2	Field_1: BAND, YELLOW Field_2: DZCA0001- code:
?	20Y-62-22820	BAND, BLUE	2	Field_1: BAND, BLUE Field_2: DZCA0001- code:
?	20Y-62-22830	BAND, WHITE	2	Field_1: BAND, WHITE Field_2: DZCA0001- code:
?	08034-20536	BAND	2	Field_1: BAND Field_2: DZCA0001- code:
?	21M-62-14840	HOSE	1	Field_1: HOSE Field_2: DZCA0001- code:
?	21M-62-22150	HOSE	1	Field_1: HOSE Field_2: DZCA0001- code:
?	21M-62-32290	HOSE	1	Field_1: HOSE Field_2: DZCA0001- code:
?	20Y-62-22840	BAND, BLACK	2	Field_1: BAND, BLACK Field_2: DZCA0001- code:
?	20Y-62-22860	BAND, BROWN	2	Field_1: BAND, BROWN Field_2: DZCA0001- code:
?	02896-11009	O-RING	1	Field_1: O-RING Field_2: DZCA0001- code:
?	113-899-7950	CLIP	2	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81225	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	23T-62-12160	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81230	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	20Y-06-21240	PLATE	1	Field_1: PLATE Field_2: DZCA0001- code:
?	207-62-33690	CLIP	1	Field_1: CLIP Field_2: DZCA0001- code:
?	01010-81230	BOLT	1	Field_1: BOLT Field_2: DZCA0001- code:
?	01643-31232	WASHER	1	Field_1: WASHER Field_2: DZCA0001- code:
?	02763-003A7	HOSE, FACE SEAL TYPE	1	Field_1: HOSE, FACE SEAL TYPE Field_2: DZCA0001- code:
?	02763-00305	HOSE, FACE SEAL TYPE	1	Field_1: HOSE, FACE SEAL TYPE Field_2: DZCA0001- code:

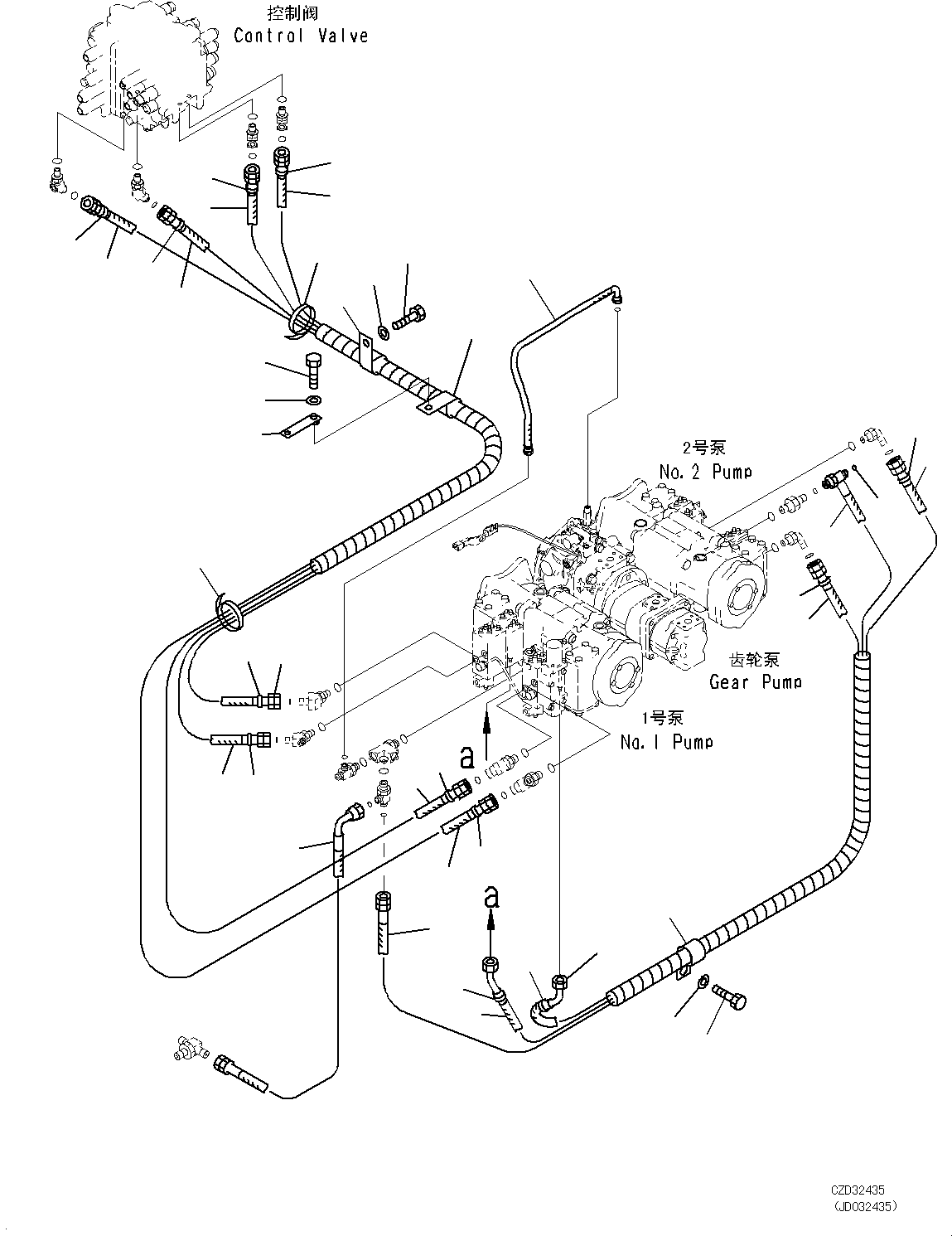

Excavators Komatsu / PC700LC-8E0 S/N DZCA0001-up(KC_EB016) / O.L.S.S. PIPING(|H00157 : |H00157)
