Номер на схеме	Каталожный номер	Название	Количество	Детали
?	208-62-65110	GROMMET	2	Field_1: GROMMET Field_2: DZCZ2001- code:
?	208-62-72810	GROMMET	2	Field_1: GROMMET Field_2: DZCZ2001- code:
?	20Y-62-12121	GROMMET	2	Field_1: GROMMET Field_2: DZCZ2001- code:
?	208-62-53350	GROMMET	2	Field_1: GROMMET Field_2: DZCZ2001- code:
?	07371-31049	FLANGE, SPLIT	8	Field_1: FLANGE, SPLIT Field_2: DZCZ2001- code:
?	07372-21035	BOLT	16	Field_1: BOLT Field_2: DZCZ2001- code:
?	01643-51032	WASHER	16	Field_1: WASHER Field_2: DZCZ2001- code:
?	02781-00522	UNION	2	Field_1: UNION Field_2: DZCZ2001- code:
?	02896-11015	O-RING	2	Field_1: O-RING Field_2: DZCZ2001- code:
?	07002-12434	O-RING	2	Field_1: O-RING Field_2: DZCZ2001- code:
?	02781-0031D	UNION	2	Field_1: UNION Field_2: DZCZ2001- code:
?	02896-11009	O-RING	2	Field_1: O-RING Field_2: DZCZ2001- code:
?	07002-11423	O-RING	2	Field_1: O-RING Field_2: DZCZ2001- code:
?	08034-20834	BAND	6	Field_1: BAND Field_2: DZCZ2001- code:
?	208-62-76111	HOSE ASSEMBLY	2	Field_1: HOSE ASSEMBLY Field_2: DZCZ2001- code:
?	07000-13032	O-RING	4	Field_1: O-RING Field_2: DZCZ2001- code:
?	208-62-76150	HOSE ASSEMBLY	2	Field_1: HOSE ASSEMBLY Field_2: DZCZ2001- code:
?	07000-13032	O-RING	4	Field_1: O-RING Field_2: DZCZ2001- code:
?	02762-00326	HOSE, FACE SEAL TYPE	2	Field_1: HOSE, FACE SEAL TYPE Field_2: DZCZ2001- code:
?	02762-00525	HOSE	2	Field_1: HOSE Field_2: DZCZ2001- code:
?	205-62-53780	COVER	4	Field_1: COVER Field_2: DZCZ2001- code:
?	08034-20536	BAND	8	Field_1: BAND Field_2: DZCZ2001- code:
?	21T-06-17820	COVER	2	Field_1: COVER Field_2: DZCZ2001- code:
?	08034-20519	BAND	4	Field_1: BAND Field_2: DZCZ2001- code:
?	205-62-72140	COVER	2	Field_1: COVER Field_2: DZCZ2001- code:
?	08034-20414	BAND, BLACK	4	Field_1: BAND, BLACK Field_2: DZCZ2001- code:
?	(21W-62-42630)	TEE		Field_1: TEE Field_2: - code:
?	(207-62-72152)	TEE		Field_1: TEE Field_2: - code:

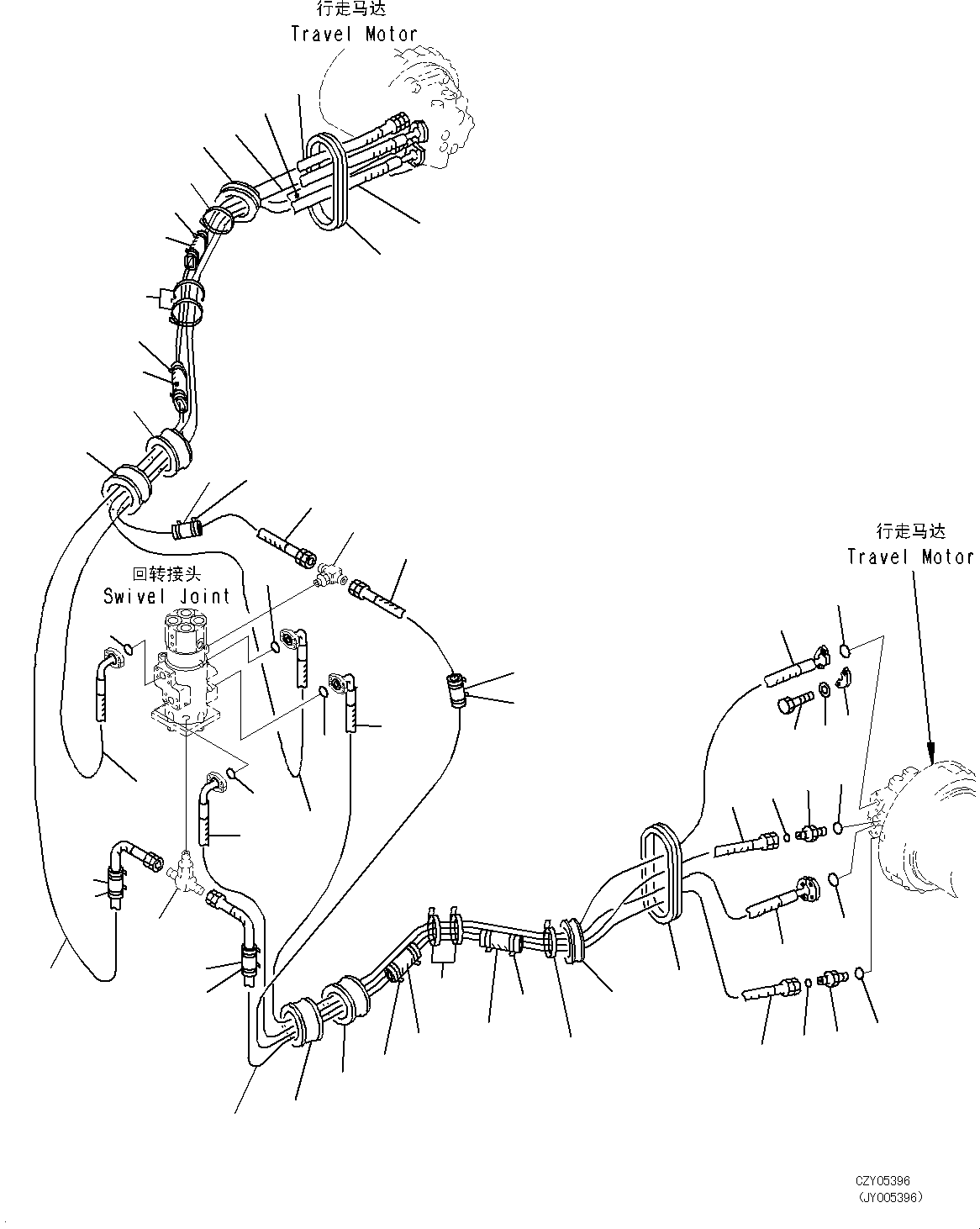

Excavators Komatsu / PC450-8 S/N DZCZ2001-up(KC_EB011) / TRAVEL PIPING(|P00211 : |P00211)
