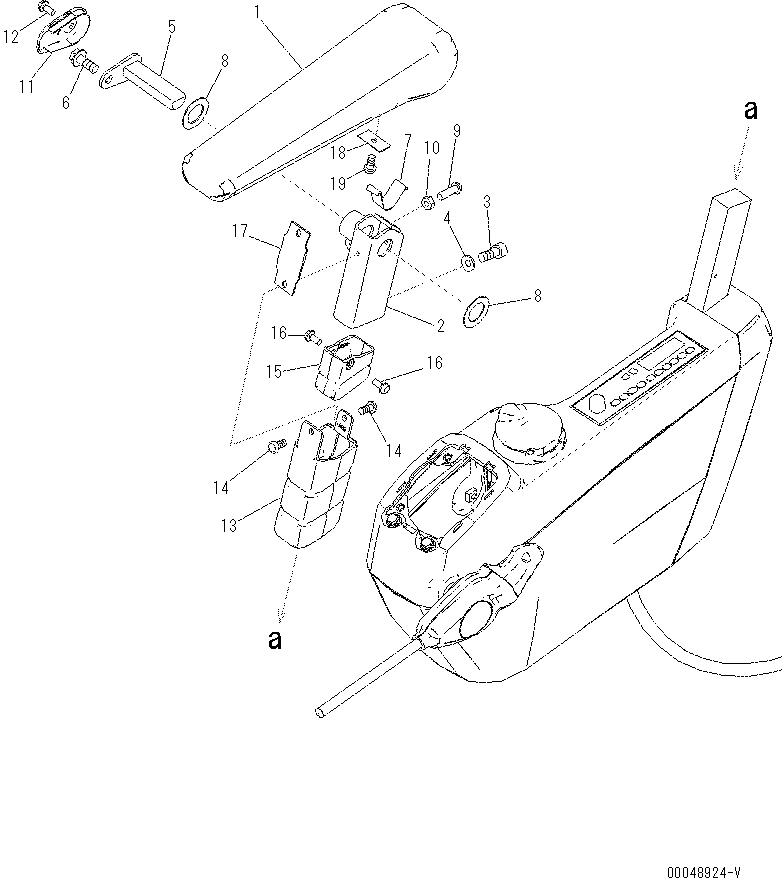

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 20Y-43-41143 | ARMRESTЈ¬L.H | 1 | Field_1: ARMRESTЈ¬L.H Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41173 | BRACKET,L.H | 1 | Field_1: BRACKET,L.H Field_2: DJA20001- code: |
|||
| ? | 01252-80820 | BOLT | 2 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-70823 | WASHER | 2 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41162 | PIN,L.H | 1 | Field_1: PIN,L.H Field_2: DJA20001- code: |
|||
| ? | 01435-40816 | BOLT | 1 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41152 | SPRING | 1 | Field_1: SPRING Field_2: DJA20001- code: |
|||
| ? | 437-40-26240 | WASHER | 2 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 01245-00620 | SCREW | 1 | Field_1: SCREW Field_2: DJA20001- code: |
|||
| ? | 01580-40605 | NUT | 1 | Field_1: NUT Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41181 | CAP | 1 | Field_1: CAP Field_2: DJA20001- code: |
|||
| ? | 01023-20512 | SCREW | 1 | Field_1: SCREW Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41191 | COVER, UPPER | 1 | Field_1: COVER, UPPER Field_2: DJA20001- code: |
|||
| ? | 01370-40510 | SCREW | 2 | Field_1: SCREW Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41591 | COVER, LOWER | 1 | Field_1: COVER, LOWER Field_2: DJA20001- code: |
|||
| ? | 01023-20512 | SCREW | 2 | Field_1: SCREW Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41281 | RUBBER | 1 | Field_1: RUBBER Field_2: DJA20001- code: |
|||
| ? | 20Y-43-41461 | PLATE | 1 | Field_1: PLATE Field_2: DJA20001- code: |
|||
| ? | 01370-40610 | SCREW | 1 | Field_1: SCREW Field_2: DJA20001- code: |
