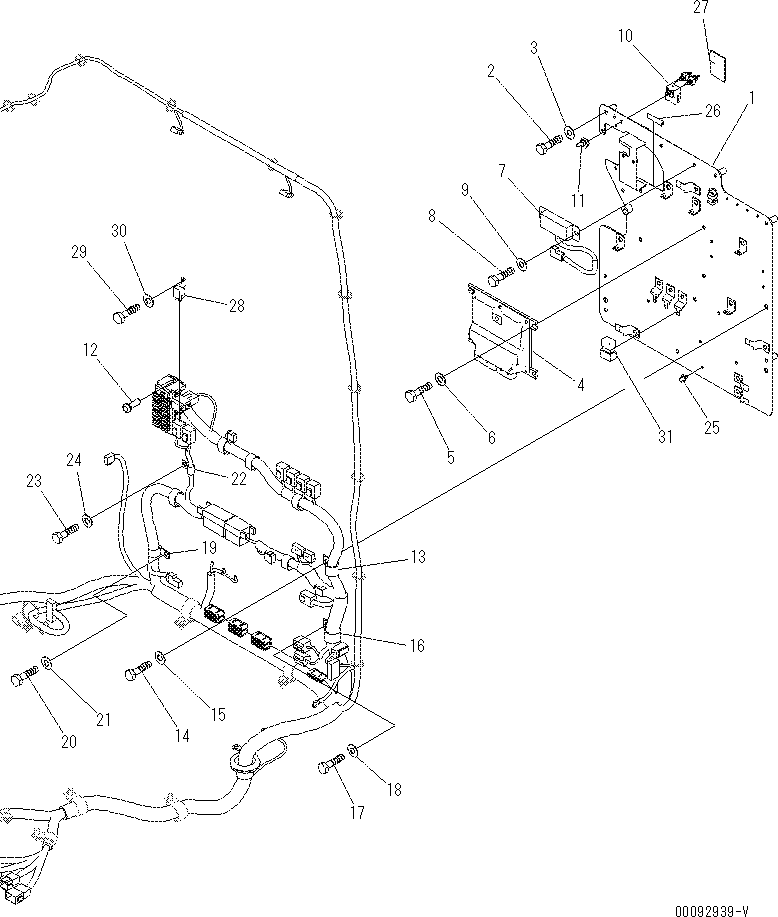

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 201-54-83142 | BRACKET | 1 | Field_1: BRACKET Field_2: DJA20001- code: |
|||
| ? | 01010-80845 | BOLT | 8 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-30823 | WASHER | 8 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 7835-45-2004 | CONTROLLER, PUMP | 1 | Field_1: CONTROLLER, PUMP Field_2: DJA20001- code: |
|||
| ? | 01010-80820 | BOLT | 4 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-30823 | WASHER | 4 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 7861-94-3000 | RESISTOR | 1 | Field_1: RESISTOR Field_2: DJA20001- code: |
|||
| ? | 01010-80816 | BOLT | 2 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-30823 | WASHER | 2 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 22B-06-21430 | WIRING HARNESS | 1 | Field_1: WIRING HARNESS Field_2: DJA20001- code: |
|||
| ? | 208-43-71420 | CAP | 2 | Field_1: CAP Field_2: DJA20001- code: |
|||
| ? | 01023-10620 | SCREW | 2 | Field_1: SCREW Field_2: DJA20001- code: |
|||
| ? | 04434-52511 | CLIP | 1 | Field_1: CLIP Field_2: DJA20001- code: |
|||
| ? | 01010-81016 | BOLT | 1 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-31032 | WASHER | 1 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 04434-53411 | CLIP | 1 | Field_1: CLIP Field_2: DJA20001- code: |
|||
| ? | 01010-81016 | BOLT | 1 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-31032 | WASHER | 1 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 04434-52310 | CLIP | 1 | Field_1: CLIP Field_2: DJA20001- code: |
|||
| ? | 01010-81016 | BOLT | 1 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-31032 | WASHER | 1 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 04434-51010 | CLIP | 1 | Field_1: CLIP Field_2: DJA20001- code: |
|||
| ? | 01010-81016 | BOLT | 1 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-31032 | WASHER | 1 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 08059-00515 | CLIP | 1 | Field_1: CLIP Field_2: DJA20001- code: |
|||
| ? | 201-54-83430 | SEAL | 1 | Field_1: SEAL Field_2: DJA20001- code: |
|||
| ? | 201-54-83420 | CUSHION | 1 | Field_1: CUSHION Field_2: DJA20001- code: |
|||
| ? | 7861-74-5100 | RELAY | 6 | Field_1: RELAY Field_2: DJA20001- code: |
|||
| ? | 01010-80612 | BOLT | 6 | Field_1: BOLT Field_2: DJA20001- code: |
|||
| ? | 01643-30623 | WASHER | 6 | Field_1: WASHER Field_2: DJA20001- code: |
|||
| ? | 8233-06-3350 | DIODE | 3 | Field_1: DIODE Field_2: DJA20001- code: |
