| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

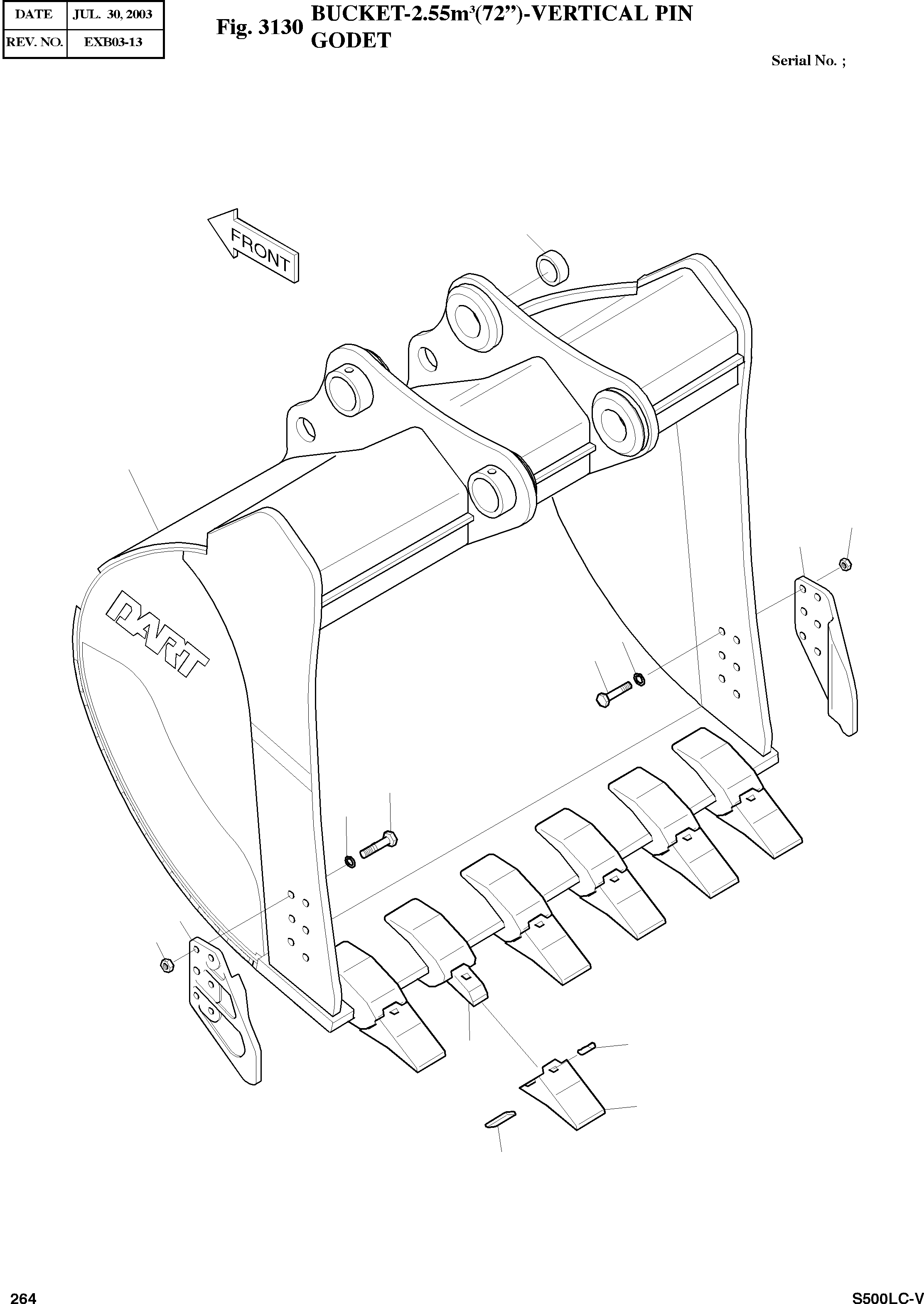

| ? | 704-00155 | BUCKET ASS'Y-2.55§© | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: GODET LNKOP: IP: |
|||
| ? | 704-00156 | BUCKET SUB ASS'Y | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: GODET LNKOP: IP: |
|||
| ? | - | . BUCKET;WELD | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: . GODET LNKOP: IP: |
|||
| ? | 2713-6082 | .. ADAPTER;TOOTH | 6 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: .. DENT DE ADAPTEUR LNKOP: IP: |
|||
| ? | 2110-1413 | .. BUSH | 4 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: .. DOUILLE LNKOP: IP: |
|||
| ? | 2713-9063 | . POINT;TOOTH | 6 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . DENT LNKOP: IP: |
|||
| ? | 2705-6037 | . PIN;LOCKING | 6 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . GOUPILLE DE BLOCAGE LNKOP: IP: |
|||
| ? | 2705-6038 | . RUBBER;LOCKING | 6 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . GOUPILLE LNKOP: IP: |
|||
| ? | 2713-1240 | CUTTER;SIDE(R.H) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUTEAU LATERAL LNKOP: IP: |
|||
| ? | 2713-1241 | CUTTER;SIDE(L.H) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUTEAU LATERAL LNKOP: IP: |
|||
| ? | S0575061 | BOLT M24X3.0X85 | 12 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | S4013333 | NUT M24X3.0 | 12 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: ECROU LNKOP: IP: |
|||
| ? | 2114-1831 | WASHER;HARDEN M24 | 12 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE ELASTIQUE LNKOP: IP: |
