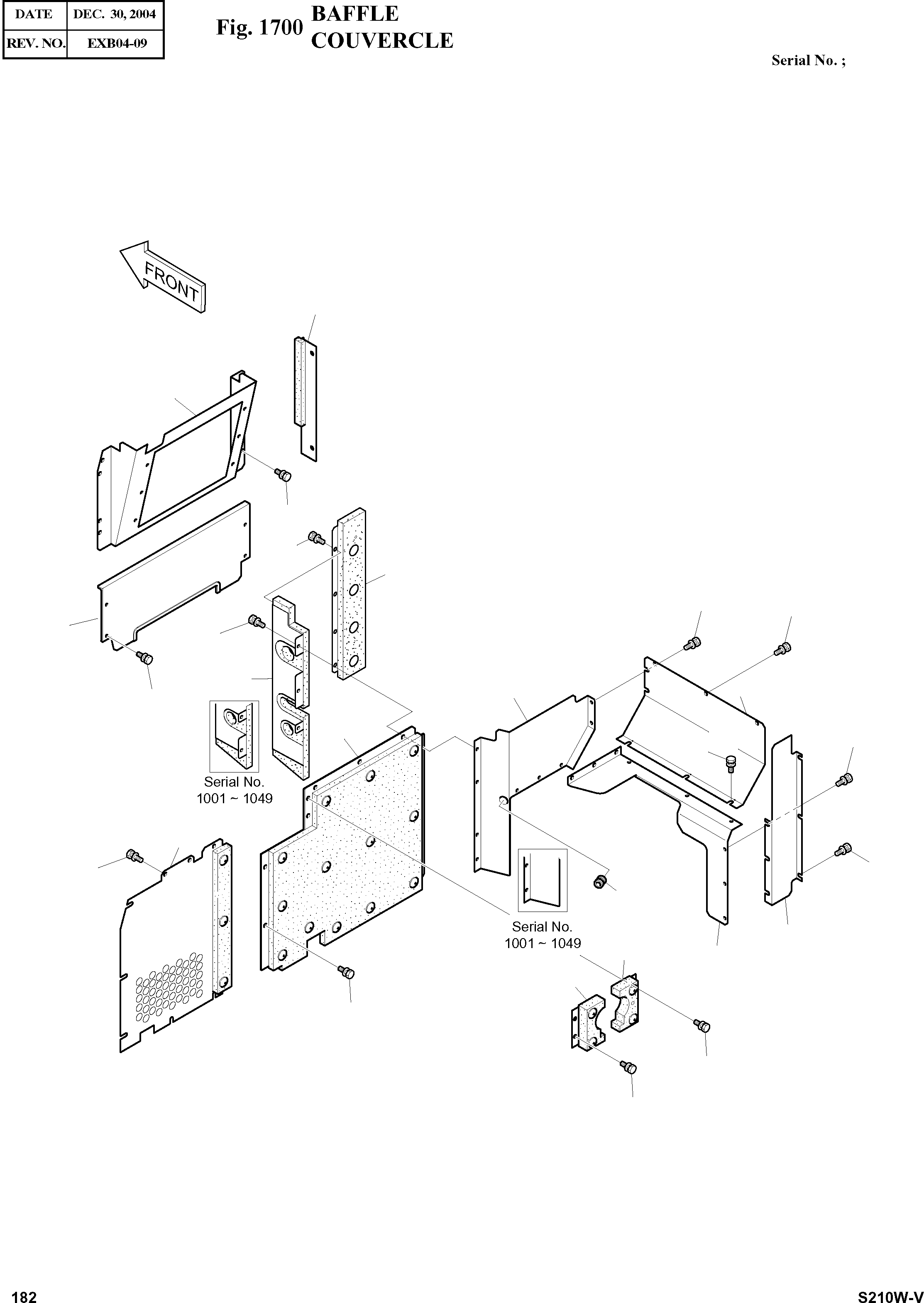

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 621-02029 | BAFFLE ASS'Y | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02030 | COVER;BAFFLE | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02031B | COVER;BAFFLE | 1 | SERIAL: 1001-1049 SERIAL_NO: 1001~1049 ICA: I REP_PNO: 621-02031C REP_QTY: 1 SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02031C | COVER;BAFFLE | 1 | SERIAL: 1050- SERIAL_NO: 1050~ ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02252 | COVER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02253 | COVER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02032B | COVER;BAFFLE | 1 | SERIAL: 1001-1049 SERIAL_NO: 1001~1049 ICA: I REP_PNO: 621-02032C REP_QTY: 1 SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02032C | COVER;BAFFLE | 1 | SERIAL: 1050- SERIAL_NO: 1050~ ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02033A | COVER;BAFFLE | 1 | SERIAL: 1001-1537 SERIAL_NO: 1001~1537 ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02033B | COVER;BAFFLE | 1 | SERIAL: 1538- SERIAL_NO: 1538~ ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02034A | COVER;BAFFLE | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02035A | COVER;BAFFLE | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 2120-2196D5 | BOLT;SET M10X1.5X20 | 56 | SERIAL: 1001-1049 SERIAL_NO: 1001~1049 ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | 2120-2196D5 | BOLT;SET M10X1.5X20 | 55 | SERIAL: 1050- SERIAL_NO: 1050~ ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | 2627-1101 | COVER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 2627-1102B | COVER;BAFFLE | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 2627-1103A | COVER;BAFFLE | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02036B | COVER;BAFFLE | 1 | SERIAL: 1001-1030 SERIAL_NO: 1001~1030 ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02036C | COVER;BAFFLE | 1 | SERIAL: 1031-1049 SERIAL_NO: 1031~1049 ICA: I REP_PNO: 621-02036E REP_QTY: 1 SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02036E | COVER;BAFFLE | 1 | SERIAL: 1050- SERIAL_NO: 1050~ ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 2160-1004D11 | BUSHING;RUBBER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: GARNISSAGE CAOUTCHOUC LNKOP: IP: |
|||
| ? | 621-02254A | COVER;BAFFLE | 1 | SERIAL: 1001-1030 SERIAL_NO: 1001~1030 ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
|||
| ? | 621-02254B | COVER;BAFFLE | 1 | SERIAL: 1031- SERIAL_NO: 1031~ ICA: REP_PNO: REP_QTY: SC: desc: COUVERCLE LNKOP: IP: |
