Содержание Other: DOOSAN-DAEWOO SOLAR 210W-V(S210w-v)

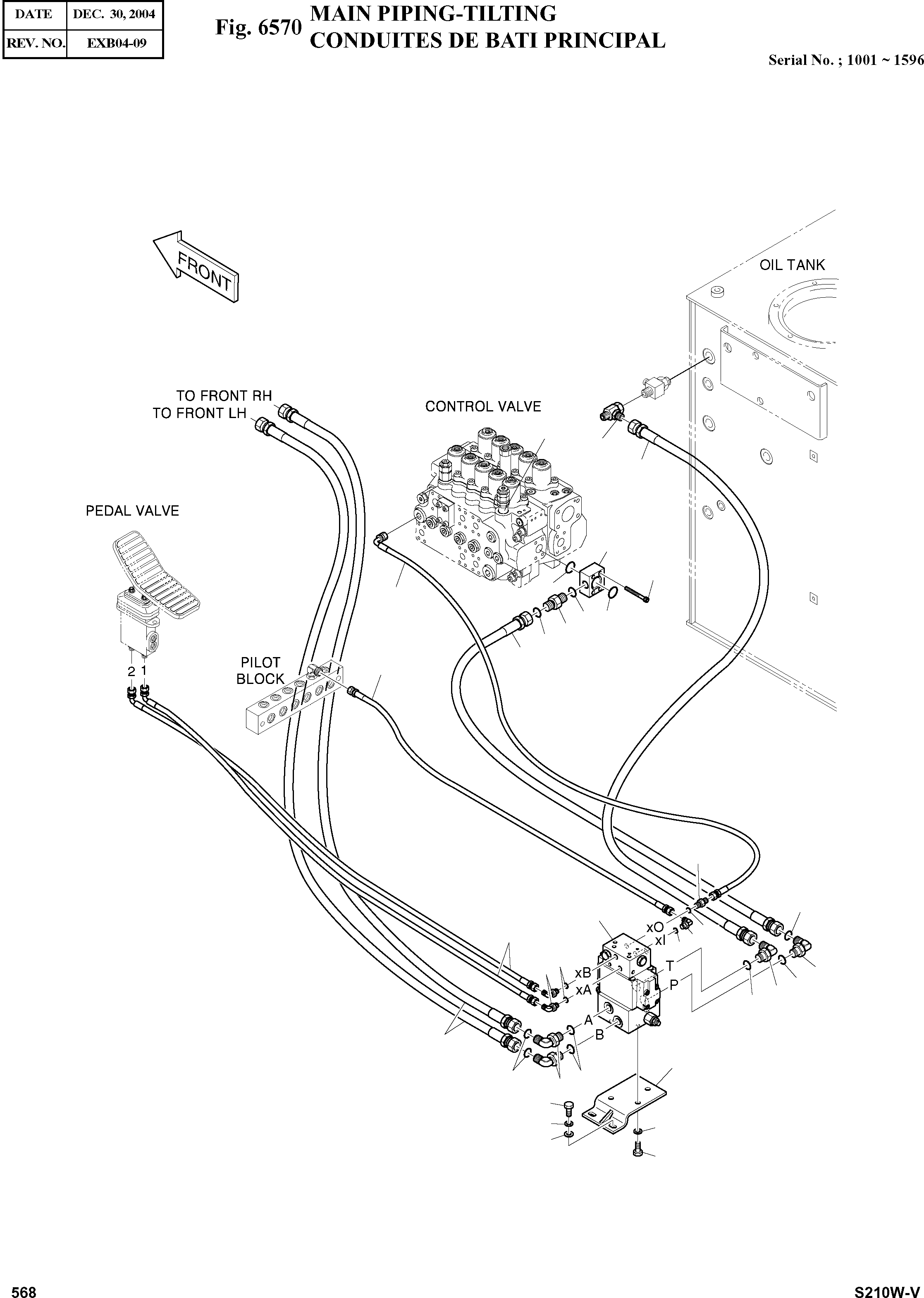

MAIN PIPING-TILTING(6570 : 6570)
Номер на схеме Каталожный номер Название Количество Детали
? 400-01153 MAIN PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE BATI PRINCIPAL
LNKOP:
IP:
? DS2011312 HOSE ORS1/2-1800L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES DE PILOTE
LNKOP:
IP:
? DS2053709 HOSE PF1/2-280L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES DE FLECHE
LNKOP:
IP:
? DS2011303 HOSE ORS1/2-4300L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D219 HOSE PF1/4-2100L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1045D124 HOSE PF1/4-2100L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D78 HOSE PF1/4-3200L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 420-00322 OPTION VALVE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VANNE
LNKOP:
IP:
? 423-00156A BLOCK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BLOC
LNKOP:
IP:
? 2180-1026D19 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S2213166 BOLT;SOCKET M10X1.5X75 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 195-02273 BRACKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2181-1702D2 ELBOW 2PFO1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-2815D3 ELBOW ORS1/2-PFO1/2 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? S8000181 O-RING 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8030081 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-4133D37 ADAPTER ORS1/2-PFO1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 181-00673D5 TEE;UNION 3PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 2181-1702D4 ELBOW 2PFO1/2 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? S8000111 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S0515253 BOLT M12X1.75X30 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102703 WASHER;SPRING M12 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2114-1058D30 WASHER 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 2424-1140 SPOOL;BC 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLONGEUR
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 210W-V(S210w-v) / MAIN PIPING-TILTING(6570 : 6570)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
