| Наименование | Страница | Код страницы |
|---|---|---|

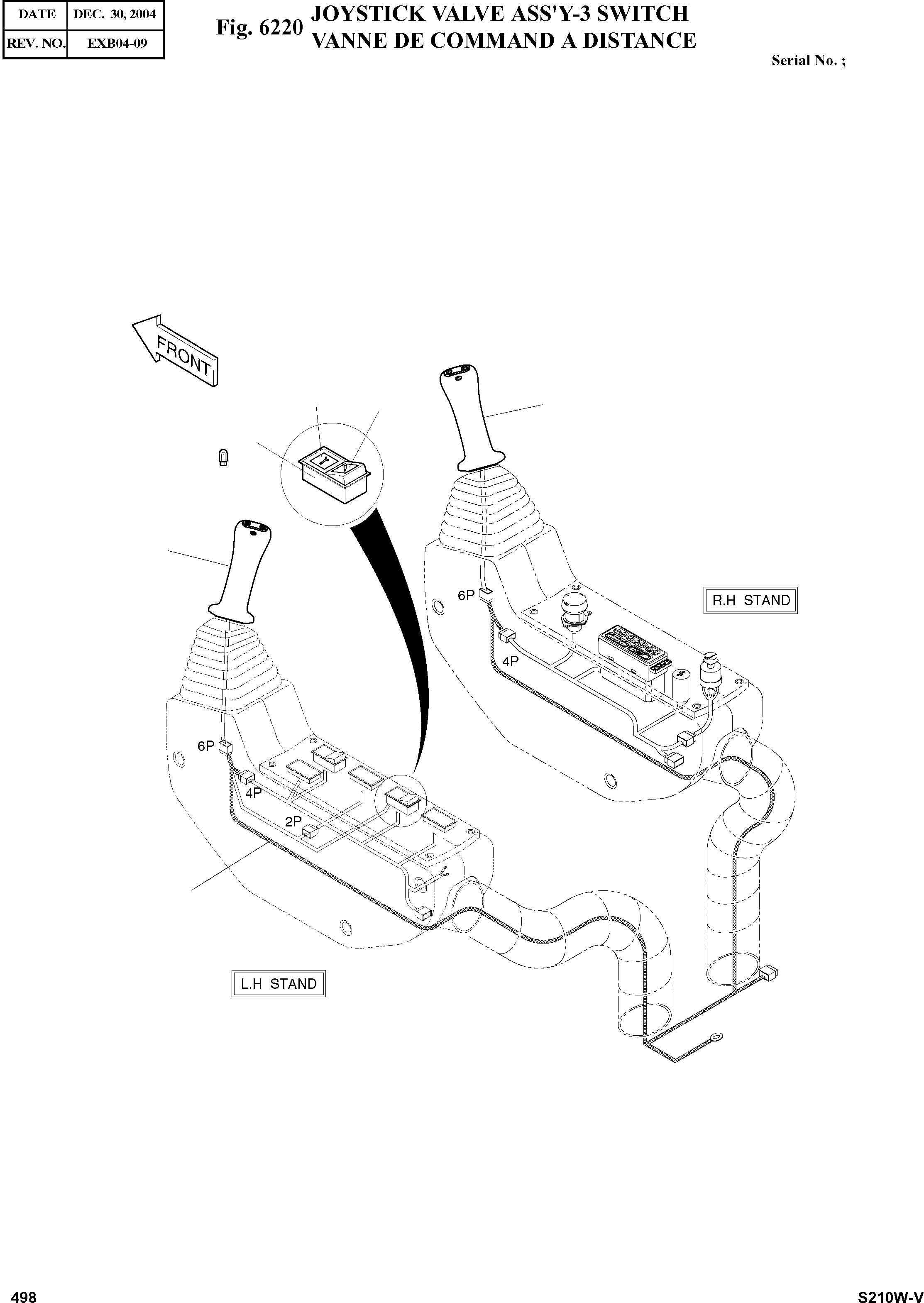

| REMOTE CONTROL VALVE-3 SWITCH | 4310 | 4310 |
| REMOTE CONTROL VALVE-3 SWITCH | 4310 | 4310 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 420-00348 | JOYSTICK VALVE ASS'Y 3-SWITCH | A/R | SERIAL: 1001-1596 SERIAL_NO: 1001~1596 ICA: REP_PNO: REP_QTY: SC: D desc: VANNE DE COMMAND A DISTANCE LNKOP: IP: |
|||
| ? | 420-00348A | JOYSTICK VALVE ASS'Y 3-SWITCH | A/R | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: D desc: VANNE DE COMMAND A DISTANCE LNKOP: IP: |
|||
| ? | 420-00344A | VALVE;JOYSTICK(L.H) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: VANNE LNKOP: IP: O |
4310 | ||
| ? | 420-00345A | VALVE;JOYSTICK(R.H) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: VANNE LNKOP: IP: O |
4310 | ||
| ? | 530-00105 | HARNESS | 1 | SERIAL: 1001-1596 SERIAL_NO: 1001~1596 ICA: REP_PNO: REP_QTY: SC: desc: FAISCEAU LNKOP: IP: |
|||
| ? | 530-00105B | HARNESS | 1 | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: desc: FAISCEAU LNKOP: IP: |
|||
| ? | 2549-9138 | SWITCH;SHEAR/BREAKER | 1 | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: desc: INTERRUPTEUR LNKOP: IP: |
|||
| ? | K9000353 | . LAMP;PILOT | 1 | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: desc: . LAMPE LNKOP: IP: |
|||
| ? | 2190-2036D1 | INSERT;BREAKER | 1 | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: desc: INSERTION LNKOP: IP: |
|||
| ? | K1000268 | PLATE;NAME(SHEAR) | 1 | SERIAL: 1597- SERIAL_NO: 1597~ ICA: REP_PNO: REP_QTY: SC: desc: PLAQUE D'IDENTIFICATION LNKOP: IP: |
