Содержание Other: DOOSAN-DAEWOO SOLAR 160W-V(S160W-V)

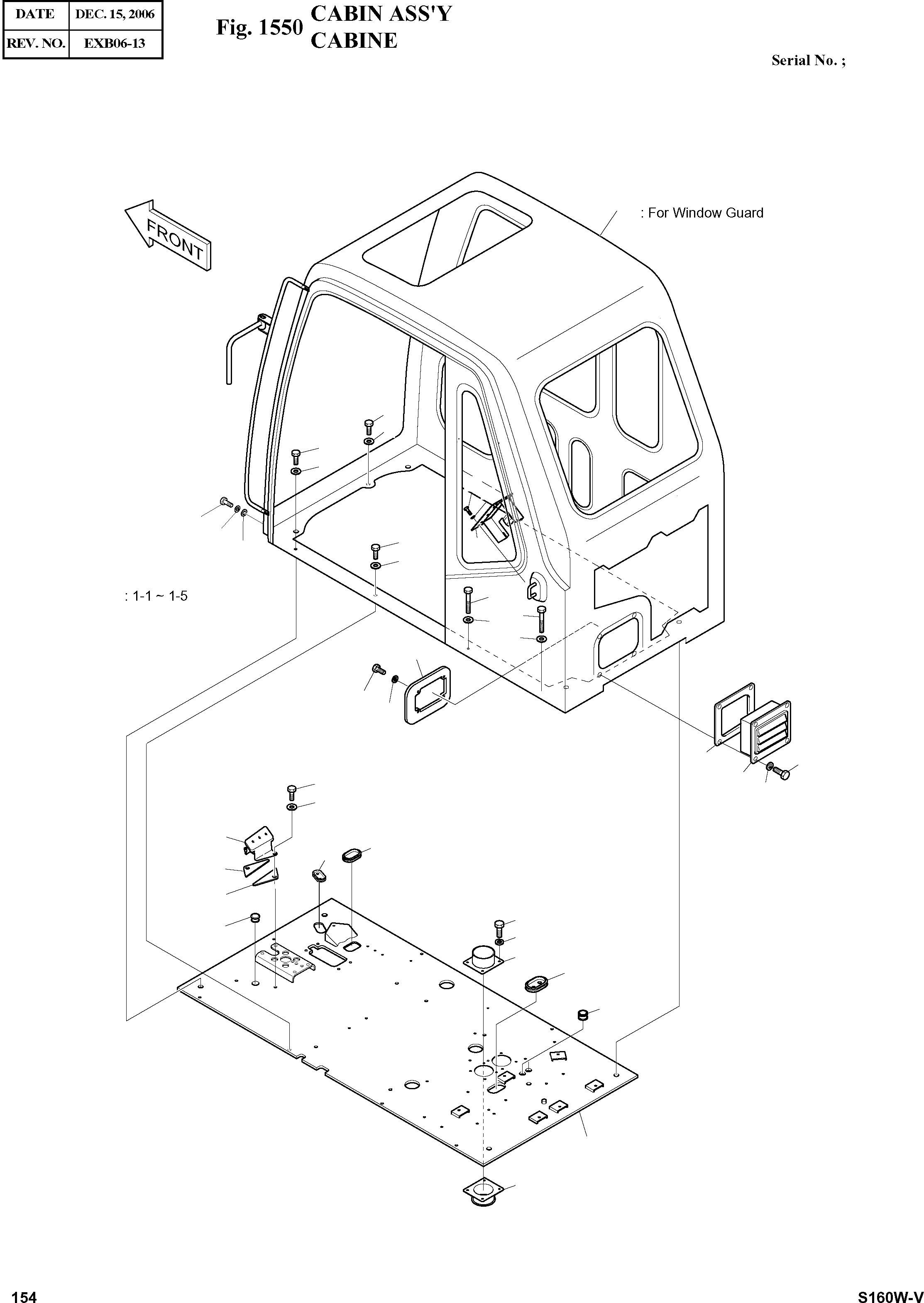

CABIN ASS'Y(1550 : 1550)
Номер на схеме Каталожный номер Название Количество Детали
? 622-00235B CABIN ASS'Y A/R
SERIAL: 1001-2024
SERIAL_NO: 1001~2024
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CABINE
LNKOP:
IP:
? 622-00235E CABIN ASS'Y A/R
SERIAL: 2025-2083
SERIAL_NO: 2025~2083
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CABINE
LNKOP:
IP:
? 622-00235G CABIN ASS'Y A/R
SERIAL: 2084-2994
SERIAL_NO: 2084~2994
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CABINE
LNKOP:
IP:
? 622-00235H CABIN ASS'Y A/R
SERIAL: 2995-3198
SERIAL_NO: 2995~3198
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CABINE
LNKOP:
IP:
? 622-00235K CABIN ASS'Y A/R
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CABINE
LNKOP:
IP:
? 622-00299 CABIN ASS'Y 1
SERIAL: 1001-2024
SERIAL_NO: 1001~2024
ICA: I
REP_PNO: 622-00299A
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00299A CABIN ASS'Y 1
SERIAL: 2025-2083
SERIAL_NO: 2025~2083
ICA: I
REP_PNO: 622-00299B
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00299B CABIN ASS'Y 1
SERIAL: 2084-2994
SERIAL_NO: 2084~2994
ICA: I
REP_PNO: 622-00299C
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00299C CABIN ASS'Y 1
SERIAL: 2995-3198
SERIAL_NO: 2995~3198
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CABINE
LNKOP:
IP:
? 622-00299G CABIN ASS'Y 1
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CABINE
LNKOP:
IP:
? 622-00210A . CABIN ASS'Y 1
SERIAL: 1001-2024
SERIAL_NO: 1001~2024
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CABINE
LNKOP:
IP:
? 622-00210B . CABIN ASS'Y 1
SERIAL: 2025-2083
SERIAL_NO: 2025~2083
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CABINE
LNKOP:
IP:
? 622-00210C . CABIN ASS'Y 1
SERIAL: 2084-2994
SERIAL_NO: 2084~2994
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CABINE
LNKOP:
IP:
? 622-00210E . CABIN ASS'Y 1
SERIAL: 2995-3198
SERIAL_NO: 2995~3198
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CABINE
LNKOP:
IP:
? 622-00210H . CABIN ASS'Y 1
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CABINE
LNKOP:
IP:
? 2120-2166D4 . BOLT M10X1.5X20 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . BOULON A 6 PANS
LNKOP:
IP:
? 2114-2031D5 . WASHER;SPRING M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . RONDELLE ELASTIQUE
LNKOP:
IP:
? 2114-1898D1 . WASHER;PLAIN M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . RONDELLE
LNKOP:
IP:
? 621-02185A PLATE;FLOOR 1
SERIAL: 1001-3720
SERIAL_NO: 1001~3720
ICA: I
REP_PNO: 621-02185C
REP_QTY: 1
SC:
desc: PLAQUE
LNKOP:
IP:
? 621-02185C PLATE;FLOOR 1
SERIAL: 3721-
SERIAL_NO: 3721~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 2114-1898D1 WASHER 9
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 2120-2166D2 BOLT M10X1.5X25 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 160-00030 BOOT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GAINE DE PROTECTION
LNKOP:
IP:
? 195-01765B BRACKET 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2120-2166D3 BOLT M10X1.5X65 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 2160-1308 BUSHING;RUBBER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE EN CAOUTCHOUC
LNKOP:
IP:
? 2160-1004D48 BUSHING;RUBBER 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE EN CAOUTCHOUC
LNKOP:
IP:
? 195-01784B BRACKET;AUDIO CASSETTE 1
SERIAL: 1001-2063
SERIAL_NO: 1001~2063
ICA: I
REP_PNO: 195-01784C
REP_QTY: 1
SC:
desc: SUPPORT
LNKOP:
IP:
? 195-01784C BRACKET;AUDIO CASSETTE 1
SERIAL: 2064-
SERIAL_NO: 2064~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? S0508853 BOLT M8X1.25X20 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 2197-1704A BRACKET;FOOT REST(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? S5010513 WASHER;PLAIN 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE PLATE
LNKOP:
IP:
? 2160-1313 BUSHING;RUBBER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE EN CAOUTCHOUC
LNKOP:
IP:
? 2160-1312 BUSHING;RUBBER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE EN CAOUTCHOUC
LNKOP:
IP:
? 161-00329 RUBBER;DAMPER(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 161-00330 RUBBER;DAMPER(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 621-01160 COVER;FRESH AIR DUCT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? 2120-2166D19 BOLT M6X1.0X12 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 2161-2317 RUBBER;PLATE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 621-01159 PLATE;COVER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 2120-2166D6 BOLT M6X1.0X16 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 2114-1898D3 WASHER M6 16
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 2161-2487 BUSHING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE EN CAOUTCHOUC
LNKOP:
IP:
? 622-00310 CABIN ASS'Y-OPT. 1
SERIAL: 1001-2024
SERIAL_NO: 1001~2024
ICA: I
REP_PNO: 622-00310A
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00310A CABIN ASS'Y-OPT. 1
SERIAL: 2025-2994
SERIAL_NO: 2025~2994
ICA: I
REP_PNO: 622-00310C
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00310C CABIN ASS'Y-OPT. 1
SERIAL: 2995-3198
SERIAL_NO: 2995~3198
ICA: I
REP_PNO: 622-00310E
REP_QTY: 1
SC:
desc: CABINE
LNKOP:
IP:
? 622-00310E CABIN ASS'Y-OPT. 1
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CABINE
LNKOP:
IP:
