Содержание Other: DOOSAN-DAEWOO SOLAR 160W-V(S160W-V)

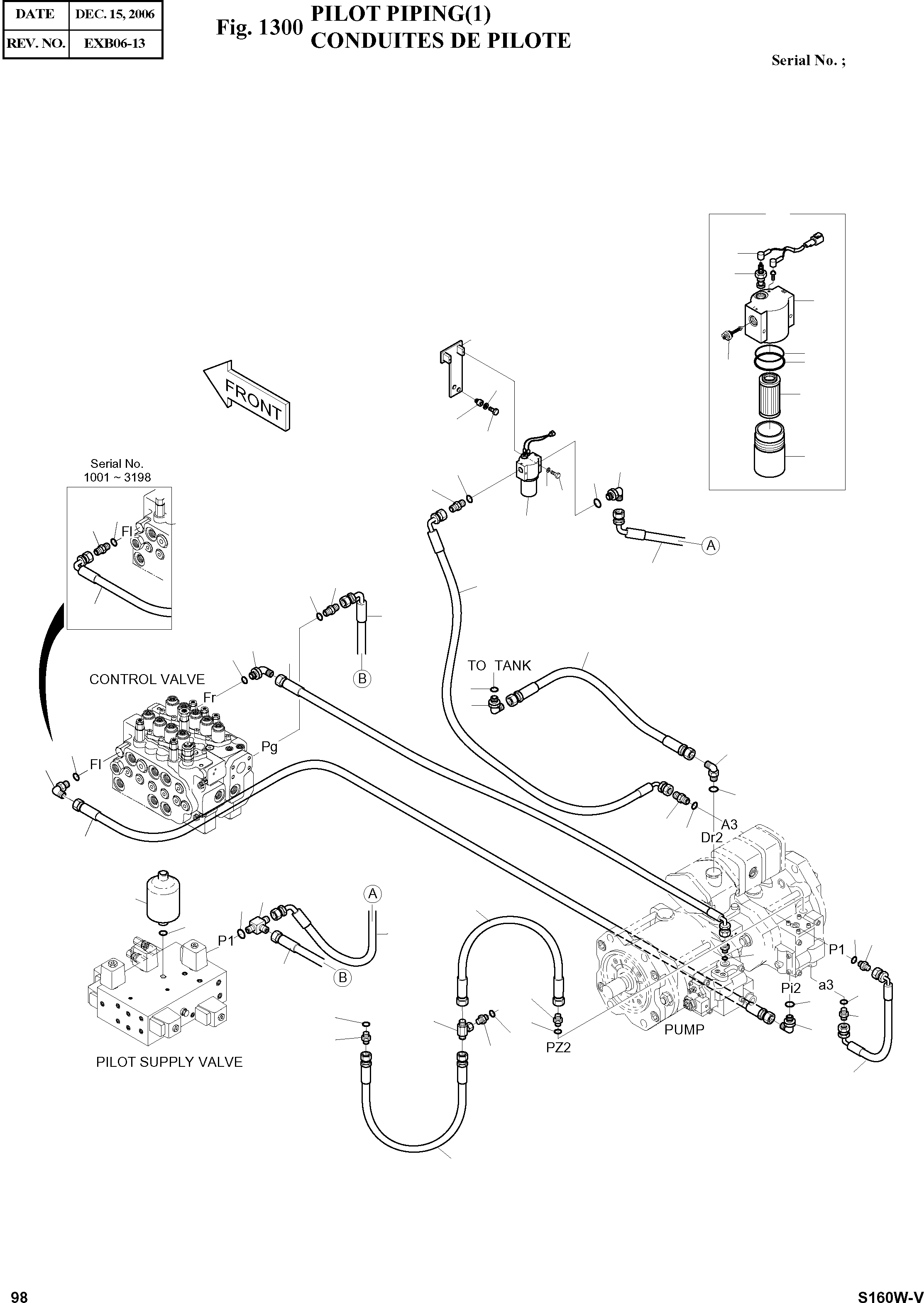

PILOT PIPING(1)(1300 : 1300)
Номер на схеме Каталожный номер Название Количество Детали
? 400-01165A PILOT PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE PILOTE
LNKOP:
IP:
? 2471-1153 FILTER;PILOT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FILTRE
LNKOP:
IP:
? - . HEAD 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . CULLASSE
LNKOP:
IP:
? 2472-7003 . CASE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . CARTER
LNKOP:
IP:
? 2471-1154 . ELEMENT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . ELEMENT
LNKOP:
IP:
? 2426-1237 . BYPASS VALVE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . VANNE
LNKOP:
IP:
? 2471-1155 . INDICATOR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . INDICATEUR
LNKOP:
IP:
? Y-3738-05 . RING;BACK-UP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . BAGUE ANTIEXTRUSION
LNKOP:
IP:
? Y-3738-04 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 2530-1735 . HARNESS;PILOT FILTER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . HARNAIS
LNKOP:
IP:
? S0553753 BOLT M6X1.0X55 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5102303 WASHER;SPRING M6 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2181-1702D1 ELBOW PFO3/4-PF3/4 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? S8000181 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000241 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000141 O-RING 3/8 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000111 O-RING 1/4 10
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 8
SERIAL: 1001-3198
SERIAL_NO: 1001~3198
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 7
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2460-9054 ACCUMULATOR 0.32L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ACCUMULATEUR
LNKOP:
IP:
? 2181-1126D6 ADAPTER PFO1/2-PF1/2 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-1702D4 ELBOW PFO1/4-PF1/4 2
SERIAL: 1001-3198
SERIAL_NO: 1001~3198
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-1702D4 ELBOW PFO1/4-PF1/4 3
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-1702D2 ELBOW PFO1/2-PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2184-1061D268 HOSE PF1/4-550L 1
SERIAL: 1001-3198
SERIAL_NO: 1001~3198
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1061D253 HOSE PF1/4-500L 1
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1096D147 HOSE PF1/2-480L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D79 HOSE PF1/4-2000L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1026D164 HOSE PF3/4-850L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D148 HOSE PF1/4-1450L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D62 HOSE PF1/4-1850L 1
SERIAL: 1001-3198
SERIAL_NO: 1001~3198
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1045D105 HOSE PF1/4-1900L 1
SERIAL: 3199-
SERIAL_NO: 3199~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2059384 HOSE PF1/2-2170L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2181-1951D19 TEE PFO1/2-PF1/2-PF1/4 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 195-01268 PLATE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? S0512253 BOLT M10X1.5X30 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 2114-1058D10 WASHER 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 198-00016 RUBBER 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 2184-1045D112 HOSE PF1/4-510L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2181-4125 TEE PF1/4-PF1/4-PF1/4 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
