Содержание Other: DOOSAN-DAEWOO SOLAR 160W-V(S160W-V)

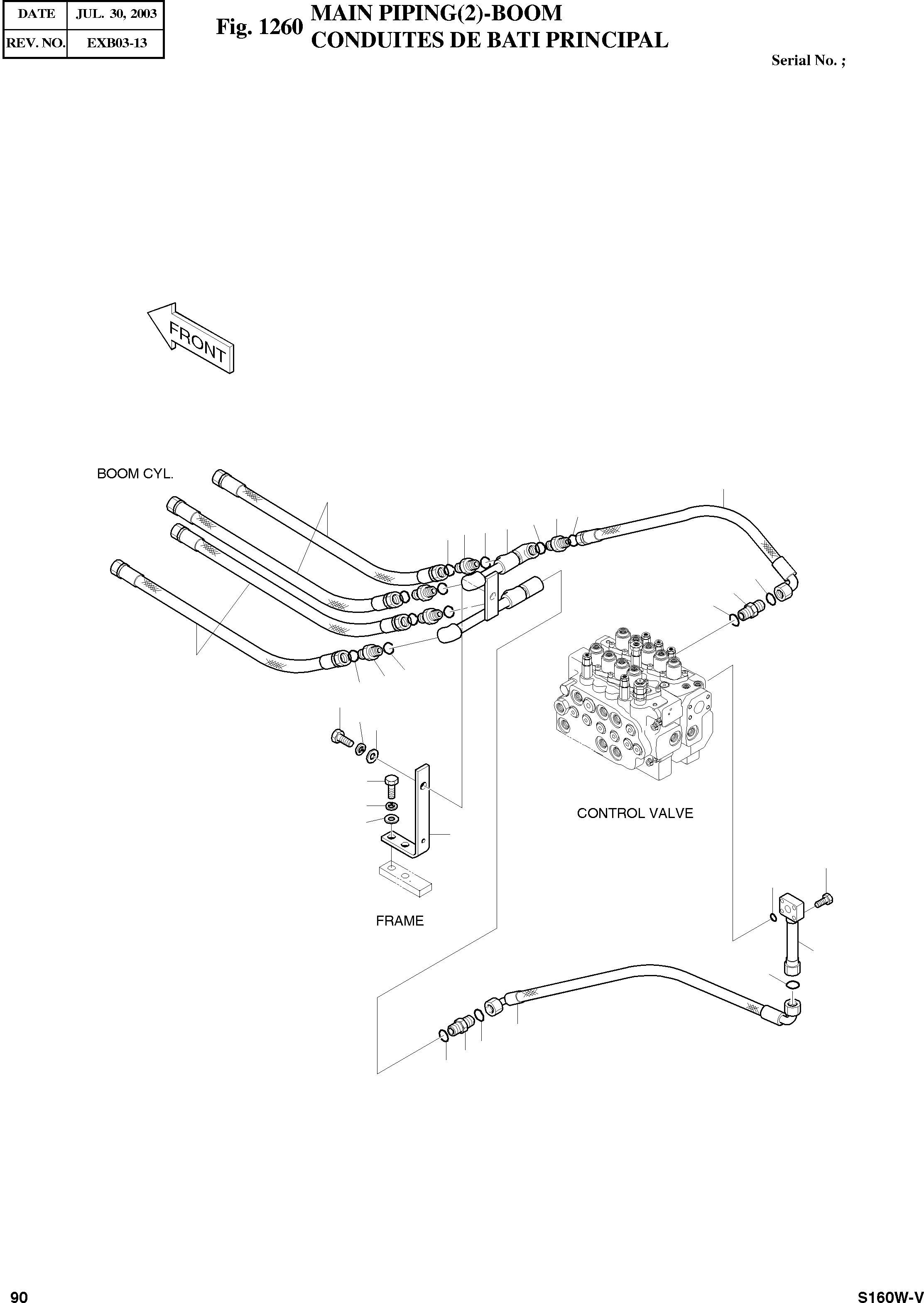

MAIN PIPING(2)-BOOM(1260 : 1260)
Номер на схеме Каталожный номер Название Количество Детали
? 400-01166 MAIN PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CANALISATIONS PRINCIPALES
LNKOP:
IP:
? 2181-4133D3 ADAPTER PFO1/2-ORS1/2 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? S8000181 O-RING 1/2 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2140-1237B PIPE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 195-01559 BRACKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? S0515353 BOLT M12X1.75X35 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5102703 WASHER;SPRING M12 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010713 WASHER M12 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? S0560753 BOLT M12X1.75X50 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S2212766 BOLT;SOCKET M10X1.5X55 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 2184-1197D73 HOSE ORS3/4-960L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2181-2627D1 ADAPTER PFO3/4-ORS3/4 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? S8030121 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000231 O-RING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8030081 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2140-1242A PIPE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2184-1250D38 HOSE(BOOM)PF3/4-950L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2180-1026D19 O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? DS2011287 HOSE(BOOM)PF1/2-600L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2011288 HOSE(BOOM)PF1/2-630L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
