Содержание Other: DOOSAN-DAEWOO SOLAR 160W-V(S160W-V)

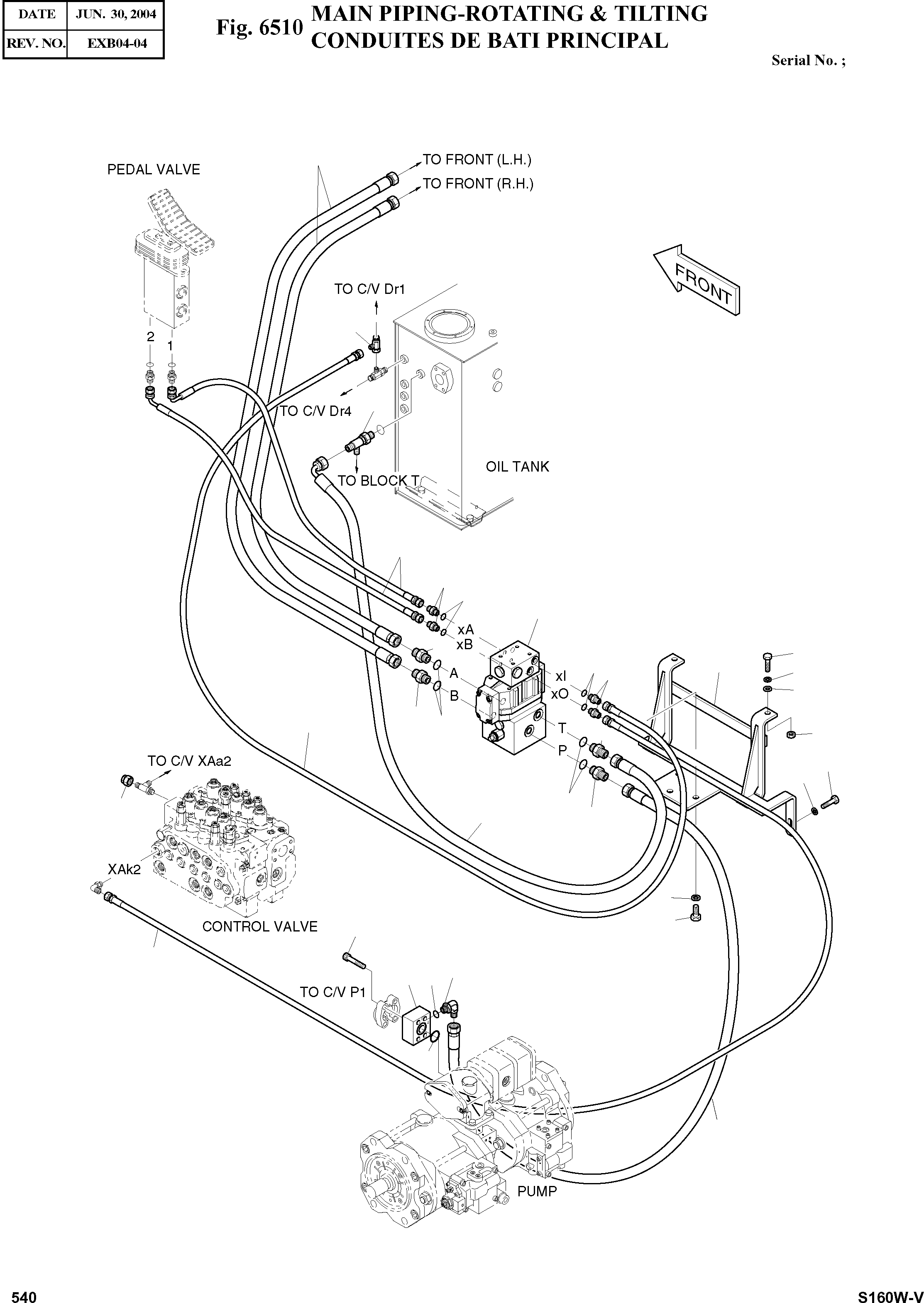

MAIN PIPING-ROTATING & TILTING(6510 : 6510)
Наименование Страница Код страницы
INPUT SHAFT-TRANSMISSION 4680 4680

Номер на схеме Каталожный номер Название Количество Детали
? 400-00675A MAIN PIPING-ROTATION & TILTING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE BATI PRINCIPAL
LNKOP:
IP:
? DS2011304 HOSE PF1/2-2700L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2011291 HOSE PF1/2-1200L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2055663 HOSE PF1/2-2200L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D186 HOSE PF1/4-3900L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1046D180 HOSE PF1/4-2700L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1045D152 HOSE PF1/4-2000L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 420-00322A VAVLE;OPTION 1
SERIAL: 1001-1006
SERIAL_NO: 1001~1006
ICA: I
REP_PNO: 420-00322C
REP_QTY: 1
SC:
desc: VANNE
LNKOP:
IP:
? 420-00322C VAVLE;OPTION 1
SERIAL: 1007-
SERIAL_NO: 1007~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VANNE
LNKOP:
IP: O
 4680
? 423-00122 BLOCK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BLOC
LNKOP:
IP:
? 195-01835A BRACKET;VALVE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2181-1126D6 ADAPTER PFO1/2-PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-1951D5 TEE PFO1/2-2PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? S8000181 O-RING 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? S8000111 O-RING 1/4 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 181-00673D1 TEE;UNION PFU1/4-2PF1/4 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? S0512453 BOLT M10X1.5X40 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5100603 WASHER;SPRING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010613 WASHER;PLAIN 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE PLATE
LNKOP:
IP:
? S4012633 NUT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU
LNKOP:
IP:
? S0515256 BOLT M12X1.75X30 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5100703 WASHER;SPRING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S2213066 BOLT;SOCKET M10X1.5X70 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 2180-1026D2 O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-2820D1 PLUG 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? 2181-4133D3 ADAPTER PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-4133D37 ADAPTER PF1/2 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-2815D3 ELBOW PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
