| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

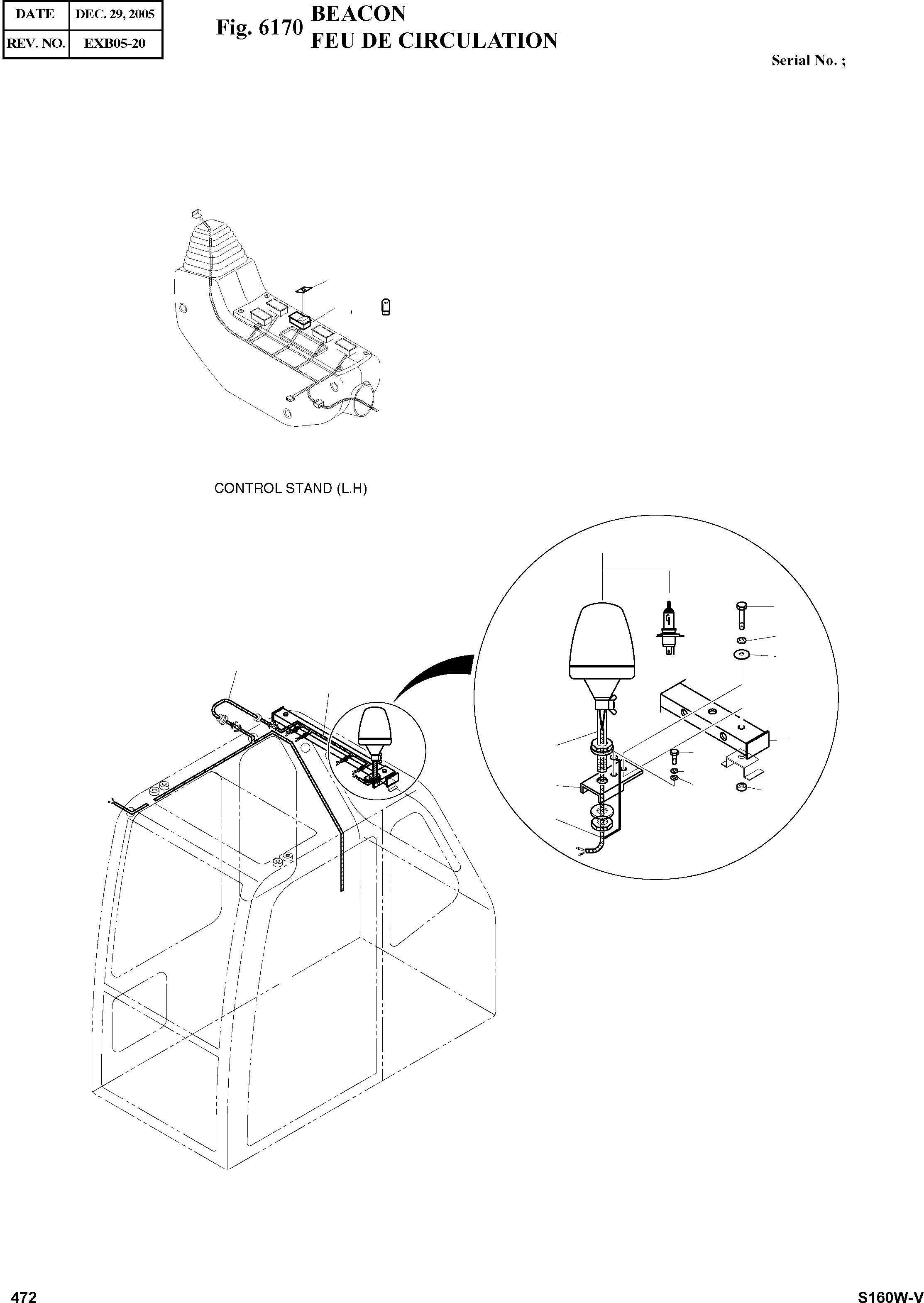

| ? | 534-00091F4 | BEACON ASSY(OPT) | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: FEU DE CIRCULATION LNKOP: IP: |
|||
| ? | 2549-9098 | SWITCH;ROCKER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: INTERRUPTEUR LNKOP: IP: |
|||
| ? | K9000353 | . LAMP;PILOT | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . LAMPE LNKOP: IP: |
|||
| ? | 2190-2036D10 | INSERT;ROTATING BEACON | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: INSERTION LNKOP: IP: |
|||
| ? | 195-01694 | BRACKET;CABIN LAMP(REAR) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: SUPPORT LNKOP: IP: |
|||
| ? | S0556453 | BOLT M8X1.25X55 | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | S5102503 | WASHER;SRPING M8 | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE ELASTIQUE LNKOP: IP: |
|||
| ? | 2114-1898D8 | WASHER | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE LNKOP: IP: |
|||
| ? | S4012533 | NUT | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: ECROU LNKOP: IP: |
|||
| ? | 534-00062 | LAMP ASSY;ROTATING BEACON | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: LAMPE LNKOP: IP: |
|||
| ? | 515-00013 | . BULB | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . AMPOULE LNKOP: IP: |
|||
| ? | 160-00032 | BUSH;BEACON MOUNTING | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: DOUILLE LNKOP: IP: |
|||
| ? | 195-01692 | PLATE;LAMP BRACKET | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: PLAQUE LNKOP: IP: |
|||
| ? | 530-00237 | HARNESS;REAR CABIN LAMP(OPT) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: HARNAIS LNKOP: IP: |
|||
| ? | 530-00248 | HARNESS;REAR LAMP JOINT | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: HARNAIS LNKOP: IP: |
|||
| ? | 530-00238A | HARNESS;BEACON & REAR CABIN LAMP(OPT) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: HARNAIS LNKOP: IP: |
|||
| ? | S0504453 | BOLT | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | S5102303 | WASHER;SPRING | 3 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE ELASTIQUE LNKOP: IP: |
|||
| ? | S5010313 | WASHER;PLAIN | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE PLATE LNKOP: IP: |
