Содержание Other: DOOSAN-DAEWOO SOLAR 160W-V(S160W-V)
GEAR SHIFT SENSOR-TRANSMISSION(4760 : 4760)
Номер на схеме Каталожный номер Название Количество Детали
? 4143 342 089 HOUSING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: K
desc: CARTER
LNKOP:
IP:
? 0501 320 242 GASKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT
LNKOP:
IP:
? 0732 042 514 SPRING;COMPR. 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RESSORT PRESS.
LNKOP:
IP:
? 0736 304 110 SCREW;PLUG 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS FERMETURE
LNKOP:
IP:
? 0634 303 266 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0636 302 031 SCREW;PLUG 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS FERMETURE
LNKOP:
IP:
? 0634 801 015 RING;SEALING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE D'ETANCHEITE
LNKOP:
IP:
? 4143 342 067 PISTON 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PISTON
LNKOP:
IP:
? 0501 210 906 VALVE;PRESS.REL. 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SOUP.LIM.PRES.
LNKOP:
IP:
? - . VALVE;PRESS.REL. 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . SOUP.LIM.PRES.
LNKOP:
IP:
? 0634 303 194 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0636 313 328 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 4143 242 008 VALVE;CHECK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SOUP.ANTI-RET. CPL.
LNKOP:
IP:
? - . VALVE;CHECK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . SOUP.ANTI-RET. CPL.
LNKOP:
IP:
? 0634 306 175 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0634 306 169 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 4143 242 009 VALVE;CHECK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SOUP.ANTI-RET. CPL.
LNKOP:
IP:
? - . VALVE;CHECK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . SOUP.ANTI-RET. CPL.
LNKOP:
IP:
? 0634 306 175 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0634 306 169 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0634 303 280 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 4143 242 010 VALVE;CHECK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SOUP.ANTI-RET. CPL.
LNKOP:
IP:
? 0634 306 175 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0634 306 169 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? 0635 303 036 SLEEVE;NEEDLE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE A AIG.
LNKOP:
IP:
? 0501 209 267 ROTOR SET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JEU DE ROTORS
LNKOP:
IP:
? 0501 210 564 FILTER;SCREEN 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: K
desc: FILTRE-TAMIS
LNKOP:
IP:
? 0635 460 002 BALL 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BILLE
LNKOP:
IP:
? 0632 041 108 SPRING;COMP 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RESSORT PRESS.
LNKOP:
IP:
? 0630 501 006 RING;RETAINING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONC D'ARRET
LNKOP:
IP:
? 0636 015 049 SCREW;HEX. 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS HEXAGONALE
LNKOP:
IP:
? 4143 342 092 GASKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: K
desc: JOINT
LNKOP:
IP:
? 4143 342 091 COVER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: K
desc: COUVERCLE
LNKOP:
IP:
? 0634 306 299 O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 0636 101 028 SCREW;CAP M8X1.25X22 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS TETE CYL.
LNKOP:
IP:
? 0636 015 492 SCREW;HEX. M8X1.25X30 23
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS HEXAGONALE
LNKOP:
IP:
? 0636 101 335 SCREW;CAP M8X1.25X80 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VIS TETE CYL.
LNKOP:
IP:
? 0770 032 995 WASHER M8 26
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 4143 342 068 SHAFT;PUMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ARBRE DE POMPE
LNKOP:
IP:
? 4143 342 066 SFAFT;PUMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ARBRE DE POMPE
LNKOP:
IP:
? 4143 342 065 COVER;PUMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE POMPE
LNKOP:
IP:
? 0750 116 083 BEARING;BALL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ROULEM. A BILLES
LNKOP:
IP:
? 0630 502 013 RING;RETAINING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONC D'ARRET
LNKOP:
IP:
? 0637 842 509 SOCKET 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE
LNKOP:
IP:
? 0634 306 523 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 4143 342 089K HOUSING ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CARTER
LNKOP:
IP:

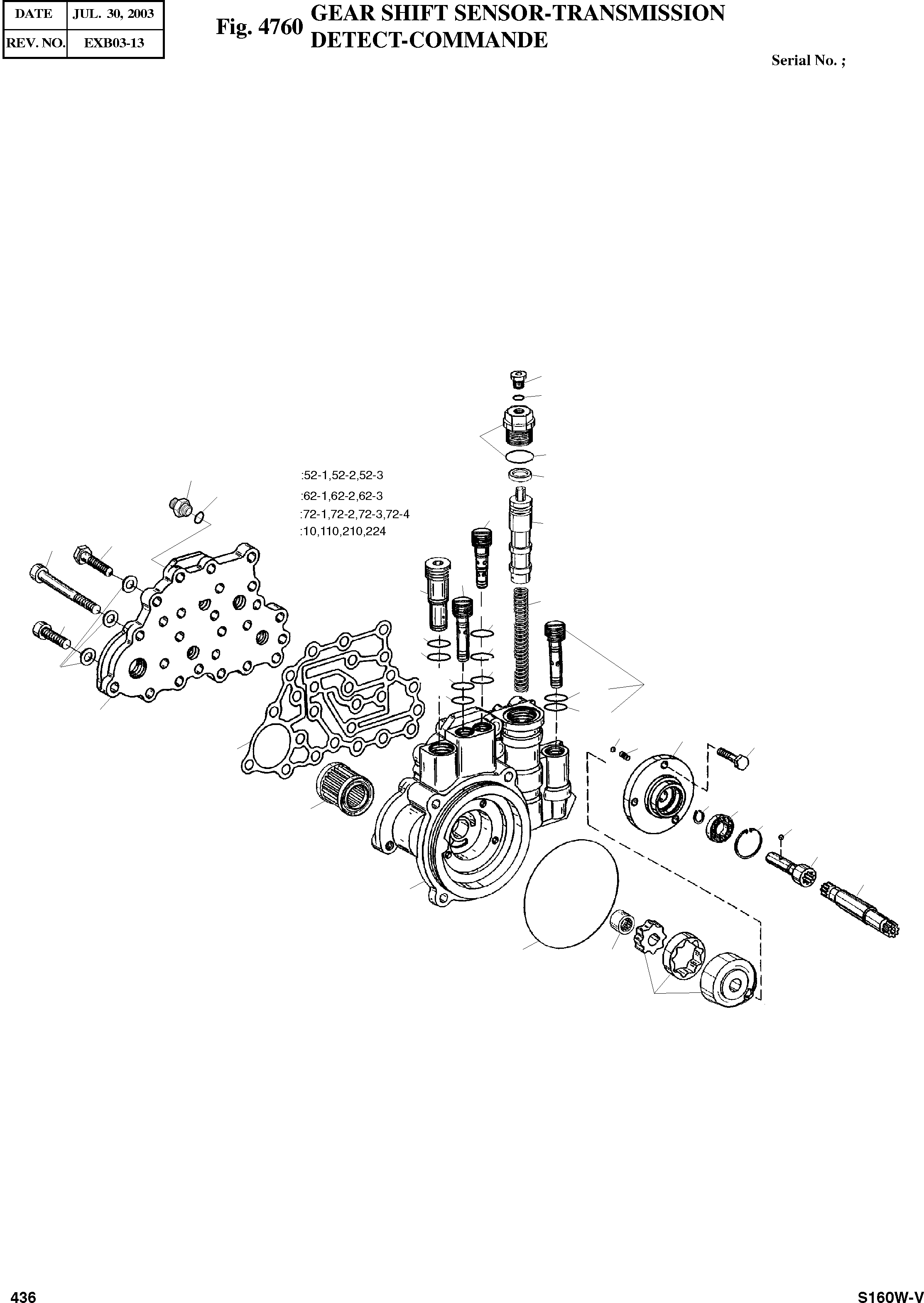

Other: DOOSAN-DAEWOO / SOLAR 160W-V(S160W-V) / GEAR SHIFT SENSOR-TRANSMISSION(4760 : 4760)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
