Содержание Other: DOOSAN-DAEWOO SOLAR 015PLUS (S/N. 20001 ~ )(S015P-C)

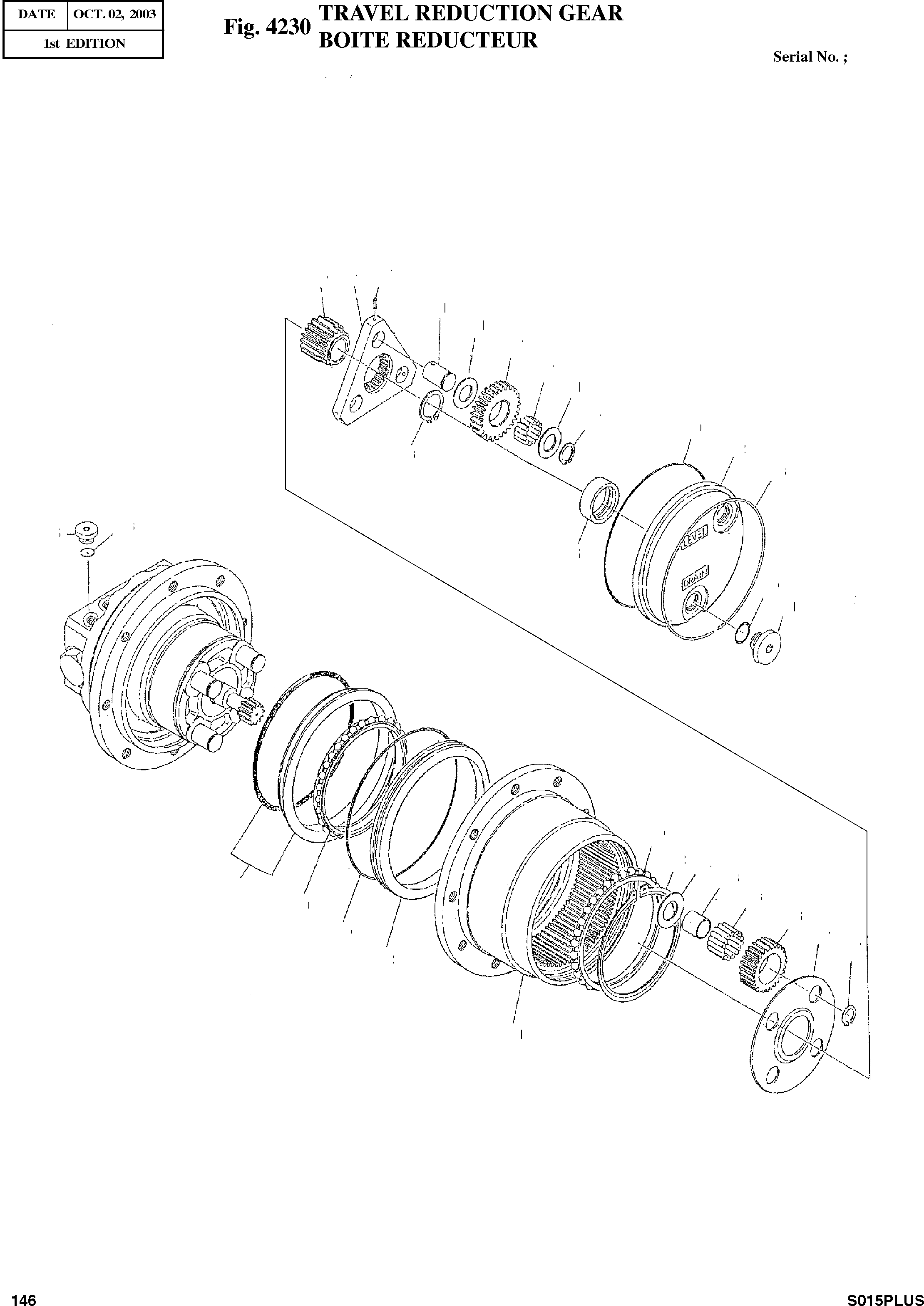

TRAVEL REDUCTION GEAR(4230 : 4230)
Номер на схеме Каталожный номер Название Количество Детали
? 401-00422 TRAVEL DEVICE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ENSEMBLE MOTEUR
LNKOP:
IP:
? 2.401-00059 TRAVEL REDUCTION GEAR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: BOITE REDUCTEUR
LNKOP:
IP:
? 2.230-00001 CARRIER 2 SUB ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PORTEUR
LNKOP:
IP:
? . CARRIER 2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . PORTEUR
LNKOP:
IP:
? . GEAR;B2 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . PIGNON
LNKOP:
IP:
? . GEAR;S1 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . PIGNON
LNKOP:
IP:
? . PIN;B2 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . GOUJON
LNKOP:
IP:
? . NEEDLE 39
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . GRAISSEUR
LNKOP:
IP:
? . WASHER;THRUST 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . RONDELLE
LNKOP:
IP:
? . RING;SNAP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . BAGUE D'ETANCHEITE
LNKOP:
IP:
? . PIN;SPRING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . GOUJON
LNKOP:
IP:
? . RING;SNAP 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: .
LNKOP:
IP:
? 2.402-00025 BODY 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CARTER
LNKOP:
IP:
? 2.430-00172 COVER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? 2.404-00005 GEAR;B1 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PIGNON
LNKOP:
IP:
? 2.180-01042 RING;SEAL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE
LNKOP:
IP:
? 2.115-00375 RING;SNAP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE D'ARRET
LNKOP:
IP:
? 2.412-00286 PLATE;THRUST 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 2.109-00164 RING;SIDE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE
LNKOP:
IP:
? 2.115-00329 NEEDLE 60
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: AIGUILLE
LNKOP:
IP:
? 2.427-00016 SEAT;FLOATING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RESSORT
LNKOP:
IP:
? 2.109-00057 BEARING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PALIER
LNKOP:
IP:
? 2.115-00544 RING;SNAP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE D'ARRET
LNKOP:
IP:
? 2.181-00196 PLUG 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? 2.114-01147 WASHER;THRUST 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 2181-1890D2 PLUG 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? 2.115-00374 RING;SNAP 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE D'ARRET
LNKOP:
IP:
? 2.115-00105 RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE
LNKOP:
IP:
? 2.180-01234 SEAL KIT;T/REDUCTION GEAR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: KIT D'ETANCHEITE
LNKOP:
IP:
? PPS-W-3X12 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? FRP-1464-37 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? GHC-1-2-1185 . O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
? . O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
IP:
