Содержание Other: DOOSAN-DAEWOO SOLAR 015PLUS (S/N. 20001 ~ )(S015P-C)

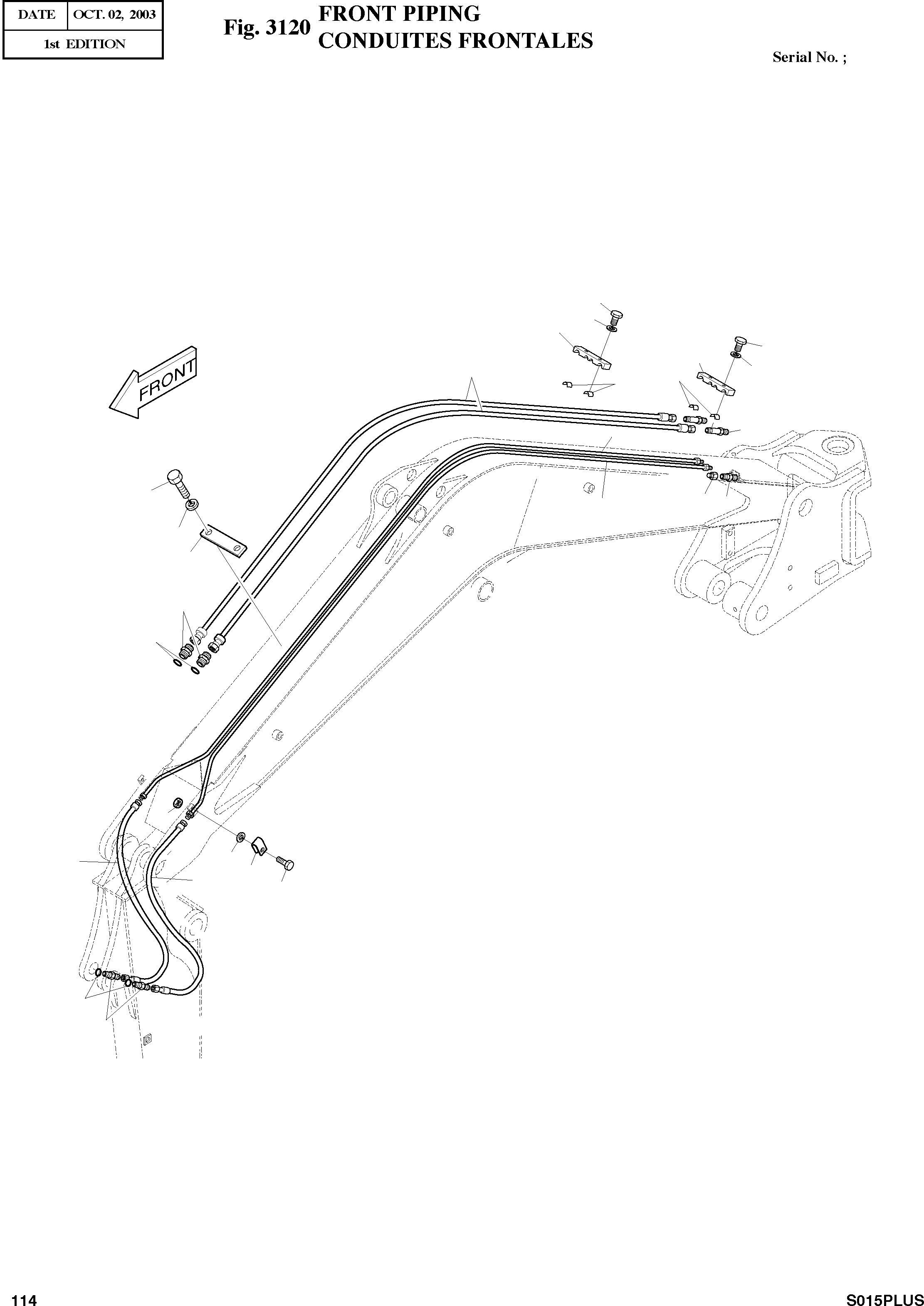

FRONT PIPING(3120 : 3120)
Номер на схеме Каталожный номер Название Количество Детали
? 400-00585 FRONT PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE FRONTALES
LNKOP:
IP:
? 2182-1660A PIPE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES
LNKOP:
IP:
? 2182-1661A PIPE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES
LNKOP:
IP:
? 2124-1628 CLAMP 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? 2181-2820D2 PLUG PF3/8 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? S4012633 NUT M10X1.5 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU
LNKOP:
IP:
? S5102603 WASHER;SPRING M10 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2124-1644 CLAMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? S0508653 BOLT M8X1.25X16 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5102503 WASHER;SPRING M8 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? DS2053738 HOSE PF1/4-600L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1026D455 HOSE PF3/8-930L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8000111 O-RING P11 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2124-1626 CLAMP 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? S0509053 BOLT M8X1.25X25 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5102503 WASHER;SPRING M8 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-1126D39 ADAPTER PFO1/4-PF3/8 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-2718 ADAPTER PFO3/8 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-2671A ADAPTER PF3/8 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? S0512353 BOLT M10X1.5X35 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 160-00037 PLATE;RUBBER 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
