Содержание Other: DOOSAN-DAEWOO SOLAR 015PLUS (S/N. 20001 ~ )(S015P-C)

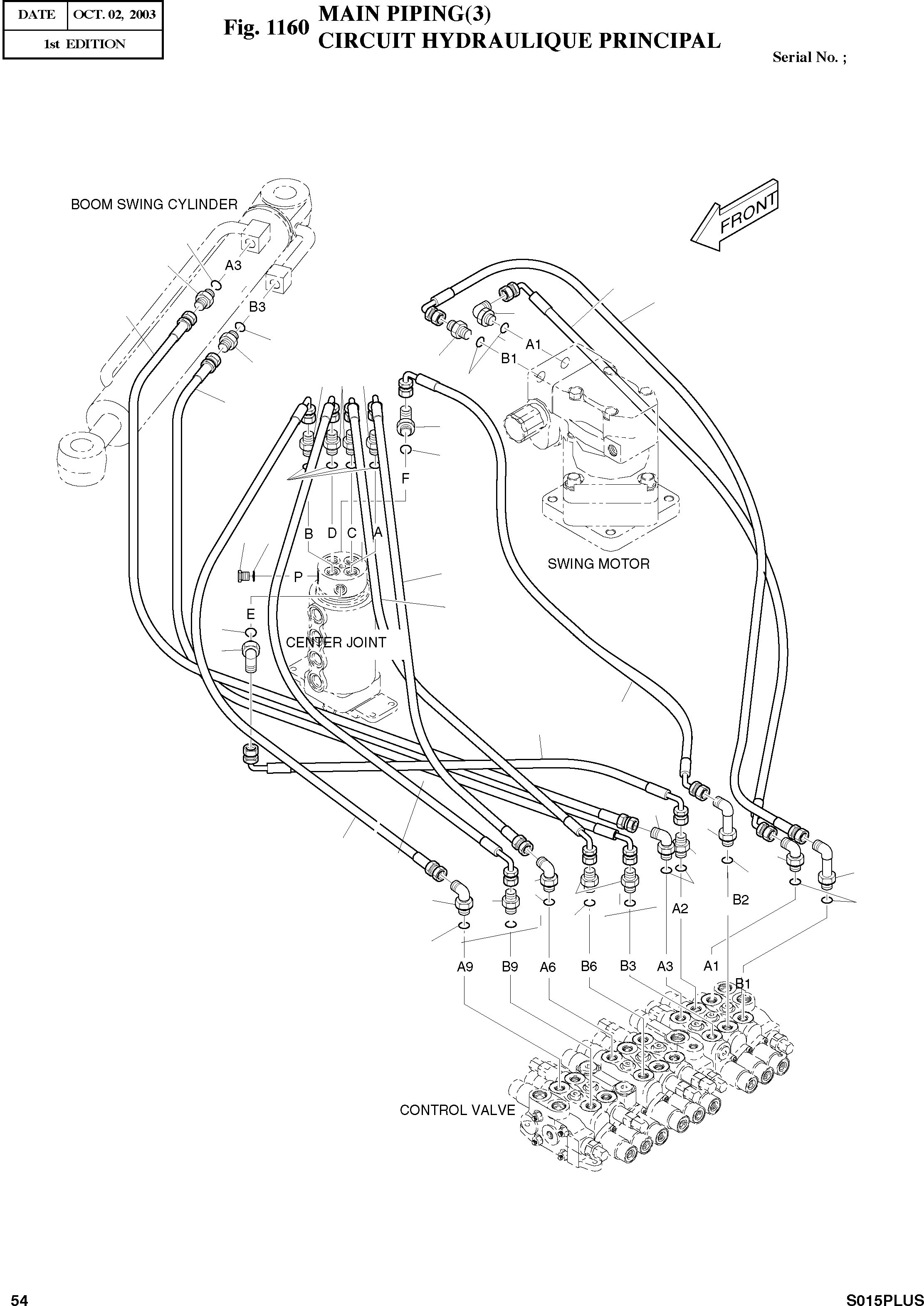

MAIN PIPING(3)(1160 : 1160)
Номер на схеме Каталожный номер Название Количество Детали
? 400-00592 MAIN PIPING (3) A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CIRCUIT HYDRAULIQUE PRINCIPAL
LNKOP:
IP:
? 2184-1060D165 HOSE PF1/4-350L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2058207 HOSE PF1/4-460L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1060D239 HOSE PF1/4-280L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2058206 HOSE PF1/4-380L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1026D127 HOSE PF1/4-750L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1036D425 HOSE PF1/4-800L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1036D365 HOSE PF1/4-320L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1060D93 HOSE PF1/4-400L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1128D37 HOSE PF1/4-610L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1036D277 HOSE PF1/4-750L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8000141 O-RING 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-1702D10 ELBOW PFO3/8-PF1/4 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-1126D36 ADAPTER PFO3/8-PF1/4 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-1702D58 ELBOW PFO3/8-PF1/4 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? S8000111 O-RING 9
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PFO1/4-PF1/4 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-1126D34 ADAPTER PFO1/4-PF1/4 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
IP:
? 2181-1890D2 PLUG 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? 2181-1702D4 ELBOW PFO1/4-PF1/4 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 015PLUS (S/N. 20001 ~ )(S015P-C) / MAIN PIPING(3)(1160 : 1160)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
