Содержание Other: DOOSAN-DAEWOO SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c)

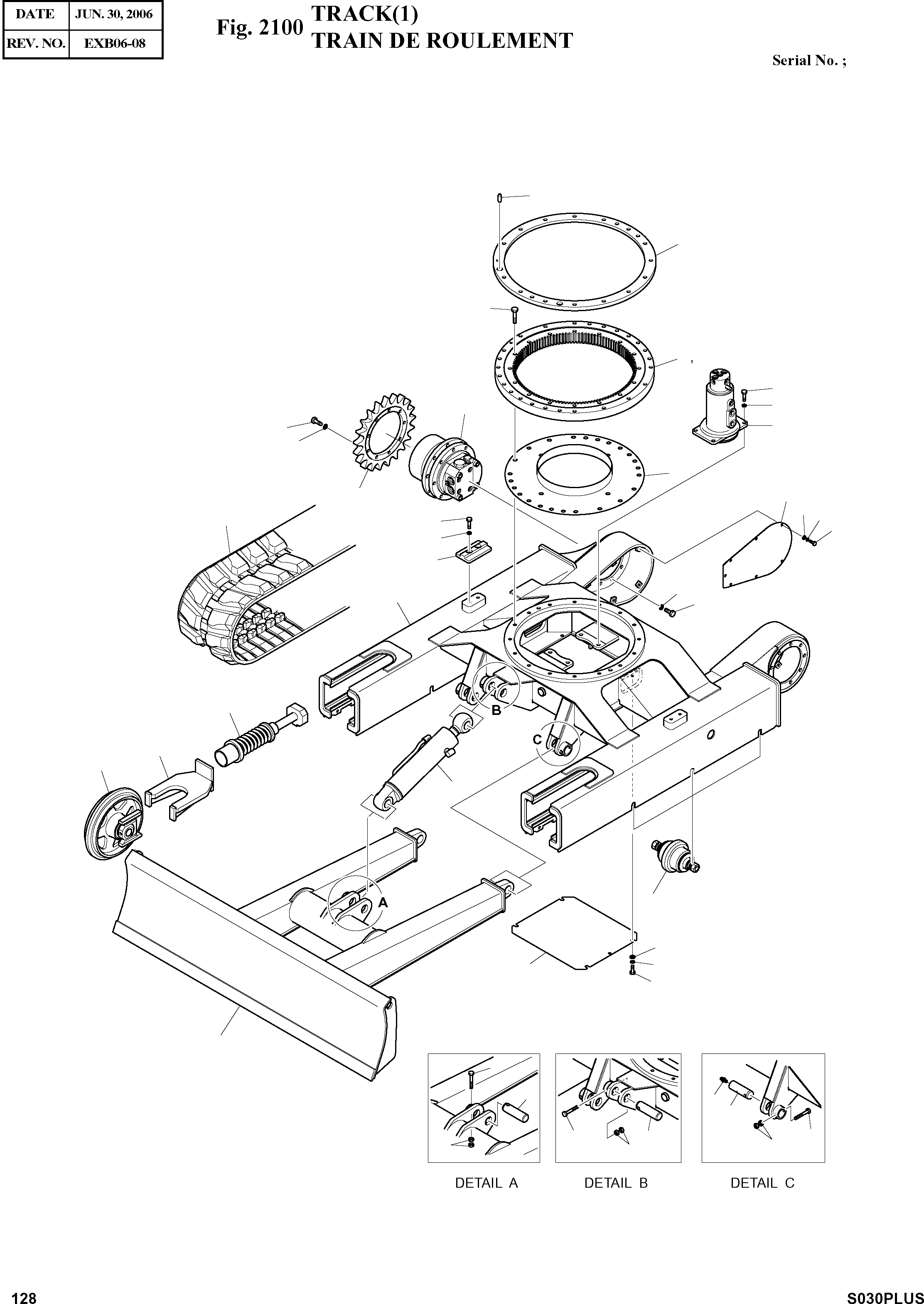

TRACK(1)(2100 : 2100)
Наименование Страница Код страницы
TRAVEL MOTOR 4120 4120
CENTER JOINT 4160 4160
DOZER CYLINDER 4230 4230

Номер на схеме Каталожный номер Название Количество Детали
? 600-00107A TRACK FRAME ASS'Y A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: TRAIN DE ROULEMENT
LNKOP:
IP:
? 604-00162B FRAME;TRACK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TRAIN DE ROULEMENT
LNKOP:
IP:
? 2608-1046J DOZER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOZER
LNKOP:
IP:
? 2123-2168C PIN(L.H) 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GOUPILLE
LNKOP:
IP:
? S6710152 NIPPLE;GREASE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GRAISSEUR
LNKOP:
IP:
? 2123-2170B PIN 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GOUPILLE
LNKOP:
IP:
? S0558953 BOLT M10X1.5X70 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 2251-1002C BATH;GREASE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BATH;GREASE
LNKOP:
IP:
? 2109-9073B BEARING;SWING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PALIER
LNKOP:
IP:
? 180-00297D2 . SEAL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT
LNKOP:
IP:
? 2412-1062A RING;TURNING 1
SERIAL: 20001-20528
SERIAL_NO: 20001~20528
ICA: I
REP_PNO: 2412-1062B
REP_QTY: 1
SC:
desc: BAGUE
LNKOP:
IP:
? 2412-1062B RING;TURNING 1
SERIAL: 20529-
SERIAL_NO: 20529~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BAGUE
LNKOP:
IP:
? 2123-2132 PIN 2
SERIAL: 20001-20528
SERIAL_NO: 20001~20528
ICA: I
REP_PNO: K1013936
REP_QTY: 2
SC:
desc: BROCHE
LNKOP:
IP:
? K1013936 PIN 2
SERIAL: 20529-
SERIAL_NO: 20529~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BROCHE
LNKOP:
IP:
? S0560961 BOLT M12X1.75X60 16
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102703 WASHER;SPRING 36
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2621-3333C COVER;SWIVEL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? S0511853 BOLT M10X1.5X20 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102603 WASHER;SPRING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010613 WASHER 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE PLATE
LNKOP:
IP:
? 2440-9301E DOZER CYLINDER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE DOZER
LNKOP:
IP: O
 4230
? 270-00012B TRACK ROLLER ASS'Y 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GALET
LNKOP:
IP:
? 273-00003 RUBBER CRAWLER ASS'Y 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 2440-9316B ADJUST CYLINDER ASS'Y 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: AJUSTEZ LE CYLINDRE
LNKOP:
IP:
? 2157-1027C YORK 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FOURCHETTE
LNKOP:
IP:
? 270-00011A FRONT IDLER ASS'Y 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BARBOTIN
LNKOP:
IP:
? 2627-1115A PLATE;SLIDE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? S0512053 BOLT M10X1.5X40 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102603 WASHER;SPRING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2197-1291E COVER;MOTOR CASE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? S0508853 BOLT M8X1.25X20 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102503 WASHER;SPRING 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010513 WASHER 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 108-00006A SPROCKET 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COURONNE DENTEE
LNKOP:
IP:
? S0515361 BOLT 36
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 401-00265A MOTOR;TRAVEL 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: MOTEUR DE TRANSLATION
LNKOP:
IP: O
 4120
? S4012633 NUT M10X1.5 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU
LNKOP:
IP:
? 2480-1016 CENTER JOINT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TOURILLON PIVOTANT
LNKOP:
IP: O
 4160
? S5102703 WASHER;SPRING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S0515253 BOLT 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c) / TRACK(1)(2100 : 2100)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
