| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

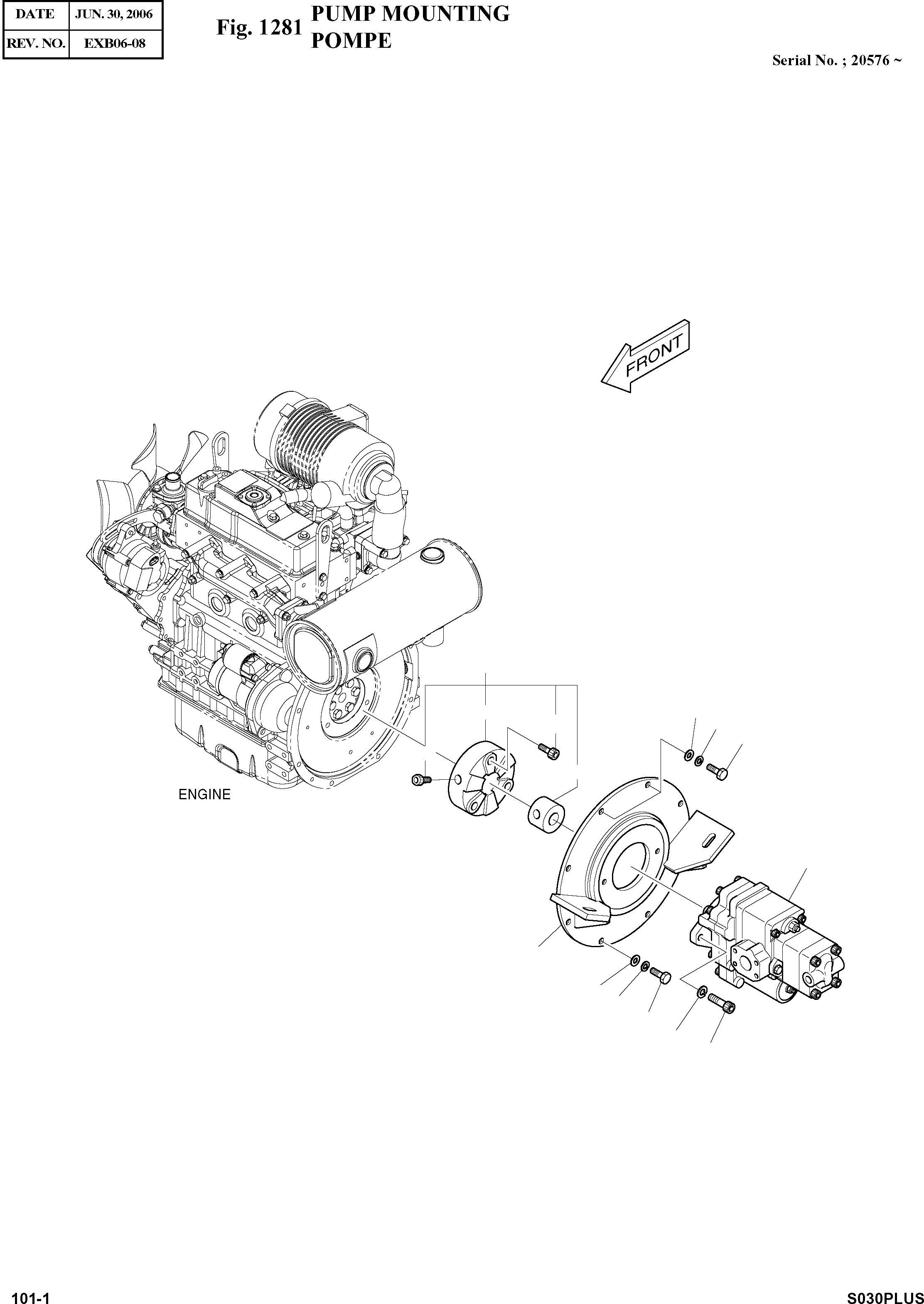

| ? | 401-00525 | PUMP MOUNTING | A/R | SERIAL: 20576- SERIAL_NO: 20576~ ICA: REP_PNO: REP_QTY: SC: D desc: SUPPORT DE POMPE LNKOP: IP: |
|||
| ? | 401-00261A | PUMP;MAIN | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: POMPE LNKOP: IP: O |
4100 | ||
| ? | S2215266 | BOLT;SOCKET | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6PANS LNKOP: IP: |
|||
| ? | S5110703 | WASHER;SPRING | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE ELASTIQUE LNKOP: IP: |
|||
| ? | 215-00039 | FLANGE;PUMP | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: POMPE LNKOP: IP: |
|||
| ? | S0512053 | BOLT M10X1.5X25 | 8 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6PANS LNKOP: IP: |
|||
| ? | S5102603 | WASHER;SPRING M10 | 8 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE ELASTIQUE LNKOP: IP: |
|||
| ? | S5010613 | WASHER;PLAIN M10 | 8 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE PLATE LNKOP: IP: |
|||
| ? | 414-00068 | COUPLING ASS'Y | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: ACCOUPLEMENT LNKOP: IP: |
|||
| ? | 2474-7028S | . ELEMENT KIT;COUPLING | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . ELEMENT LNKOP: IP: |
|||
| ? | - | . HUB | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: . MOYEU LNKOP: IP: |
|||
| ? | K9000418 | . SOCKET BOLT SET(6EA) | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: . BOULON DE PLOT LNKOP: IP: |
