Содержание Other: DOOSAN-DAEWOO SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c)

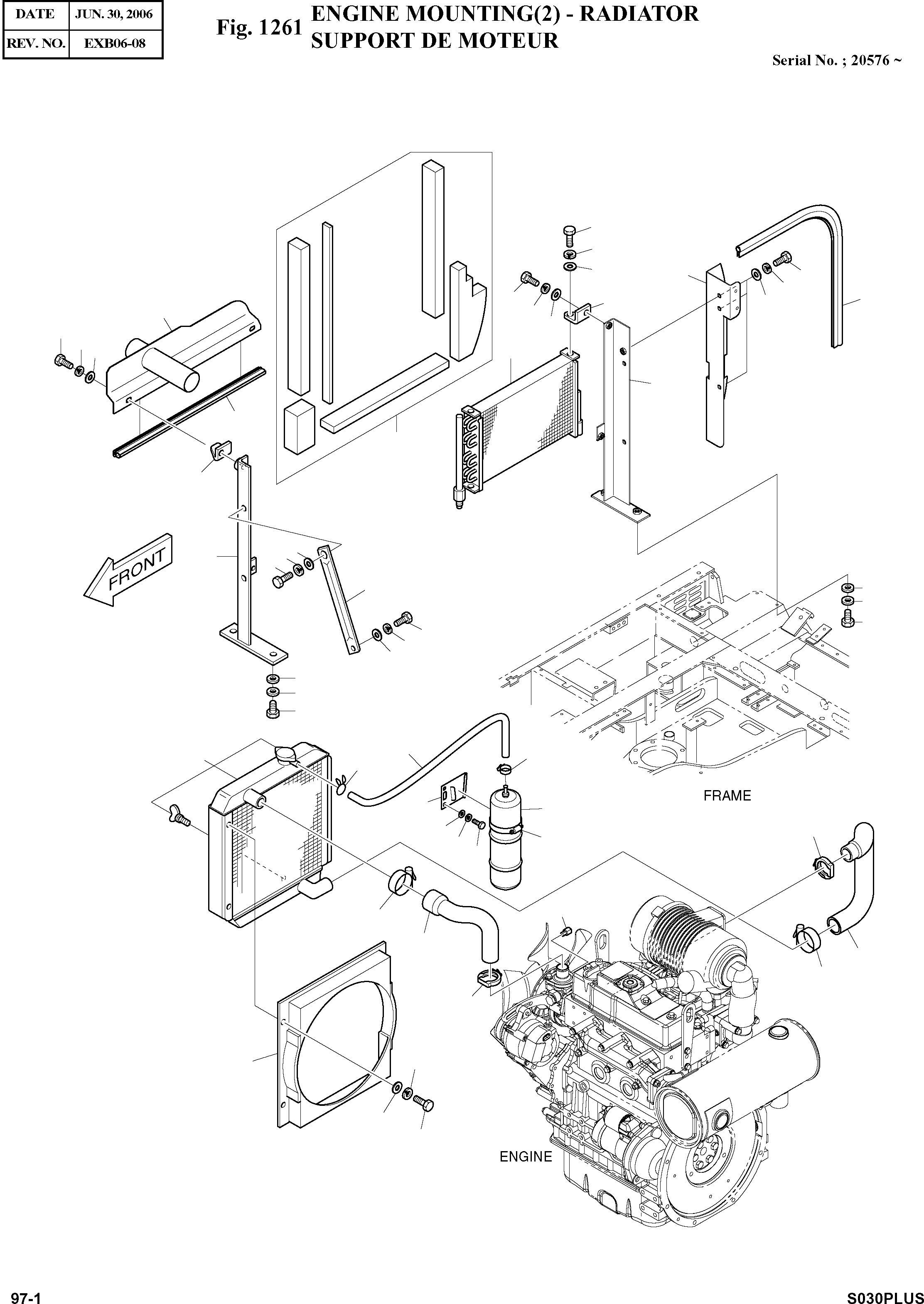

ENGINE MOUNTING(2) - RADIATOR(1261 : 1261)
Номер на схеме Каталожный номер Название Количество Детали
? 201-00206A ENGINE MOUNT A/R
SERIAL: 20576-
SERIAL_NO: 20576~
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: SUPPORT DE MOTEUR
LNKOP:
IP:
? S0512053 BOLT M10X1.5X25 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102603 WASHER;SPRING M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2197-1226B BRACKET;RADIATOR(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2114-1058D10 WASHER M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE PLATE
LNKOP:
IP:
? 2197-1225B BRACKET;RADIATOR(R.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 6202-6001 RADIATOR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RADIATEUR
LNKOP:
IP:
? S0508853 BOLT M8X1.25X20 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102503 WASHER;SPRING M8 14
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010513 WASHER;PLAIN M8 14
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 205-00032 SHROUD 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GARDE
LNKOP:
IP:
? S0504453 BOLT M6X1.0X12 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102303 WASHER;SPRING M6 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010313 WASHER;PLAIN M6 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 40121-01051 COOLER;OIL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: REFROIDISSEUR D'HUILE
LNKOP:
IP:
? 2621-3279A PLATE(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 2621-3278A PLATE(R.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 621-03581 COVER;BAFFLE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? S0508653 BOLT 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 621-03582A COVER;BAFFLE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? 185-00403 HOSE;UPPER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8450044 BAND;WIRE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? 185-00409A HOSE;LOWER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? Z21256-44600 HANGER;SURGE TANK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? Z24450-44510 TANK;SURGE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RESERVOIR
LNKOP:
IP:
? S8450006 CLIP;HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? 40124-00350 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 30572-08012 CLIP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE
LNKOP:
IP:
? 145-00148 STAY 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ENTRETOISE
LNKOP:
IP:
? S0504653 BOLT M6X1.0X16 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 161-00658 SPONGE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: EPONGE
LNKOP:
IP:
? 162-00029A STRIP;WEATHER 1000L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BANDE
LNKOP:
IP:
? 2160-1023 TRIM;RUBBER 350L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: EPONGE
LNKOP:
IP:
? S0508953 BOLT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S8450035 CLAMP 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc:
LNKOP:
IP:
? Z24450-44550 CLAMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc:
LNKOP:
IP:
? K1010549 SENSOR;WATER TEMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc:
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c) / ENGINE MOUNTING(2) - RADIATOR(1261 : 1261)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
