Содержание Other: DOOSAN-DAEWOO SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c)

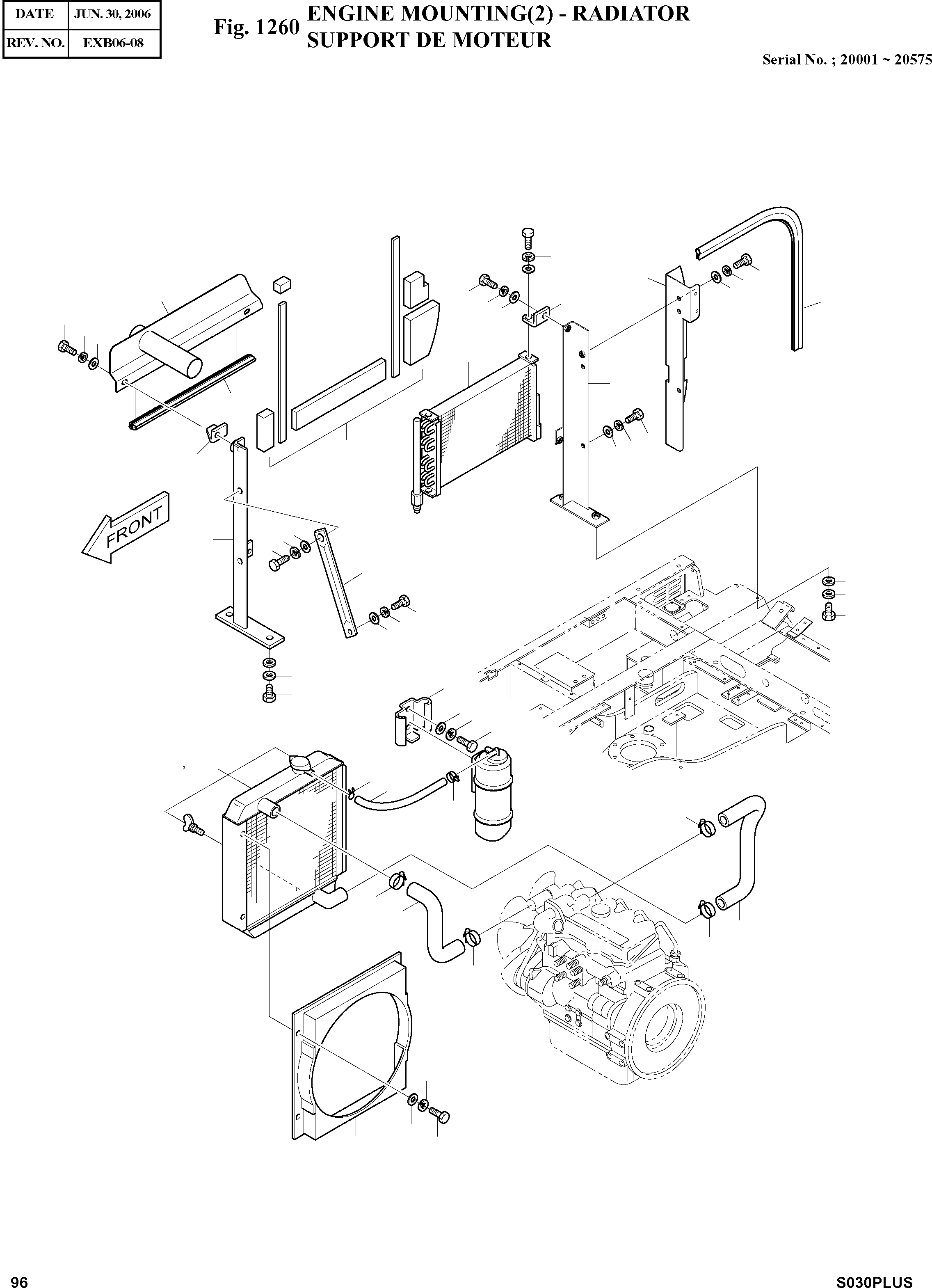

ENGINE MOUNTING(2) - RADIATOR(1260 : 1260)
Номер на схеме Каталожный номер Название Количество Детали
? 201-00086 ENGINE MOUNT A/R
SERIAL: 20001-20575
SERIAL_NO: 20001~20575
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: SUPPORT DE MOTEUR
LNKOP:
IP:
? S0512053 BOLT M10X1.5X25 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102603 WASHER;SPRING M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? 2197-1226A BRACKET;RADIATOR(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2114-1058D10 WASHER M10 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE PLATE
LNKOP:
IP:
? 2197-1225A BRACKET;RADIATOR(R.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 6202-6001 RADIATOR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RADIATEUR
LNKOP:
IP:
? 1041-013-5100 . CAP;RADIATOR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . CHAPEAU
LNKOP:
IP:
? S0508853 BOLT M8X1.25X20 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102503 WASHER;SPRING M8 13
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010513 WASHER;PLAIN M8 13
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 2205-1012 SHROUD 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GARDE
LNKOP:
IP:
? S0504453 BOLT M6X1.0X12 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? S5102303 WASHER;SPRING M6 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5010313 WASHER;PLAIN M6 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 40121-01051 COOLER;OIL 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: REFROIDISSEUR D'HUILE
LNKOP:
IP:
? 2621-3279 PLATE(L.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 2621-3278 PLATE(R.H) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 621-01958A COVER;BAFFLE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? S0508653 BOLT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 621-01959B COVER;BAFFLE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUVERCLE
LNKOP:
IP:
? 2185-1619 HOSE;UPPER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8450044 BAND;WIRE 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? 2185-1620 HOSE;LOWER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 897041-0220 HANGER;SURGE TANK 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 894370-4500 TANK;SURGE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RESERVOIR
LNKOP:
IP:
? S8450006 CLIP;HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? 40124-00350 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 30572-08012 CLIP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE
LNKOP:
IP:
? 2145-1233A STAY 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ENTRETOISE
LNKOP:
IP:
? S0504653 BOLT M6X1.0X16 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 161-00420B SPONGE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: EPONGE
LNKOP:
IP:
? 162-00029 STRIP;WEATHER 1000L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BANDE
LNKOP:
IP:
? 2160-1023 TRIM;RUBBER 350L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: EPONGE
LNKOP:
IP:
? S0508953 BOLT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 030PLUS (S/N. 20001 ~ )(S030p-c) / ENGINE MOUNTING(2) - RADIATOR(1260 : 1260)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
