Содержание Other: DOOSAN-DAEWOO SOLAR 130W-III(S130w-3)

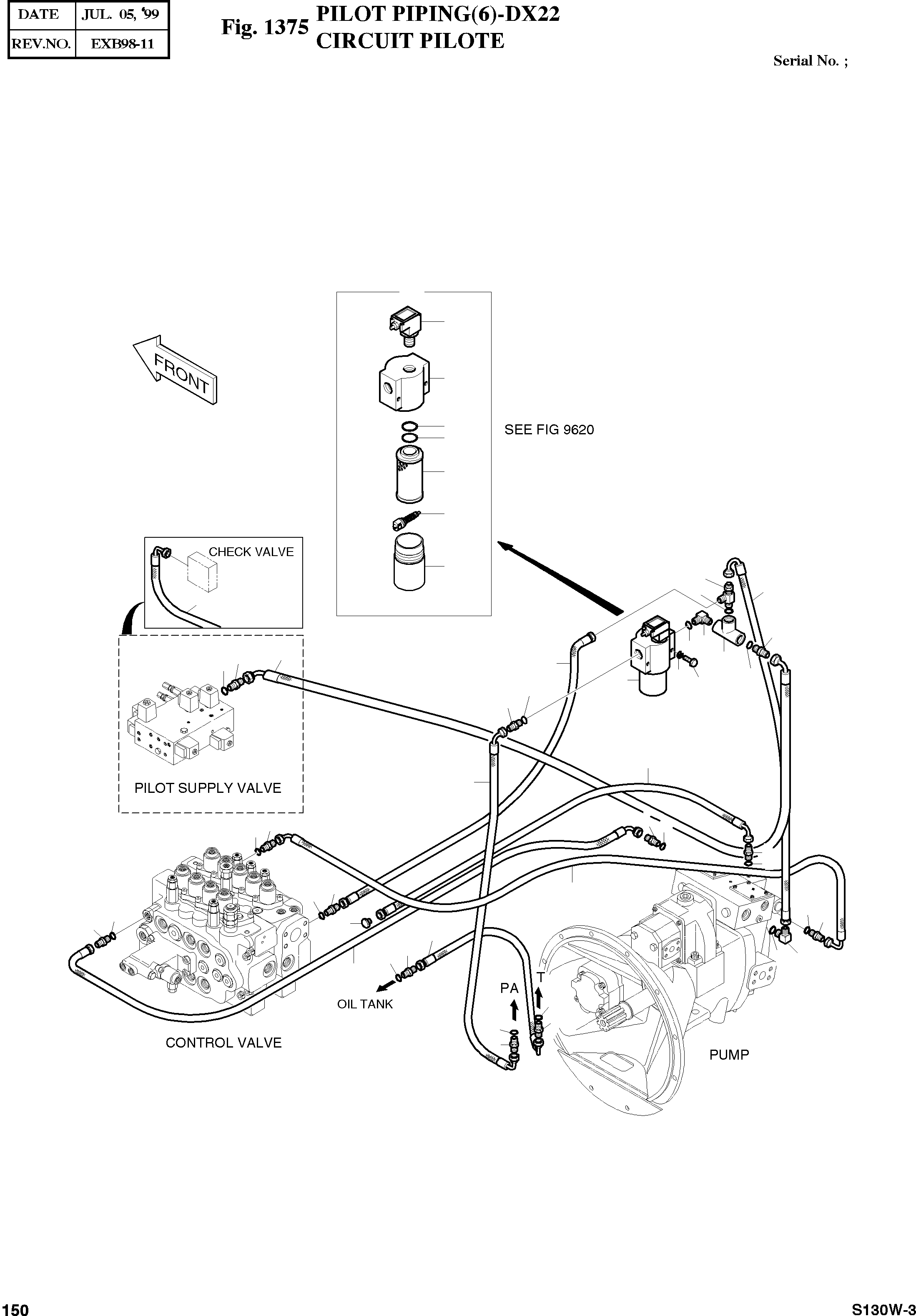

PILOT PIPING(6)-DX22(1375 : 1375)
Номер на схеме Каталожный номер Название Количество Детали
? 2400-1619 PILOT PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CIRCUIT PILOTE
LNKOP:
? 2181-1126D14 ADAPTER 2PF1/4 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
? S8000111 O-RING P11 6
SERIAL_NO:
ICA:
REP_PNO: 8202-009
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
? 2184-1036D3 HOSE(S-90)3/8-650L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2181-1951D6 TEE PF1/4-2PF3/8 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
? 2184-1045D128 HOSE(S-S) 1/4-1100L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2181-1126D7 ADAPTER PFO3/8-PF3/8 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
? S8000141 O-RING P14 4
SERIAL_NO:
ICA:
REP_PNO: 8202-011
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
? 2181-1702D5 ELBOW PFO3/8-PF3/8 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
? 2184-1096D16 HOSE(90-90) PF3/8-720L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2181-1126D23 ADAPTER PFO1/2-PF3/8 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
? S8000181 O-RING P18 4
SERIAL_NO:
ICA:
REP_PNO: 8202-014
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
? 2181-1702D2 ELBOW PFO1/2-PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
? 2184-1061D81 HOSE(90-90) 1/4-1500L 1
SERIAL: 1-1350
SERIAL_NO: 1~1350
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2184-1046D155 HOSE(S-90) 1/4-1500L 1
SERIAL: 1351-
SERIAL_NO: 1351~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2471-9026 FILTER'PILOT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FILTRE
LNKOP:
? Y-3738-01 . BODY 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: . CULASSE
LNKOP:
? Y-3738-02 . VALVE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . ENSEMBLE CLAPET
LNKOP:
? 2474-9041 . ELEMENT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . ELEMENT FILTRANT
LNKOP:
? Y-3738-04 . O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . JOINT TORIQUE
LNKOP:
? Y-3738-05 . RING;BACK-UP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . BAGUE DE SOUTIEN
LNKOP:
? 2472-7003 . CASE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . CARTER
LNKOP:
? Y-4117 . INDICATOR 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: . INDICATEUR
LNKOP:
? S0553753 BOLT M6X1.0X55 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
? S5102303 WASHER;SPRING M6 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
? 2184-1061D22 HOSE(90-90) 1/4-1700L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2184-1061D225 HOSE(90-90) 1/2-1550L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2471-1135 ADAPTER;FILTER PFO1/2-PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FILTRE
LNKOP:
? 2181-1126D6 ADAPTER PFO1/2-PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD ADAPTATEUR
LNKOP:
? 2183-3489 PIPE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITE
LNKOP:
? 2184-1046D147 HOSE(S-90) 1/4-1000L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
? 2181-2339D1 PLUG PF1/4(HOSE) 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
? 2184-1036D274 HOSE(S-90) 3/8-550L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
