| Наименование | Страница | Код страницы |
|---|---|---|
| TRAVEL REDUCTION GEAR | 4150 | 4150 |
| TRAVEL REDUCTION GEAR | 4151 | 4151 |

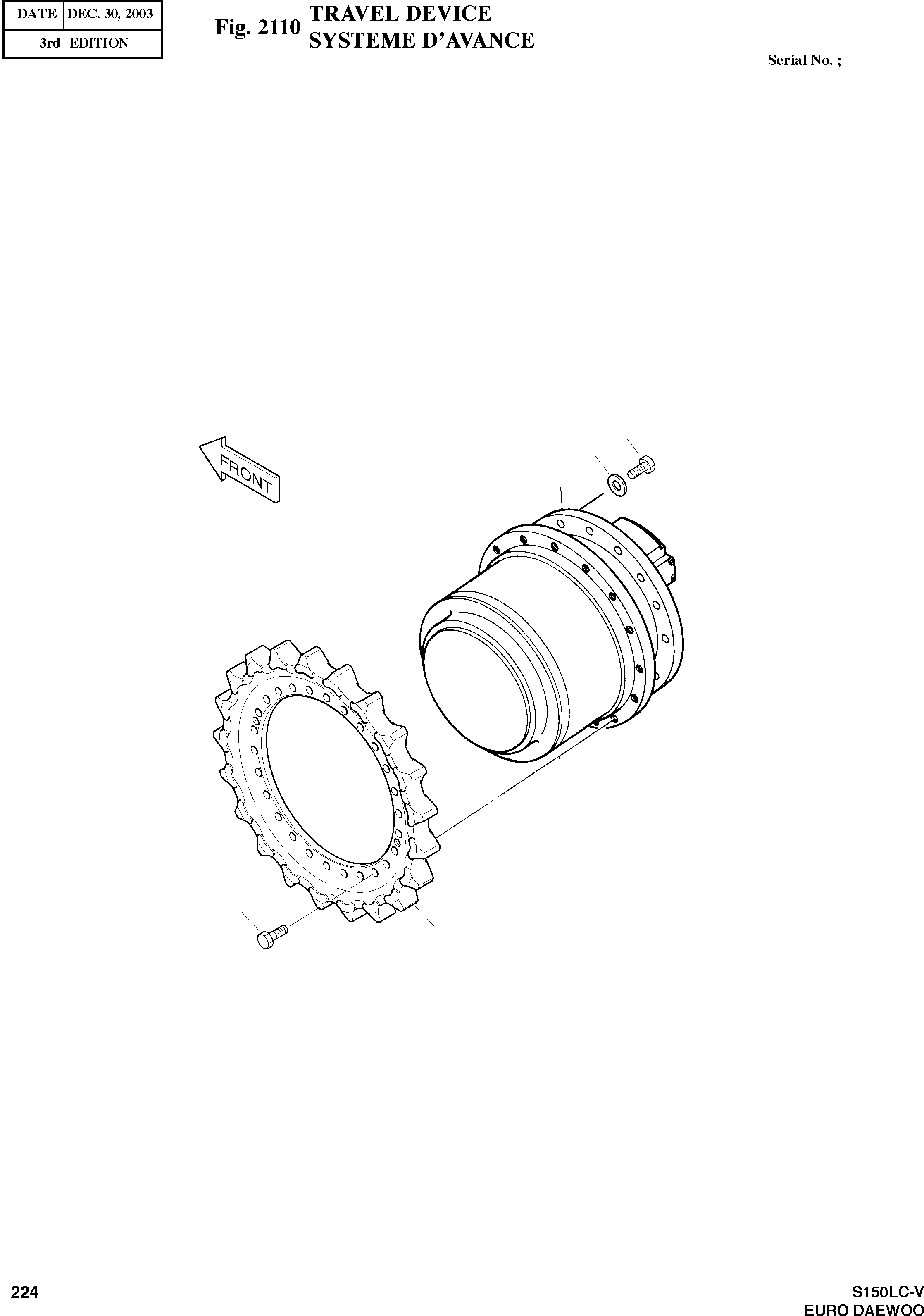

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 2604-1267 | TRACK ASS'Y | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: TRAIN DE ROULEMENT LNKOP: IP: |
|||
| ? | 9604-1033A | TRACK ASS'Y | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: TRAIN DE ROULEMENT LNKOP: IP: |
|||
| ? | 9604-1035 | TRACK ASS'Y | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: TRAIN DE ROULEMENT LNKOP: IP: |
|||
| ? | 2401-9092B | MOTOR;TRAVEL | 2 | SERIAL: 1-50133 SERIAL_NO: 1~50133 ICA: REP_PNO: REP_QTY: SC: desc: MOTEUR D'AVANCE LNKOP: IP: O |
4150 | ||
| ? | 401-00034 | MOTOR;TRAVEL | 2 | SERIAL: 50134-50294 SERIAL_NO: 50134~50294 ICA: REP_PNO: REP_QTY: SC: desc: MOTEUR D'AVANCE LNKOP: IP: |
|||
| ? | 401-00034A | MOTOR;TRAVEL | 2 | SERIAL: 50295- SERIAL_NO: 50295~ ICA: REP_PNO: REP_QTY: SC: desc: MOTEUR D'AVANCE LNKOP: IP: O |
4151 | ||
| ? | 2108-1019C | SPROCKET | 2 | SERIAL: 1-50294 SERIAL_NO: 1~50294 ICA: REP_PNO: REP_QTY: SC: desc: COURONNE DENTEE LNKOP: IP: |
|||
| ? | 2108-1019E | SPROCKET | 2 | SERIAL: 50295- SERIAL_NO: 50295~ ICA: REP_PNO: REP_QTY: SC: desc: COURONNE DENTEE LNKOP: IP: |
|||
| ? | 2114-1816 | WASHER;HARDEN | 60 | SERIAL: 1-50220 SERIAL_NO: 1~50220 ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE LNKOP: IP: |
|||
| ? | 2114-1816A | WASHER;HARDEN | 60 | SERIAL: 50221- SERIAL_NO: 50221~ ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE LNKOP: IP: |
|||
| ? | 120-00050 | BOLT M16X2.0X45 | 42 | SERIAL: 1-50230 SERIAL_NO: 1~50230 ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | 120-00050A | BOLT M16X2.0X45 | 42 | SERIAL: 50231-50294 SERIAL_NO: 50231~50294 ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | 120-00050B | BOLT M16X2.0X45 | 42 | SERIAL: 50295- SERIAL_NO: 50295~ ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
|||
| ? | S0565566 | BOLT M16X2.0X65 | 60 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOULON A 6 PANS LNKOP: IP: |
