Содержание Other: DOOSAN-DAEWOO SOLAR 150LC-V - DIEU(E150LC-V)

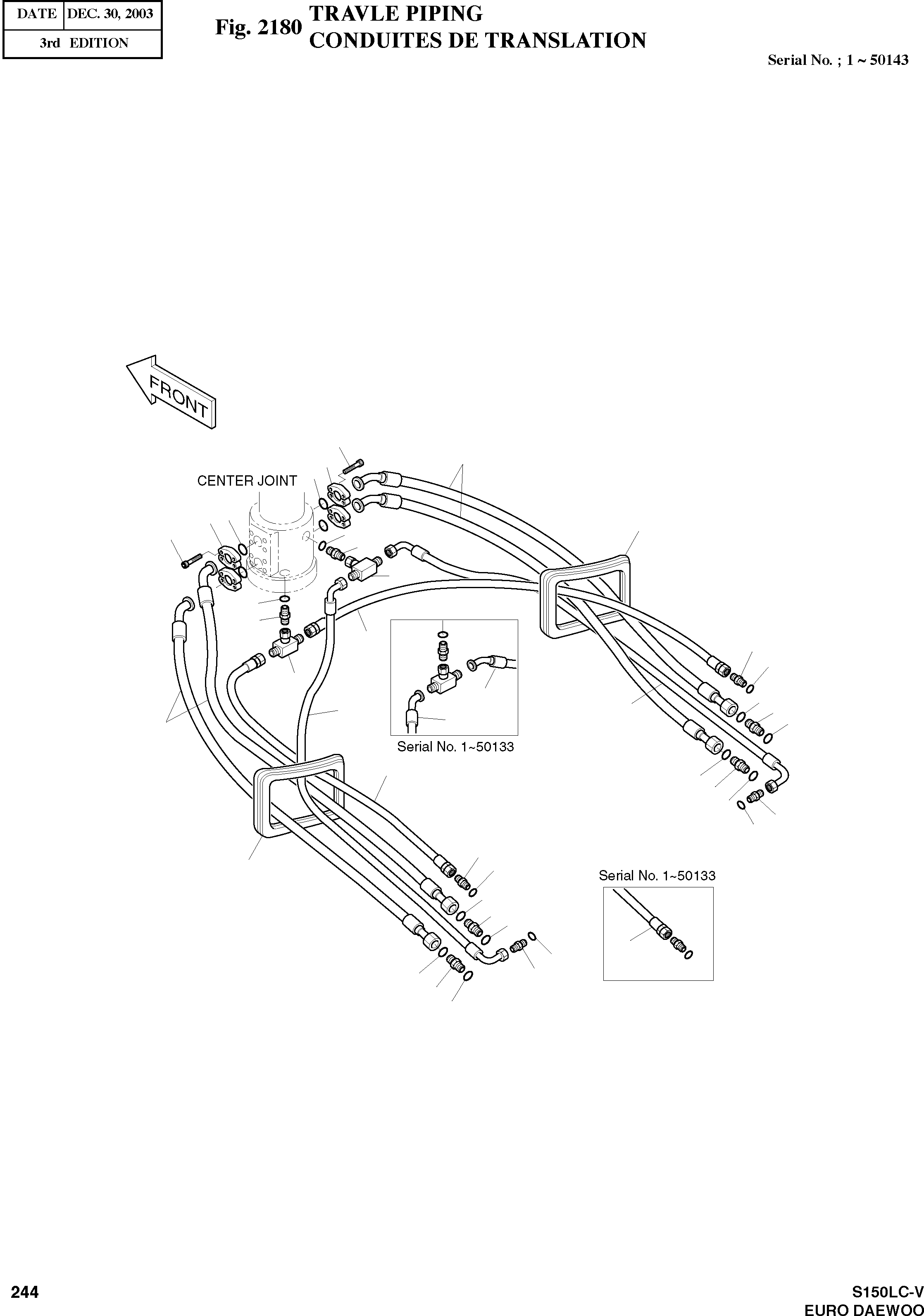

TRAVEL PIPING(2180 : 2180)
Номер на схеме Каталожный номер Название Количество Детали
? 2400-1754 PIPING;PROPELL A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE TRANSLATION
LNKOP:
IP:
? 9400-1073 PIPING;PROPELL A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE TRANSLATION
LNKOP:
IP:
? 2184-1222D10 HOSE (S-135)1 3/16-12-2000L 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8030121 O-RING 1 3/16-12 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-4133D5 ADAPTER PFO.ORS 3/4 4
SERIAL: 1-50133
SERIAL_NO: 1~50133
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? 2181-2627D1 ADAPTER 4
SERIAL: 50134-
SERIAL_NO: 50134~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8000231 O-RING P22.4 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-9081 FLANGE;SPLIT 1"-6000PSI 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FLASQUE EN DEUX PARTIES
LNKOP:
IP:
? 2180-1026D19 O-RING 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S2215361 BOLT;SOCKET M12X1.75X35 16
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 2184-1070D16 HOSE PF1/2-1950L 2
SERIAL: 1-50133
SERIAL_NO: 1~50133
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1026D435 HOSE PF1/2-1900L 2
SERIAL: 50134-
SERIAL_NO: 50134~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2181-1126D6 ADAPTER PF1/2(O)XPF1/2 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8000181 O-RING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-4124 TEE PF1/2 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 2184-1046D146 HOSE PF1/4-2250L 2
SERIAL: 1-50133
SERIAL_NO: 1~50133
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1061D30 HOSE PF1/4-2400L 2
SERIAL: 50134-
SERIAL_NO: 50134~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2181-1126D14 ADAPTER PF1/4(O)XPF1/4 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8000111 O-RING P11 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-4125 TEE PF1/4 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 2160-1322D2 BUSHING;RUBBER 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GARNISSAGE CAOUTCHOUC
LNKOP:
IP:

Other: DOOSAN-DAEWOO / SOLAR 150LC-V - DIEU(E150LC-V) / TRAVEL PIPING(2180 : 2180)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
