| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

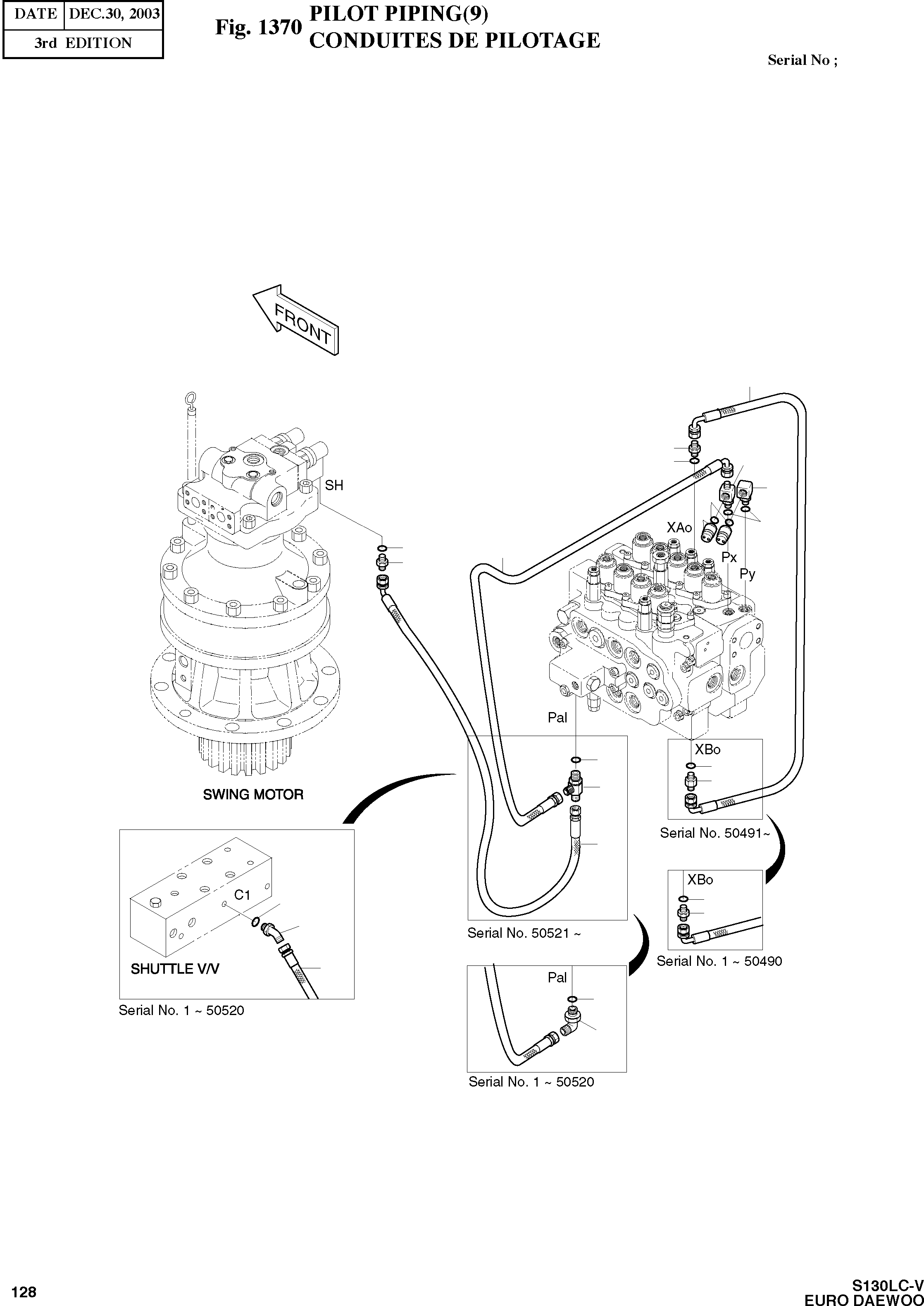

| ? | 9400-1118A | PILOT PIPING | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: CONDUITES DE PILOTAGE LNKOP: IP: |
|||
| ? | S8000141 | O-RING | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: JOINT TORIQUE LNKOP: IP: |
|||
| ? | S8000111 | O-RING | 7 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: JOINT TORIQUE LNKOP: IP: |
|||
| ? | 2181-1126D14 | ADAPTER PFO1/4-PF1/4 | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RACCORD LNKOP: IP: |
|||
| ? | 2181-1126D36 | ADAPTER PFO3/8-PF1/4 | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RACCORD LNKOP: IP: |
|||
| ? | 2181-1702D4 | ELBOW PFO-PF1/4 | 1 | SERIAL: 1-50520 SERIAL_NO: 1~50520 ICA: REP_PNO: REP_QTY: SC: desc: COUDE LNKOP: IP: |
|||
| ? | 2549-9112 | SWITCH;PRESS 19BAR | 2 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: INTERRUPTEUR LNKOP: IP: |
|||
| ? | 2181-2295D4 | ELBOW PFO-PF1/4 | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: COUDE LNKOP: IP: |
|||
| ? | 2181-2635 | ADAPTER PFO-PF1/4 | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RACCORD LNKOP: IP: |
|||
| ? | 2181-1951D1 | TEE | 1 | SERIAL: 50521- SERIAL_NO: 50521~ ICA: REP_PNO: REP_QTY: SC: desc: TE LNKOP: IP: |
|||
| ? | 2184-1061D76 | HOSE PF1/4-800L | 1 | SERIAL: 1-50500 SERIAL_NO: 1~50500 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1046D81 | HOSE PF1/4-650L | 1 | SERIAL: 1-50160 SERIAL_NO: 1~50160 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1046D157 | HOSE PF1/4-800L | 1 | SERIAL: 50161-50490 SERIAL_NO: 50161~50490 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1046D82 | HOSE PF1/4-850L | 1 | SERIAL: 50491- SERIAL_NO: 50491~ ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1046D79 | HOSE PF1/4-480L | 1 | SERIAL: 1-50490 SERIAL_NO: 1~50490 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1046D117 | HOSE PF1/4-1700L | 1 | SERIAL: 50491-50520 SERIAL_NO: 50491~50520 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2184-1061D5 | HOSE PF1/4-250L | 1 | SERIAL: 50521- SERIAL_NO: 50521~ ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2181-2419D1 | ELBOW PFO1/4-PF1/4 | 1 | SERIAL: 1-50520 SERIAL_NO: 1~50520 ICA: REP_PNO: REP_QTY: SC: desc: TUYAU FLEXIBLE LNKOP: IP: |
|||
| ? | 2181-1126D96 | ADAPTER | 1 | SERIAL: 50491- SERIAL_NO: 50491~ ICA: REP_PNO: REP_QTY: SC: desc: RACCORD LNKOP: IP: |
