Содержание Other: DOOSAN-DAEWOO SOLAR 130LC-V - DIEU(E130LC-V)

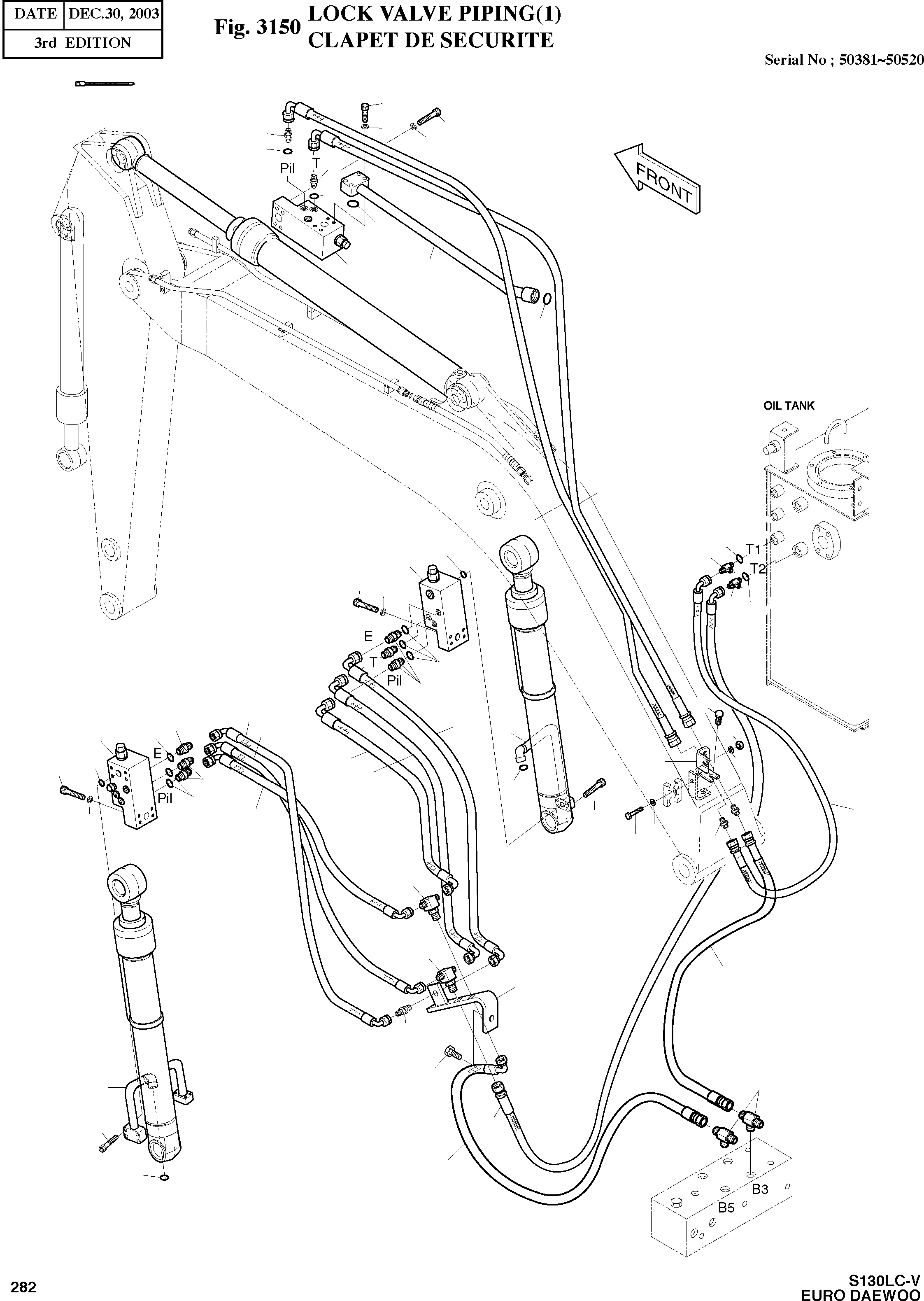

LOCK VALVE PIPING(1)(3150 : 3150)
Номер на схеме Каталожный номер Название Количество Детали
? 9400-1051B LOCK VALVE
SERIAL: 50381-50520
SERIAL_NO: 50381~50520
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CLAPET DE SECURITE
LNKOP:
IP:
? 9420-6018A LOCK VALVE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CLAPET DE SECURITE
LNKOP:
IP:
? S5110613 WASHER;SPRING 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE GROWER
LNKOP:
IP:
? S2212663 BOLT;SOCKET M10X50 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 2181-1126D14 ADAPTER 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? S8000111 O-RING 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? S2212463 BOLT;SOCKET M10X40 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 2124-1084D2 CLIP;BAND 20
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE
LNKOP:
IP:
? 9184-1009D25 HOSE;3880L 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1010D49 HOSE;2550L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S5060963 BOLT M12X60 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S0515463 BOLT M12X40 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6PANS
LNKOP:
IP:
? 9195-1125 BRACKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? S0516663 BOLT M12x100 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S4012733 NUT M12 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU
LNKOP:
IP:
? S5010713 PLAIN WASHER M12 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? 9181-1033 DOUBLE-UNION 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? 9195-1149 BRACKET 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 9181-1034 BULKHEAD-TEE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE PASSE CLOISON
LNKOP:
IP:
? 2180-1026D2 O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? 9181-1037 DOUBLE-UNION 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8030121 O-RING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? 9184-1014D16 HOSE;800L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1014D14 HOSE;650L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S2209263 BOLT;SOCKET M8X30 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? 9183-1085 PIPE ASS'Y 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES
LNKOP:
IP:
? 9184-1022D22 HOSE;2000L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1050D11 HOSE;1500L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9181-1011D3 TEE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 2181-1951D21 TEE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 9420-6021 LOCK VALVE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CLAPET DE SECURITE
LNKOP:
IP:
? 9183-1107 PIPE ASS'Y(RH) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES
LNKOP:
IP:
? 9183-1108 PIPE ASS'Y(LH) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CONDUITES
LNKOP:
IP:
? 2180-1026D30 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? S2209663 BOLT;SOCKET M8X50 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? S5110513 WASHER;SPRING M8 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE GROWER
LNKOP:
IP:
? 918-1014D15 HOSE 750L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1009D28 HOSE 2550L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8030081 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? 9184-1014D17 HOSE 650L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1014D18 HOSE 750L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 9184-1014D19 HOSE 800L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S8000181 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JONT TORIQUE
LNKOP:
IP:
? 9180-7028 SEAL KIT VALVE(9420-6021) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: KIT DE JOINT
LNKOP:
IP:
? 9180-7025 SEAL KIT VALVE(9420-6018) 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: KIT DE JOINT
LNKOP:
IP:
