Содержание Other: DOOSAN-DAEWOO SOLAR 130LC-V - DIEU(E130LC-V)

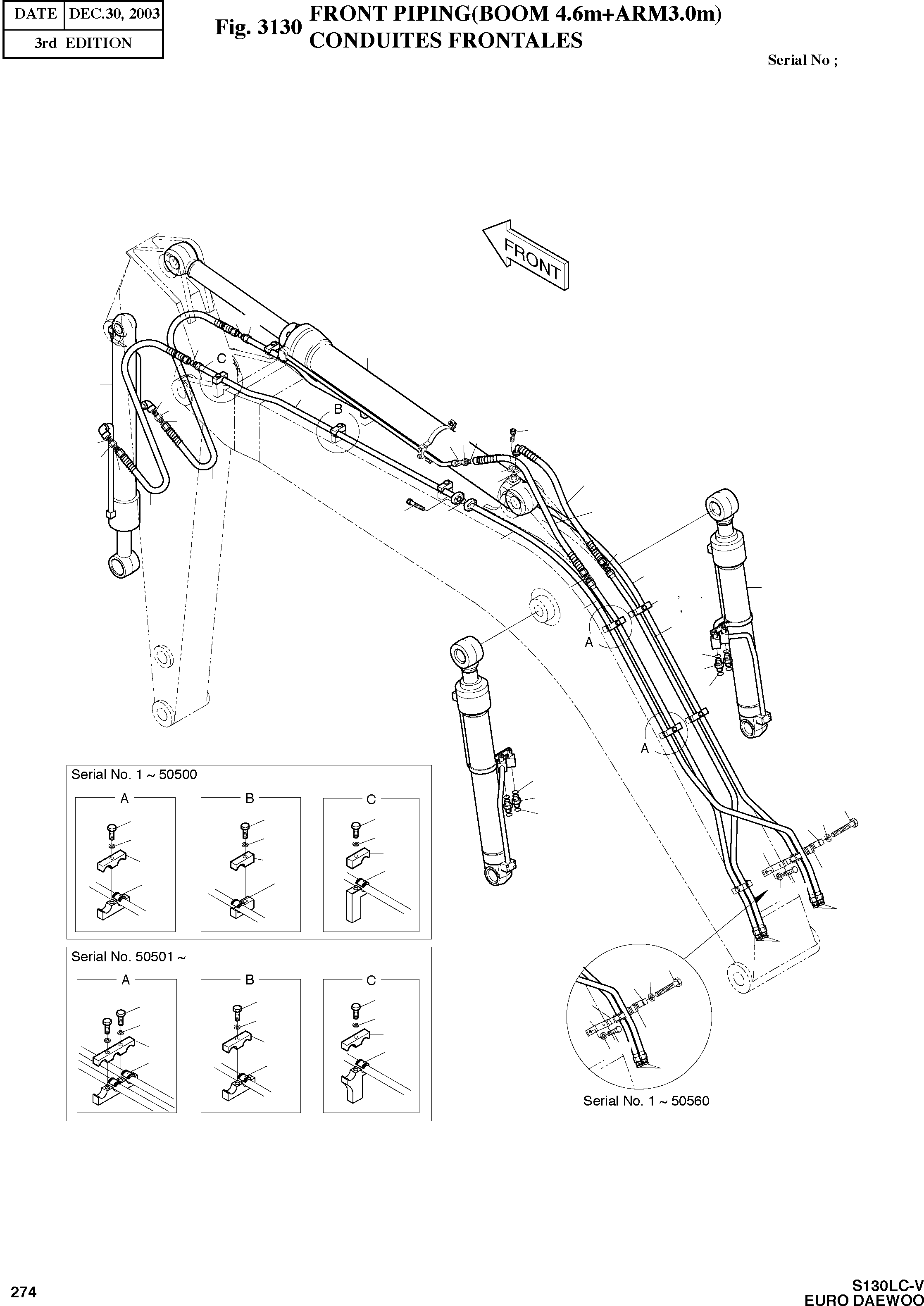

FRONT PIPING(BOOM 4.6m+ARM3.0m)(3130 : 3130)
Наименование Страница Код страницы
BOOM CYLINDER-L.H (1) 4230 4230
BOOM CYLINDER-R.H (1) 4240 4240
ARM CYLINDER (1) 4250 4250
BUCKET CYLINDER 4260 4260

Номер на схеме Каталожный номер Название Количество Детали
? 2400-1822A PIPING;FRONT A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE FRONTALES
LNKOP:
IP:
? 2440-9230 CYLINDER;BOOM(L.H.) 1
SERIAL: 1-50280
SERIAL_NO: 1~50280
ICA: I
REP_PNO: 2440-9230A
REP_QTY: 1
SC:
desc: VERIN DE FLECHE
LNKOP:
IP:
? 2440-9230A CYLINDER;BOOM(L.H.) 1
SERIAL: 50281-50560
SERIAL_NO: 50281~50560
ICA: I
REP_PNO: 2440-9230B
REP_QTY: 1
SC:
desc: VERIN DE FLECHE
LNKOP:
IP: O
 4230
? 2440-9230B CYLINDER;BOOM(L.H.) 1
SERIAL: 50561-
SERIAL_NO: 50561~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE FLECHE
LNKOP:
IP:
? 2440-9231 CYLINDER;BOOM(R.H.) 1
SERIAL: 1-50280
SERIAL_NO: 1~50280
ICA: I
REP_PNO: 2440-9231A
REP_QTY: 1
SC:
desc: VERIN DE FLECHE
LNKOP:
IP:
? 2440-9231A CYLINDER;BOOM(R.H.) 1
SERIAL: 50281-50560
SERIAL_NO: 50281~50560
ICA: I
REP_PNO: 2440-9231B
REP_QTY: 1
SC:
desc: VERIN DE FLECHE
LNKOP:
IP: O
 4240
? 2440-9231B CYLINDER;BOOM(R.H.) 1
SERIAL: 50561-
SERIAL_NO: 50561~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE FLECHE
LNKOP:
IP:
? 2440-9232 CYLINDER;ARM 1
SERIAL: 1-50280
SERIAL_NO: 1~50280
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE BALANCIER
LNKOP:
IP:
? 2440-9232A CYLINDER;ARM 1
SERIAL: 50281-
SERIAL_NO: 50281~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE BALANCIER
LNKOP:
IP: O
 4250
? 2440-9233 CYLINDER;BUCKET 1
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE GODET
LNKOP:
IP:
? 2440-9233A CYLINDER;BUCKET 1
SERIAL: 50151-50280
SERIAL_NO: 50151~50280
ICA: I
REP_PNO: 2440-9233B
REP_QTY: 1
SC:
desc: VERIN DE GODET
LNKOP:
IP:
? 2440-9233B CYLINDER;BUCKET 1
SERIAL: 50281-50580
SERIAL_NO: 50281~50580
ICA: I
REP_PNO: 440-00398
REP_QTY: 1
SC:
desc: VERIN DE GODET
LNKOP:
IP:
? 440-00398 CYLINDER;BUCKET 1
SERIAL: 50581-
SERIAL_NO: 50581~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VERIN DE GODET
LNKOP:
IP: O
 4260
? 2140-1296A PIPE;ARM CROWD 1
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO: 2140-1296B
REP_QTY: 1
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1296B PIPE;ARM CROWD 1
SERIAL: 50151-
SERIAL_NO: 50151~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1297A PIPE;ARM DUMP 1
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO: 2140-1297B
REP_QTY: 1
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1297B PIPE;ARM DUMP 1
SERIAL: 50151-
SERIAL_NO: 50151~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1298 PIPE;BUCKET CROWD 1
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO: 2140-1298A
REP_QTY: 1
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1298A PIPE;BUCKET CROWD 1
SERIAL: 50151-
SERIAL_NO: 50151~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1299 PIPE;BUCKET DUMP 1
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO: 2140-1299A
REP_QTY: 1
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1299A PIPE;BUCKET DUMP 1
SERIAL: 50151-
SERIAL_NO: 50151~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1330 PIPE;BUCKET 2
SERIAL: 1-50500
SERIAL_NO: 1~50500
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2140-1269B PIPE;BUCKET 2
SERIAL: 50501-
SERIAL_NO: 50501~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU
LNKOP:
IP:
? 2184-1200D31 HOSE 730L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1196D65 HOSE 870L 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1196D6 HOSE 1900L 2
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO: 2184-1196D68
REP_QTY: 2
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2184-1196D68 HOSE 2100L 2
SERIAL: 50151-
SERIAL_NO: 50151~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? 2197-1519 BRACKET 2
SERIAL: 1-50150
SERIAL_NO: 1~50150
ICA: I
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2197-1519A BRACKET 2
SERIAL: 50151-50560
SERIAL_NO: 50151~50560
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2197-2092 BRACKET 2
SERIAL: 50561-
SERIAL_NO: 50561~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 2124-1599 CLAMP 8
SERIAL: 1-50500
SERIAL_NO: 1~50500
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
? 2124-1599 CLAMP 4
SERIAL: 50501-50560
SERIAL_NO: 50501~50560
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
? 2124-1599 CLAMP 2
SERIAL: 50561-
SERIAL_NO: 50561~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
? 2124-1601A CLAMP 6
SERIAL: 1-50500
SERIAL_NO: 1~50500
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
? 124-00171 CLAMP 6
SERIAL: 50501-
SERIAL_NO: 50501~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
? 2161-2250 RUBBER 36
SERIAL: 1-50180
SERIAL_NO: 1~50180
ICA: I
REP_PNO: 2161-2250A
REP_QTY: 36
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 2161-2250A RUBBER 36
SERIAL: 50181-
SERIAL_NO: 50181~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 2181-9079 FLANGE;SPLIT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FLASQUE EN DEUX PARTIES
LNKOP:
IP:
? 2181-2627D1 ADAPTER 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8030121 O-RING 11
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000231 O-RING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2181-4133D3 ADAPTER 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RACCORD
LNKOP:
IP:
? S8030081 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000181 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 2180-1026D2 O-RING 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S2212361 BOLT;SOCKET M10X1.5X35 8
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? S2212266 BOLT;SOCKET M10X1.5X30 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS CREUX
LNKOP:
IP:
? S0561353 BOLT M12X1.75X80 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S0560853 BOLT M12X1.75X55 10
SERIAL: 1-50500
SERIAL_NO: 1~50500
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S0560853 BOLT M12X1.75X55 14
SERIAL: 50501-
SERIAL_NO: 50501~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S5102703 WASHER;SPRING M12 14
SERIAL: 1-50500
SERIAL_NO: 1~50500
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE GROWER
LNKOP:
IP:
? S5102703 WASHER;SPRING M12 18
SERIAL: 50501-
SERIAL_NO: 50501~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE GROWER
LNKOP:
IP:
? S0515253 BOLT M12X1.75X30 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? 124-00166 CLAMP 4
SERIAL: 50501-
SERIAL_NO: 50501~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ATTACHE DE TUYAU
LNKOP:
IP:
