Содержание Other: DOOSAN-DAEWOO 460(460)

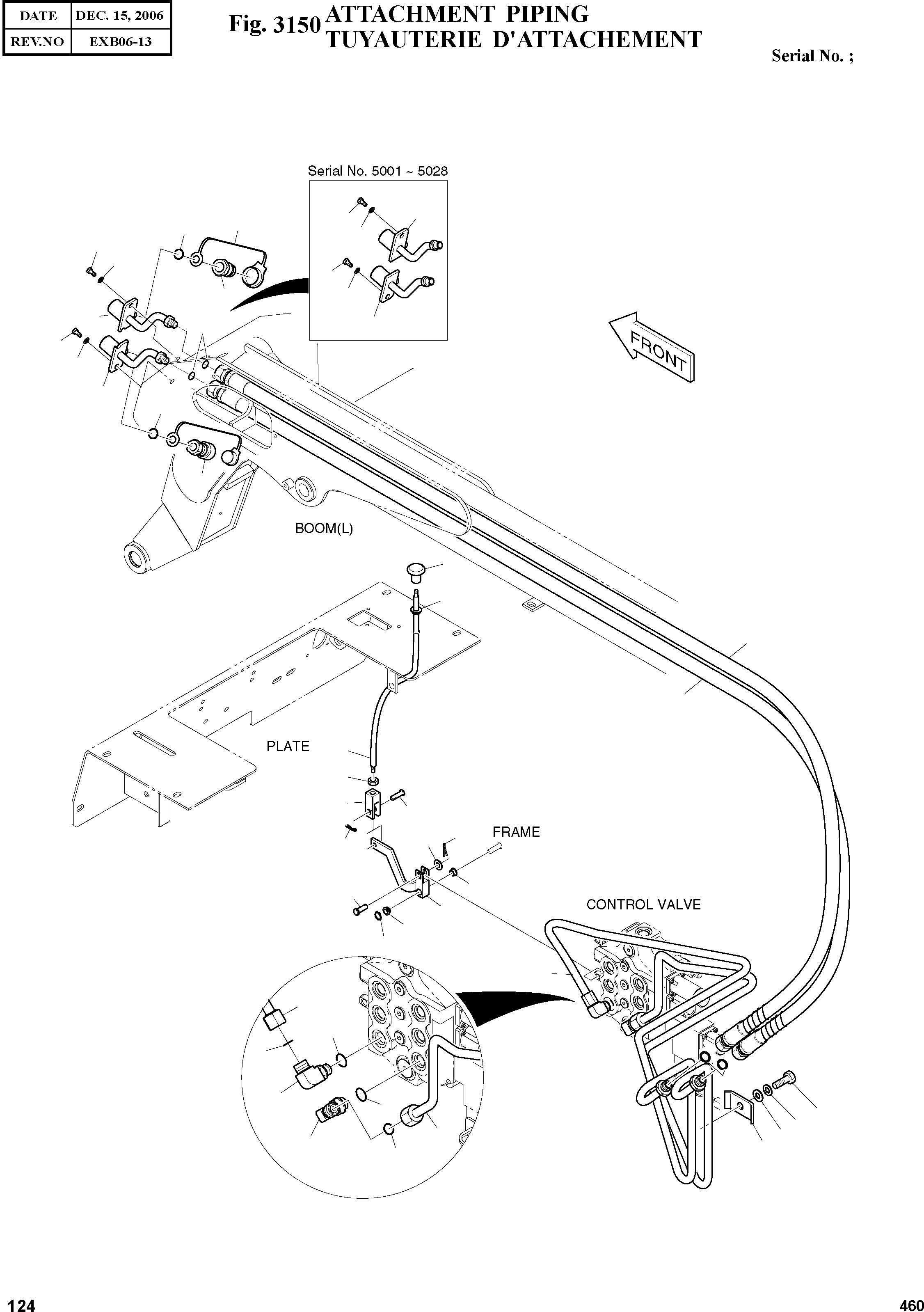

ATTACHMENT PIPING(3150 : 3150)
Номер на схеме Каталожный номер Название Количество Детали
? K1020622A ATTACH PIPING A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: ATTACHEZ LA TUYAUTERIE
LNKOP:
IP:
? K1020414 TUBE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUBE
LNKOP:
IP:
? K1020413 TUBE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUBE
LNKOP:
IP:
? DS2011428 HOSE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? K1023062 ELBOW 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? K1020281 COUPLER;MALE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUPLEUR MASCULIN
LNKOP:
IP:
? S8040081 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8040121 O-RING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? K1020282 COUPLER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: FIXATION DE POMPE
LNKOP:
IP:
? S8030101 O-RING 6
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? K1021063 BUSHING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: DOUILLE
LNKOP:
IP:
? K1022467 CAP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? K1022468 CAP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUCHON
LNKOP:
IP:
? K1021169 ROD 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TIGE
LNKOP:
IP:
? K1021082 LEVER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: LEVIER
LNKOP:
IP:
? K1023038 BEARING 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PALIER
LNKOP:
IP:
? S6540800 RING RETAINING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RETENUE D'ANNEAU
LNKOP:
IP:
? S5760301 PIN 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GOUJON
LNKOP:
IP:
? S5000613 WASHER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? S180333H PIN 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GOUJON
LNKOP:
IP:
? S5760201 PIN 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: GOUJON
LNKOP:
IP:
? K1022296 CLAMP 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COLLIER
LNKOP:
IP:
? S0509363 BOLT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? K1023146 WASHER;HARDENED 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? S5110503 WASHER;SPRING 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S4012543 NUT 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU
LNKOP:
IP:
? K1023033 KNOB 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOUTON
LNKOP:
IP:
? K1019050 YOKE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ETRIER
LNKOP:
IP:
? K1021799 TUBE 1
SERIAL: 5001-5028
SERIAL_NO: 5001~5028
ICA: I
REP_PNO: K1021799A
REP_QTY: 1
SC:
desc: TUBE
LNKOP:
IP:
? K1021799A TUBE 1
SERIAL: 5029-
SERIAL_NO: 5029~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUBE
LNKOP:
IP:
? K1021800 TUBE 1
SERIAL: 5001-5028
SERIAL_NO: 5001~5028
ICA: I
REP_PNO: K1021800A
REP_QTY: 1
SC:
desc: TUBE
LNKOP:
IP:
? K1021800A TUBE 1
SERIAL: 5029-
SERIAL_NO: 5029~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUBE
LNKOP:
IP:
? S0512063 BOLT 2
SERIAL: 5001-5028
SERIAL_NO: 5001~5028
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S0512063 BOLT 3
SERIAL: 5029-
SERIAL_NO: 5029~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? K1023147 WASHER;HARDENED 2
SERIAL: 5001-5028
SERIAL_NO: 5001~5028
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
? K1023147 WASHER;HARDENED 3
SERIAL: 5029-
SERIAL_NO: 5029~
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE
LNKOP:
IP:
