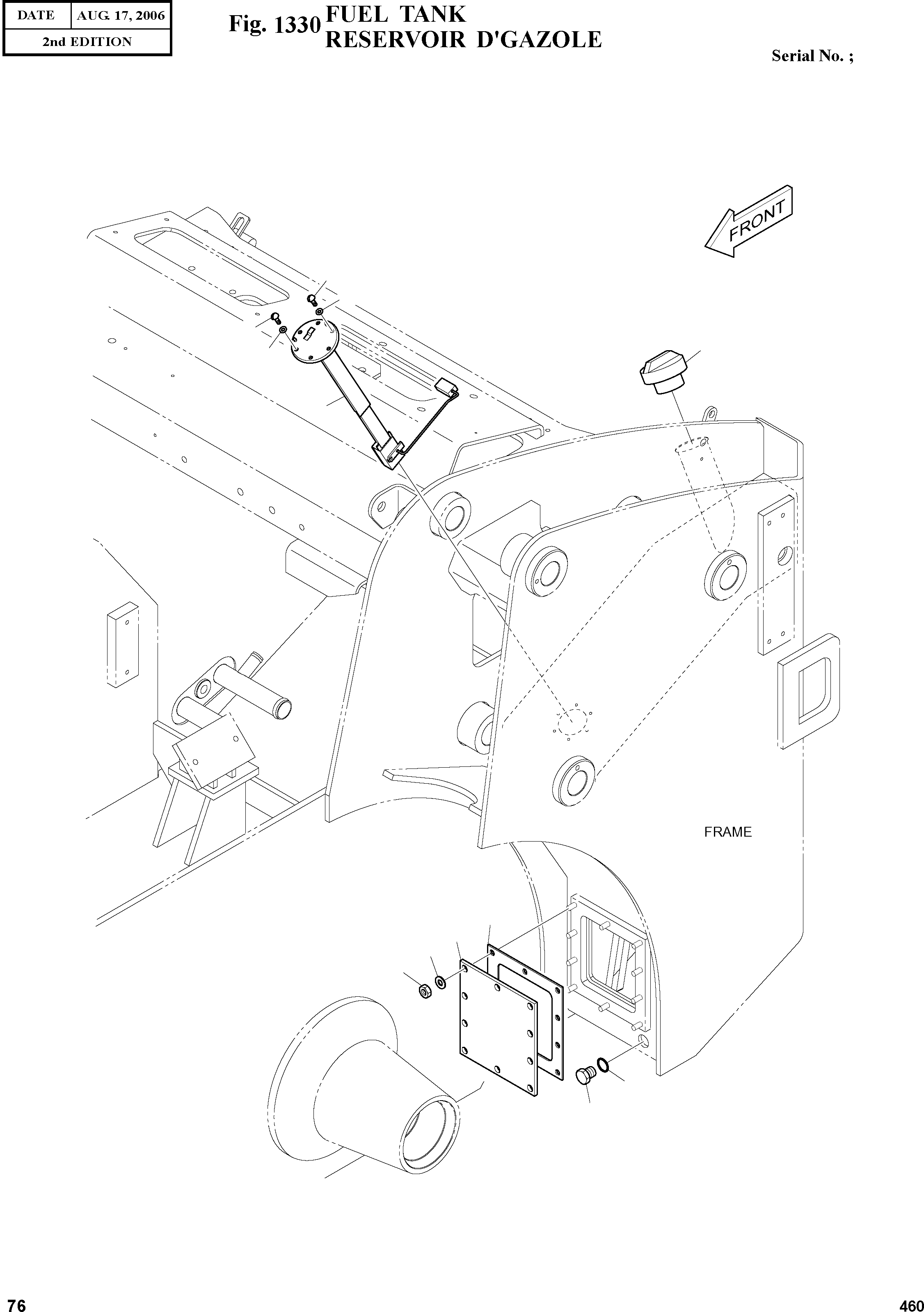

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | K1021626 | FUEL CAP | A/R | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: D desc: CARBURANT CAP LNKOP: IP: |
|||
| ? | S8040061 | O-RING | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: JOINT TORIQUE LNKOP: IP: |
|||
| ? | K1023098 | PLUG;MAGNETIC | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: BOUCHON LNKOP: IP: |
|||
| ? | K1019083 | CAP;FUEL | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: CHAPEAU LNKOP: IP: |
|||
| ? | S4016543 | NUT | 10 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: ECROU LNKOP: IP: |
|||
| ? | K1021675 | SENSOR;FUEL | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: CAPTEUR LNKOP: IP: |
|||
| ? | K1023134 | WASHER | 5 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE LNKOP: IP: |
|||
| ? | S3400859 | SCREW | 6 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: VIS LNKOP: IP: |
|||
| ? | K1020829 | PLATE;COVER | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: PLAQUE LNKOP: IP: |
|||
| ? | K1020830 | GASKET | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: JOINT LNKOP: IP: |
|||
| ? | K1023146 | WASHER;HARDENED | 10 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: RONDELLE LNKOP: IP: |
|||
| ? | K1023163 | GASKET | 1 | SERIAL_NO: ICA: REP_PNO: REP_QTY: SC: desc: JOINT LNKOP: IP: |
