Содержание Other: DOOSAN-DAEWOO DX190W(DX190W)

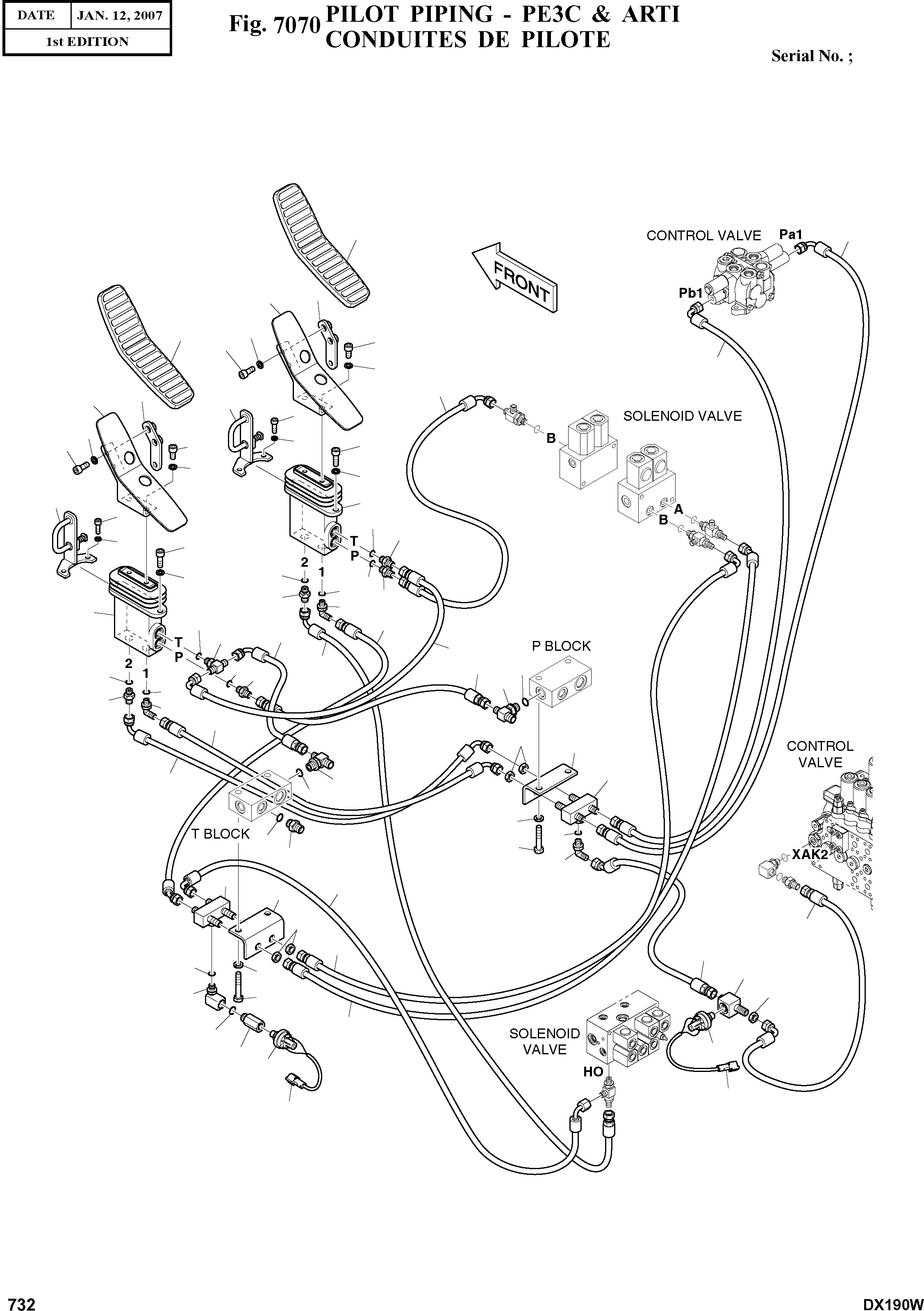

PILOT PIPING - PE3C & ARTI(7070 : 7070)
Наименование Страница Код страницы
PEDAL VALVE 4560 4560

Номер на схеме Каталожный номер Название Количество Детали
? K1024291A PE3C PIPING;PILOT(ARTI) A/R
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC: D
desc: CONDUITES DE PILOTE
LNKOP:
IP:
? K1017382 VALVE;PEDAL 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VANNE
LNKOP:
IP: O
 4560
? 420-00476 VALVE;SHUTTLE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: VANNE
LNKOP:
IP:
? 195-02779A BRACKET 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? 549-00010 SWITCH;PRESSURE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: AVERTISSEUR
LNKOP:
IP:
? K1015404 BRACKET 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: SUPPORT
LNKOP:
IP:
? K1001871B PLATE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? K1001873A PLATE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: PLAQUE
LNKOP:
IP:
? 161-00386 RUBBER;PEDAL 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CAOUTCHOUC
LNKOP:
IP:
? 181-00182 REDUCER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: REDUCTEUR
LNKOP:
IP:
? 121-00010D7 NUT 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ECROU 6 PANS
LNKOP:
IP:
? 2181-1126D7 ADAPTER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-1126D14 ADAPTER 5
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:
? 2181-1702D4 ELBOW 3
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? 2181-2281D1 TEE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? 2181-2281D3 TEE 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TE
LNKOP:
IP:
? DS2308018 ELBOW 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: COUDE
LNKOP:
IP:
? S0558766 BOLT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S2209066 BOLT;SOCKET 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON
LNKOP:
IP:
? S2211866 BOLT;SOCKET 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON
LNKOP:
IP:
? S2212066 BOLT;SOCKET 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON
LNKOP:
IP:
? S2212266 BOLT;SOCKET 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON
LNKOP:
IP:
? S5102603 WASHER;SPRING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5110503 WASHER;SPRING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: RONDELLE ELASTIQUE
LNKOP:
IP:
? S5110603 WASHER 12
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: CALE
LNKOP:
IP:
? DS2093387 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093338 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2092044 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2108008 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093339 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2091060 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093036 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2091071 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2094162 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093261 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093070 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093389 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093164 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? DS2093376 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? S0558866 BOLT 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: BOULON A 6 PANS
LNKOP:
IP:
? S8000111 O-RING 10
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? S8000141 O-RING 4
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: JOINT TORIQUE
LNKOP:
IP:
? 530-00067 HARNESS;PRESS SWITCH 2
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: HARNAIS
LNKOP:
IP:
? DS2108010 HOSE 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: TUYAU FLEXIBLE
LNKOP:
IP:
? K1025319 ADAPTER 1
SERIAL_NO:
ICA:
REP_PNO:
REP_QTY:
SC:
desc: ADAPTEUR
LNKOP:
IP:

Other: DOOSAN-DAEWOO / DX190W(DX190W) / PILOT PIPING - PE3C & ARTI(7070 : 7070)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
