Номер на схеме	Каталожный номер	Название	Количество

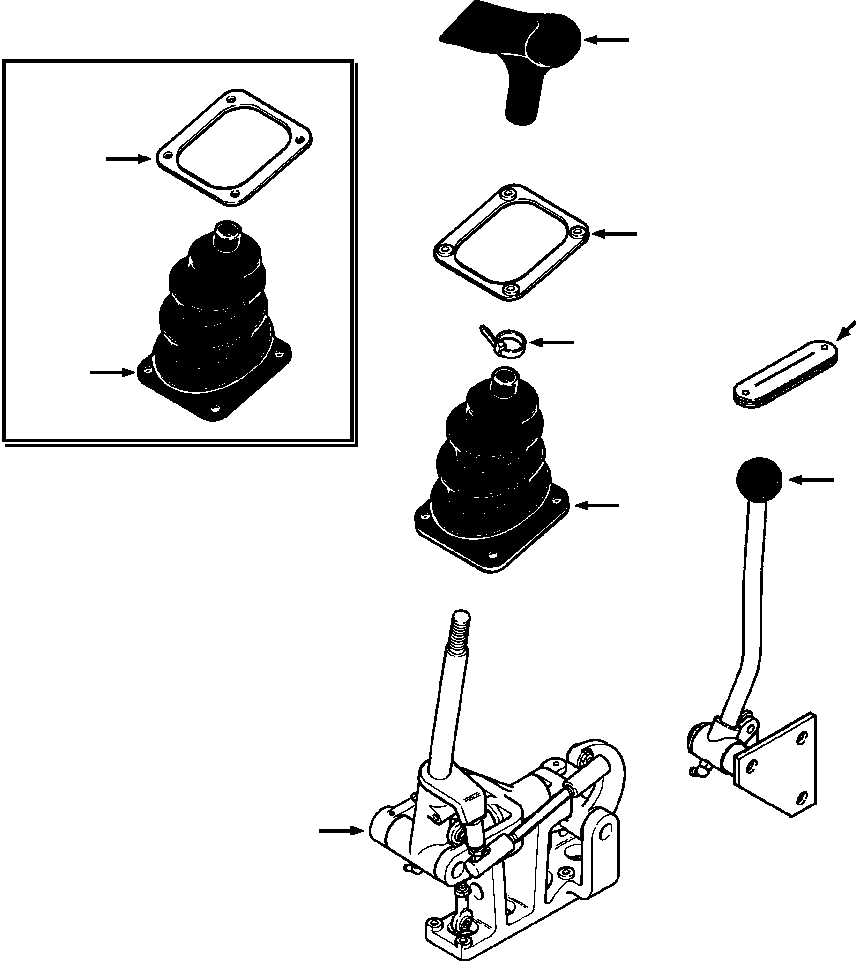

?	(1270 686 H91)	EQUIPMENT VALVE CONTROLS	-54	F1
?		• VALVE, FOUR SPOOL (SEE PG 10-044)	-29	10BHTD9H.001
?	26 269 R1	• BOLT, HEX - 5/16NCx2-3/4	3
?	25 533 R1	• WASHER, FLAT - 5/16	3
?		• CONTROL BRACKET AND HANDLE (SEE PG 10-036)	-29	10AZ789H.003
?	25 483 R1	• BOLT, HEX - 1/4NCx1	2
?	25 487 R1	• BOLT, HEX - 1/4NCx1-1/2	2
?	25 532 R1	• WASHER, FLAT - 1/4	4
?		• BOOT, LEVER	1	F2
?	1269 024 H2	• BOOT, LEVER	1	F3
?	935 522 C1	• STRAP, TIE	1
?		• RETAINER, BOOT - W/O MOUNTING INSERTS	1	F4
?	25 752 R1	• BOLT, HEX - 1/4NCx1/2	4
?	25 532 R1	• WASHER, FLAT - 1/4	4
?	1306 898 H91	• RETAINER, BOOT - WITH MOUNTING INSERTS	1
?	160 544	• SCREW, PAN - 1/4NCx3/4	4
?		• LEVER, FOURTH SPOOL (SEE PG 10-040)	-29	10AZTD9H.002
?	114-43-48381	GROMMET	1
?
?		F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.
?
?
?		F2 - WITHOUT LAMINATED BOTTOM, FOR REPLACEMENT ORDER THE FOLLOWING PART;
?	1269 024 H2	BOOT, LEVER	1
?
?		IT IS ALSO RECOMMENDED THAT THE BOOT RETAINER BE REPLACED WITH THE
?		FOLLOWING PARTS;
?	1306 898 H91	RETAINER, BOOT - WITH MOUNTING INSERTS	1
?	160 544	SCREW, PAN - 1/4NCx3/4	4
?
?		F3 - WITH LAMINATED BOOT BOTTOM.
?
?
?		F4 - FOR REPLACEMENT OF THE INSERTLESS BOOT RETAINER, ORDER THE FOLLOWING
?		PARTS;
?	1306 898 H91	RETAINER, BOOT - WITH MOUNTING INSERTS	1
?	160 544	SCREW, PAN - 1/4NCx3/4	4
?
?		IT IS RECOMMENDED THAT THE BOOT BE REPLACED WITH THE FOLLOWING PART;
?	1269 024 H2	BOOT, LEVER	1
