| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

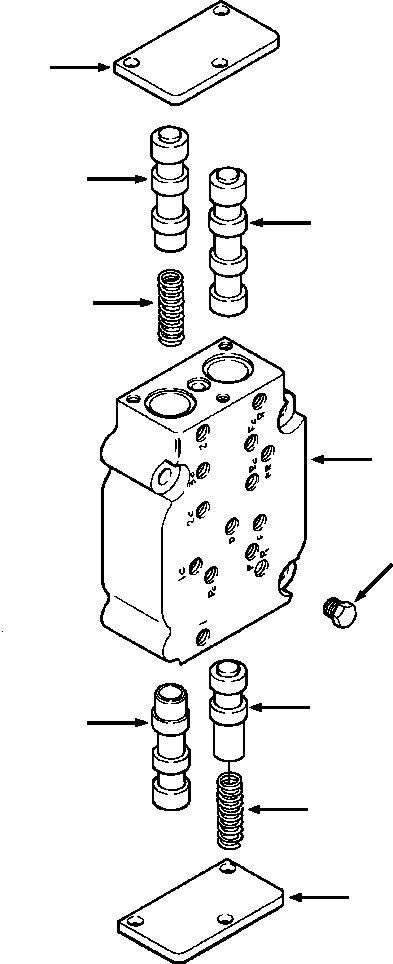

| ? | 662 246 C92 | VALVE ASSY, RANGE SELECTOR | 1 | ||||
| ? | (NSS) | • HOUSING, VALVE | 1 | ||||
| ? | 372 821 R1 | • RING, SEAL - LARGE | 4 | ||||
| ? | 252 738 R1 | • RING, SEAL - SMALL | 2 | ||||
| ? | 662 245 C1 | • SPRING, RETURN | 2 | ||||
| ? | (NSS) | • SPOOL, SPEED | 2 | ||||
| ? | (NSS) | • SPOOL, DIRECTIONAL - LONG | 1 | ||||
| ? | (NSS) | • SPOOL, DIRECTIONAL - SHORT | 1 | ||||
| ? | 662 241 C1 | • COVER, END | 2 | ||||
| ? | 25 228 R1 | • BOLT, HEX - 5/16NCx3/4 | 6 | ||||
| ? | 116 120 | • WASHER, LOCK - 5/16 | 6 | ||||
| ? | 444 613 | • PLUG, PORT | A/R |
