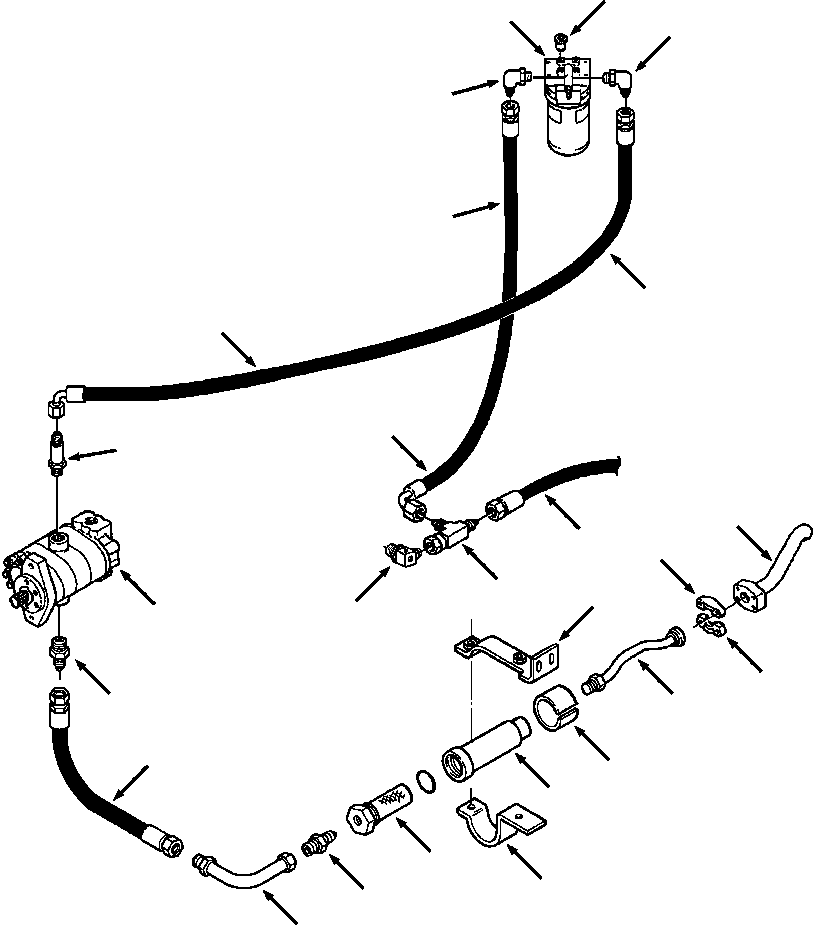

| Наименование | Страница | Код страницы |
|---|---|---|
| FIG. F2300-04A6 DRIVE TRAIN PIPING - WITH ROPS CANOPY - NEUTRAL START VALVE LINES | F-040 | F2300-04A6 |
| FIG. F2300-06A0 PRESSURE FILTER | F-046 | F2300-06A0 |
| FIG. F2300-07A0 CHARGE AND SCAVENGER PUMP | F-050 | F2300-07A0 |
| FIG. F2320-51A0 TRANSMISSION - COMPLETE ASSEMBLY | F-064 | F2320-51A0 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 709 475 C1 | TUBE, RMF SUCTION | 1 | SN: P096338- |
|||
| ? | 343 909 R1 | RING, SEAL | 1 | SN: P096338- |
|||
| ? | 877 949 C2 | FLANGE, SPLIT | 2 | SN: P096338- |
|||
| ? | 24 621 R1 | BOLT, HEX - 3/8NCx2-1/4 | 4 | SN: P096338- |
|||
| ? | 1312 748 H91 | HOSE, TUBE TO STRAINER | 1 | SN: P096338- |
|||
| ? | 343 906 R1 | RING, SEAL - AT TUBE | 1 | SN: P096338- |
|||
| ? | 1312 757 H91 | HOUSING, SUCTION STRAINER. | 1 | SN: P096338- |
|||
| ? | 307 915 R1 | RING, SEAL STRAINER INLET | 1 | SN: P096338- |
|||
| ? | 1269 422 H1 | STRAINER, SUCTION | 1 | SN: P096338- |
|||
| ? | 307 916 R1 | RING, SEAL STRAINER OUTLET | 1 | SN: P096338- |
|||
| ? | 1312 753 H91 | BRACKET | 1 | SN: P096338- |
|||
| ? | 24 861 R1 | BOLT - 1/2NCx1-1/4 | 2 | SN: P096338- |
|||
| ? | 25 536 R1 | WASHER - 1/2 | 2 | SN: P096338- |
|||
| ? | 1312 760 H1 | INSULATOR | 1 | SN: P096338- |
|||
| ? | 1312 761 H1 | CLIP, CONNECTION | 1 | SN: P096338- |
|||
| ? | 24 840 R1 | BOLT - 3/8NCx1 | 2 | SN: P096338- |
|||
| ? | 25 534 R1 | WASHER - 3/8 | 2 | SN: P096338- |
|||
| ? | 9410 208 | CONNECTOR, STRAINER | 1 | SN: P096338- |
|||
| ? | 307 915 R1 | RING, SEAL CONNECTOR | 1 | SN: P096338- |
|||
| ? | 1312 751 H91 | TUBE, PUMP INLET | 1 | SN: P096338- |
|||
| ? | 606 447 C91 | HOSE, PUMP INLET | 1 | SN: P096338- |
|||
| ? | 875 685 C1 | CONNECTOR, PUMP INLET | 1 | SN: P096338- |
|||
| ? | 296 247 R1 | RING, SEAL PUMP INLET | 1 | SN: P096338- |
|||
| ? | 9410 231 | CONNECTOR | 1 | SN: P096338- |
|||
| ? | 368 269 R1 | RING, SEAL | 1 | SN: P096338- |
|||
| ? | 1280 340 H1 | HOSE, PUMP TO FILTER | 1 | SN: P096338- |
|||
| ? | 150 776 C91 | ELBOW, 90 DEG INLET | 2 | SN: P096338- |
|||
| ? | 296 247 R1 | RING, SEAL | 2 | SN: P096338- |
|||
| ? | 1201 625 C1 | HOSE, FILTER TO TEE | 1 | SN: P096338- |
|||
| ? | 317 262 R1 | CLAMP, HOSE | 1 | SN: P096338- |
|||
| ? | 9410 335 | TEE, AT VALVE | 1 | SN: P096338- |
|||
| ? | 140 483 H1 | BOLT, HEX - 3/8NCx1-1/4 | 2 | SN: P096338- |
|||
| ? | 178 372 R1 | WASHER, FLAT - 27/64 | 4 | SN: P096338- |
|||
| ? | 625 875 C1 | MOUNT, SHOCK | 2 | SN: P096338- |
|||
| ? | 306 132 C2 | STRAP, TIE | A/R | SN: P096338- |
