| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

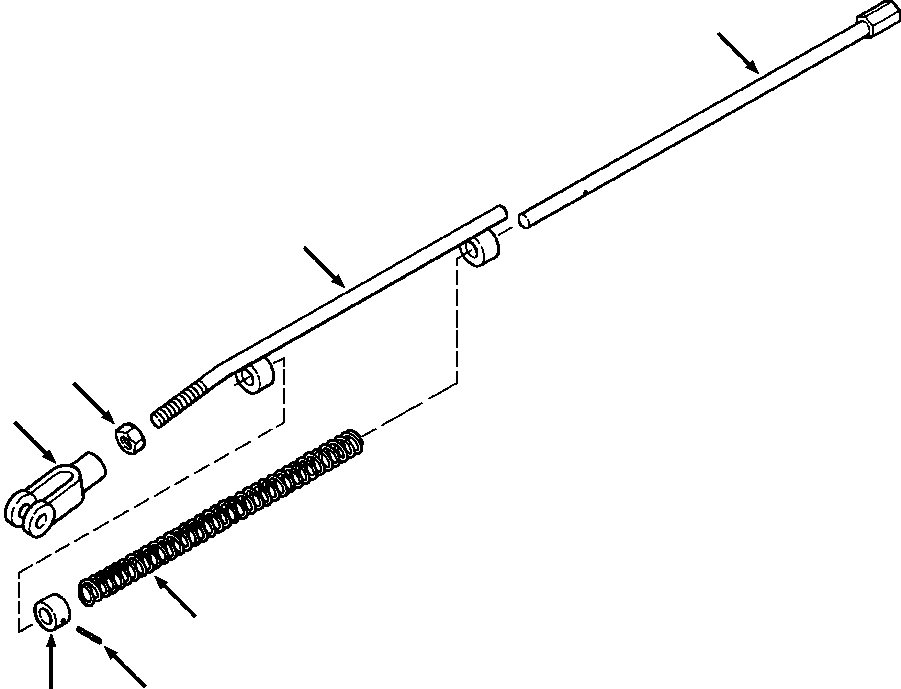

| ? | 1280 359 H91 | THROTTLE ASSEMBLY, OVER TRAVEL | 1 | SN: P096338- |
F1 | ||
| ? | 1258 321 H91 | • ROD, OVER TRAVEL | 1 | SN: P096338- |
|||
| ? | 1258 325 H91 | • BODY, OVER TRAVEL | 1 | SN: P096338- |
|||
| ? | 104 038 | • CLEVIS, ROD END - 3/8 | 1 | SN: P096338- |
|||
| ? | 25 523 R1 | • NUT, HEX - 3/8NF | 1 | SN: P096338- |
|||
| ? | 1258 324 H1 | • BOSS, SPRING STOP | 1 | SN: P096338- |
|||
| ? | 20 081 R1 | • PIN, SPRING - 3/32x3/4 | 1 | SN: P096338- |
|||
| ? | 1258 326 H1 | • SPRING, OVER TRAVEL | 1 | SN: P096338- |
|||
| ? | |||||||
| ? | F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | ||||||
| ? |
