| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

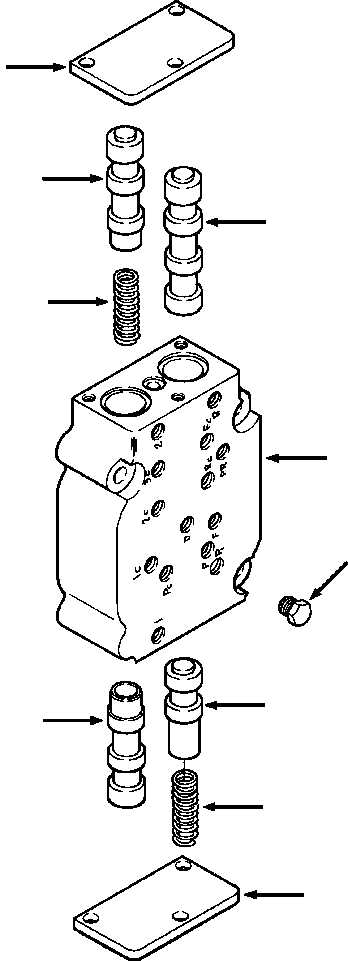

| ? | 662 246 C92 | VALVE ASSEMBLY, RANGE SELECTOR | 1 | SN: P096338- |
|||
| ? | (NSS) | • HOUSING, VALVE | 1 | SN: P096338- |
|||
| ? | 372 821 R1 | • RING, SEAL - LARGE | 4 | SN: P096338- |
|||
| ? | 252 738 R1 | • RING, SEAL - SMALL | 2 | SN: P096338- |
|||
| ? | 662 245 C1 | • SPRING, RETURN | 2 | SN: P096338- |
|||
| ? | (NSS) | • SPOOL, SPEED | 2 | SN: P096338- |
|||
| ? | (NSS) | • SPOOL, DIRECTIONAL LONG | 1 | SN: P096338- |
|||
| ? | (NSS) | • SPOOL, DIRECTIONAL SHORT | 1 | SN: P096338- |
|||
| ? | 662 241 C1 | • COVER, END | 2 | SN: P096338- |
|||
| ? | 25 228 R1 | • BOLT, HEX 5/16NCx3/4 | 6 | SN: P096338- |
|||
| ? | 116 120 | • WASHER, LOCK 5/16 | 6 | SN: P096338- |
|||
| ? | 444 613 | • PLUG, PORT | A/R | SN: P096338- |
