| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 1311 100 H91 | CONVERTER ASSEMBLY, TORQUE | 1 | SN: P096338-- |
F1 | ||
| ? | 1311 155 H1 | • TURBINE | 1 | SN: P096338-- |
|||
| ? | 1311 156 H1 | • DISC, COUPLING | 1 | SN: P096338-- |
|||
| ? | 1311 154 H1 | • HOUSING, ONE PIECE | 1 | SN: P096338-- |
|||
| ? | 1311 242 H1 | • IMPELLER | 1 | SN: P096338-- |
|||
| ? | 01252-60820 | • BOLT, SOCKET HEAD, HEX M8X20 | 12 | SN: P096338-- |
|||
| ? | 1500 158 H1 | • WASHER, PLATE | 1 | SN: P096338-- |
|||
| ? | 1311 243 H1 | • STATOR | 1 | SN: P096338-- |
|||
| ? | 1311 159 H1 | • HUB, STATOR | 1 | SN: P096338-- |
|||
| ? | 30 022 R1 | • BOLT, HEX - M10x35 | 6 | SN: P096338-- |
|||
| ? | 30 176 R1 | • WASHER, M10 | 6 | SN: P096338-- |
|||
| ? | 1311 160 H1 | • SHAFT, OUTPUT | 1 | SN: P096338-- |
|||
| ? | 1311 161 H1 | • GEAR, DRIVE | 1 | SN: P096338-- |
|||
| ? | 1311 162 H1 | • COVER, HUB | 1 | SN: P096338-- |
|||
| ? | 30 003 R1 | • BOLT, HEX - M8x25 | 6 | SN: P096338-- |
|||
| ? | 30 175 R1 | • WASHER, M8 | 6 | SN: P096338-- |
|||
| ? | 1311 163 H1 | • RETAINER, YOKE | 1 | SN: P096338-- |
|||
| ? | 30 050 R1 | • BOLT, HEX - M8x20 | 1 | SN: P096338-- |
|||
| ? | 30 177 R1 | • WASHER, LOCK - M12 | 1 | SN: P096338-- |
|||
| ? | 1311 164 H1 | • GASKET | 1 | SN: P096338-- |
|||
| ? | 1311 165 H1 | • RING, SEAL | 1 | SN: P096338-- |
|||
| ? | 1311 244 H1 | • YOKE, OUTPUT | 1 | SN: P096338-- |
|||
| ? | 1311 167 H1 | • GEAR, PUMP DRIVE | 2 | SN: P096338-- |
|||
| ? | 1311 168 H1 | • RING, SPACER | 1 | SN: P096338-- |
|||
| ? | 1311 169 H1 | • SHIM, COVER | A/R | SN: P096338-- |
|||
| ? | 1311 170 H1 | • HOUSING, DRIVE | 1 | SN: P096338-- |
|||
| ? | 30 005 R1 | • BOLT, HEX - M8x35 | 24 | SN: P096338-- |
|||
| ? | 30 175 R1 | • WASHER, M8 | 24 | SN: P096338-- |
|||
| ? | 1311 171 H1 | • ENCLOSURE, INTERNAL | 1 | SN: P096338-- |
|||
| ? | 30 002 R1 | • BOLT, HEX - M8x20 | 12 | SN: P096338-- |
|||
| ? | 30 175 R1 | • WASHER, M8 | 12 | SN: P096338-- |
|||
| ? | 1311 172 H1 | • PLATE, LOCK | 1 | SN: P096338-- |
|||
| ? | 30 019 R1 | • BOLT, HEX - M10x20 | 6 | SN: P096338-- |
|||
| ? | 1311 173 H1 | • RING, THRUST | 1 | SN: P096338-- |
|||
| ? | 1311 174 H1 | • RING, SEAL | 1 | SN: P096338-- |
|||
| ? | ST 265 | • BEARING, BALL | 1 | SN: P096338-- |
|||
| ? | 205 368 R91 | • BEARING, BALL | 1 | SN: P096338-- |
|||
| ? | ST 235 | • BEARING, BALL | 1 | SN: P096338-- |
|||
| ? | ST 205 A | • BEARING, BALL | 2 | SN: P096338-- |
|||
| ? | 1311 237 H1 | • BEARING, ROLLER | 2 | SN: P096338-- |
|||
| ? | 1311 236 H1 | • BEARING, THRUST ROLLER | 2 | SN: P096338-- |
|||
| ? | 1501 139 H1 | • O-RING, 280 X 3 | 1 | SN: P096338-- |
|||
| ? | 1501 140 H1 | • 0-RING, 320 X 3 | 1 | SN: P096338-- |
|||
| ? | 1501 162 H1 | • O-RING, 125 X 3 | 1 | SN: P096338-- |
|||
| ? | 1501 138 H1 | • O-RING, 28 X 5 | 1 | SN: P096338-- |
|||
| ? | 1311 232 H1 | • SEAL, OIL | 1 | SN: P096338-- |
|||
| ? | 1311 231 H1 | • SEAL, OIL | 1 | SN: P096338-- |
|||
| ? | 933 029 R1 | • RING, RETAINING | 2 | SN: P096338-- |
|||
| ? | 933 075 R1 | • RING, RETAINING | 1 | SN: P096338-- |
|||
| ? | 933 076 R1 | • RING, RETAINING | 4 | SN: P096338-- |
|||
| ? | 933 077 R1 | • RING, RETAINING | 1 | SN: P096338-- |
|||
| ? | |||||||

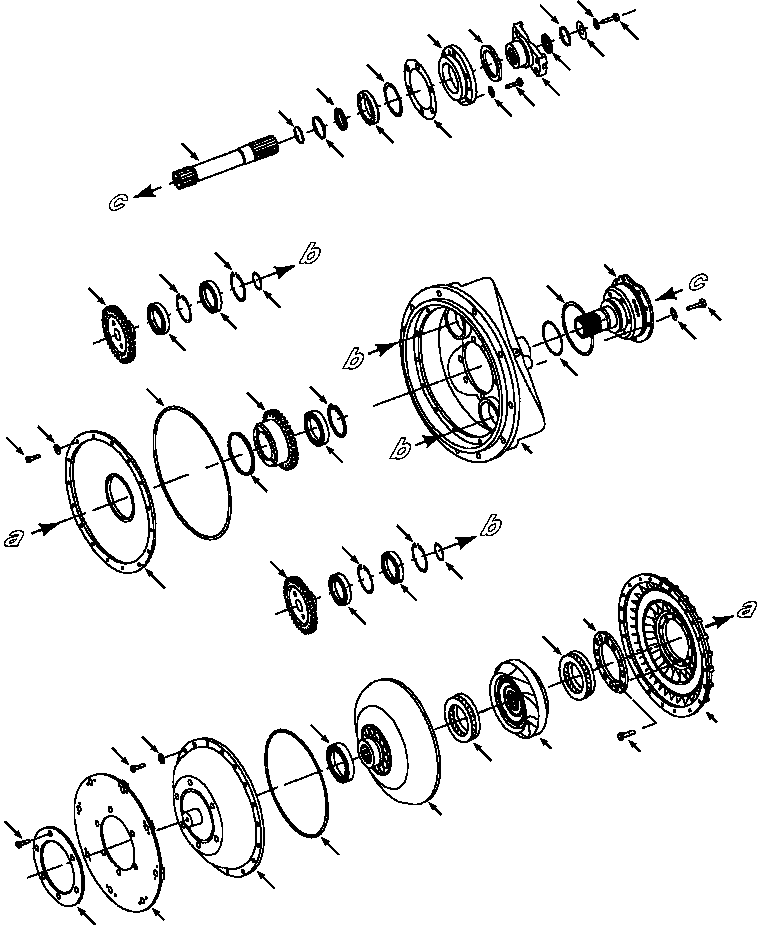

| ? | F1 - OPTIONAL WITH TWO PIECE HOUSING CONVERTER 1277 088 H91. (SEE FIG. F2310-51A0) | F2310-51A0 | |||||
| ? |
