| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

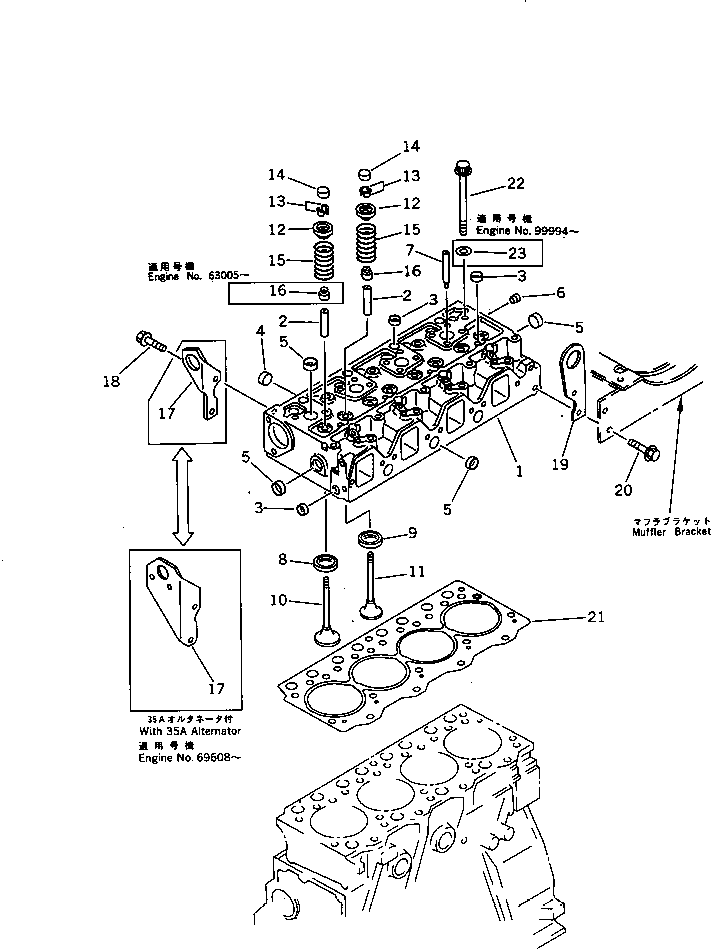

| ? | 6204-13-1100 | CYLINDER HEAD ASS'Y | 1 | SN: 49965- |
|||
| ? | ☆ | • HEAD,CYLINDER | 1 | SN: 49965- |
|||
| ? | 6204-19-1310 | • GUIDE,VALVE | 8 | SN: 49965- |
|||
| ? | 07046-41810 | • PLUG | 9 | SN: 49965- |
|||
| ? | 07046-42216 | • PLUG | 3 | SN: 49965- |
|||
| ? | 07046-42516 | • PLUG | 11 | SN: 49965- |
|||
| ? | 02720-40104 | • PLUG | 1 | SN: 49965- |
|||
| ? | 6204-11-8910 | • PIPE,BREATHER | 2 | SN: 49965- |
|||
| ? | 6207-11-1430 | SEAT,INTAKE VALVE (STD) | A/R | SN: 49965- |
|||
| ? | 6207-19-1430 | SEAT ? 0.25MM,INTAKE VALVE (OS) | A/R | SN: 49965- |
|||
| ? | 6207-18-1430 | SEAT ? 0.50MM,INTAKE VALVE (OS) | A/R | SN: 49965- |
|||
| ? | 6207-11-1440 | SEAT,EXHAUST VALVE (STD) | A/R | SN: 49965- |
|||
| ? | 6207-19-1440 | SEAT ? 0.25MM,EXHAUST VALVE (OS) | A/R | SN: 49965- |
|||
| ? | 6207-18-1440 | SEAT ? 0.50MM,EXHAUST VALVE (OS) | A/R | SN: 49965- |
|||
| ? | 6207-41-4110 | VALVE,INTAKE | 4 | SN: 49965- |
|||
| ? | 6204-43-4210 | VALVE,EXHAUST | 4 | SN: 49965- |
|||
| ? | 6204-41-4510 | SEAT,SPRING | 8 | SN: 49965- |
|||
| ? | 6204-41-4520 | COTTER | 16 | SN: 49965- |
|||
| ? | 6204-41-4550 | CAP | 8 | SN: 96123- |
|||
| ? | 6204-41-4431 | SPRING,VALVE | 8 | SN: 49965- |
|||
| ? | 6204-41-4540 | SEAL,VALVE (K1) | 8 | SN: 63005- |
|||
| ? | 6204-41-4540 | SEAL,VALVE (K1) | 4 | SN: 49965-63004 |
|||
| ? | 6206-11-1930 | HANGER,FRONT | 1 | SN: 49965- |
|||
| ? | 6207-11-1910 | HANGER,FRONT (WITH 35A ALTERNATOR) | 1 | SN: 69608- |
|||
| ? | 01435-01020 | BOLT | 2 | SN: 49965- |
|||
| ? | 6206-11-1910 | HANGER,REAR | 1 | SN: 49965- |
|||
| ? | 01435-01025 | BOLT | 2 | SN: 49965- |
|||
| ? | 6205-11-1813 | GASKET,HEAD (K1) | 1 | SN: 49965- |
|||
| ? | (☒6205-11-1812) | GASKET,HEAD (K1) | 1 | SN: (49965-91929) |
|||
| ? | 6204-13-1610 | BOLT,HEAD | 17 | SN: 49965- |
|||
| ? | 01643-51232 | WASHER | 17 | SN: 99994- |
