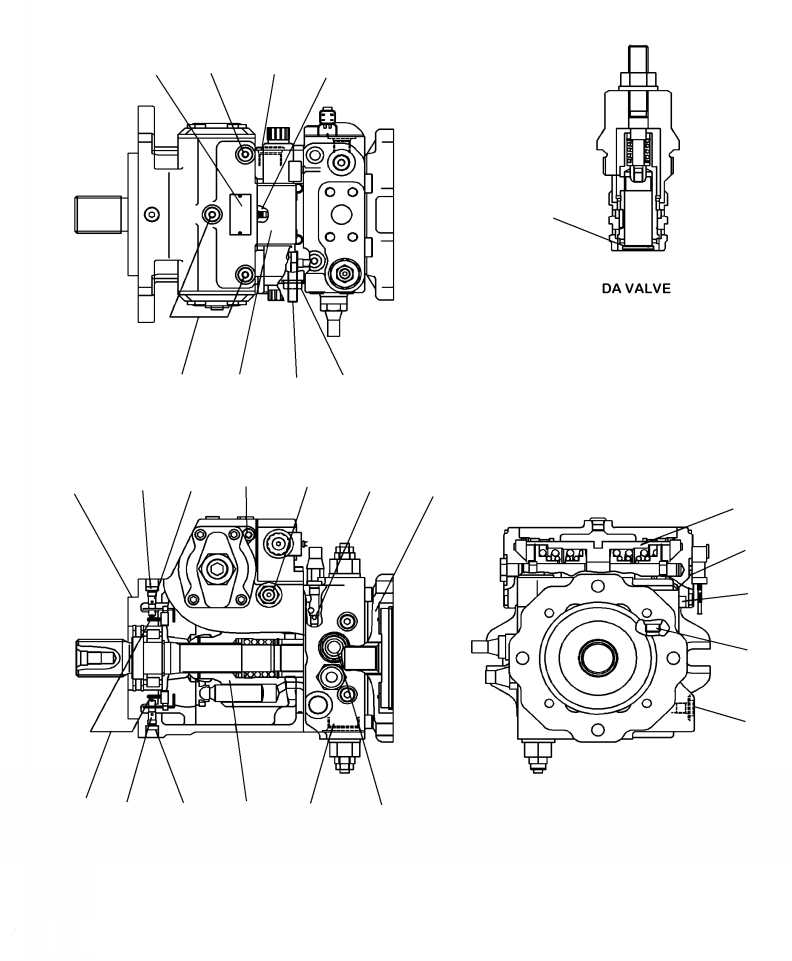

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 419-18-31101 | PUMP, VARIABLE | 1 | SN: A76001-- |
|||
| ? | • ROTARY GROUP (SEE FIG. F2430-03A0 ) | SN: A76001-- |
F2430-03A0 | ||||
| ? | • HD CONTROL (SEE FIG. F2430-04A0 ) | SN: A76001-- |
F2430-04A0 | ||||
| ? | • COVER (SEE FIG. F2430-06A0 ) | SN: A76001-- |
F2430-06A0 | ||||
| ? | • GEAR PUMP ASSEMBLY (SEE FIG. F2430-10A0 ) | SN: A76001-- |
F2430-10A0 | ||||
| ? | • VALVE (SEE FIG. F2430-13A0 ) | SN: A76001-- |
F2430-13A0 | ||||
| ? | • DA CARTRIDGE ASSEMBLY (SEE FIG. F2430-15A0 ) | SN: A76001-- |
F2430-15A0 | ||||
| ? | UC1100679859 | • HOUSING | 1 | SN: A76001-- |
|||
| ? | UC1704181927 | • ORIFICE | 1 | SN: A76001-- |
|||
| ? | UC1704497149 | • PIN | 2 | SN: A76001-- |
|||
| ? | UC4100104453 | • PLUG | 1 | SN: A76001-- |
|||
| ? | (NSS) | • • PLUG | 1 | SN: A76001-- |
|||
| ? | UC1301205004 | • • O-RING | 1 | SN: A76001-- |
|||
| ? | UC4100104426 | • PLUG | 4 | SN: A76001-- |
|||
| ? | (NSS) | • • PLUG | 1 | SN: A76001-- |
|||
| ? | UC1301169009 | • • O-RING | 1 | SN: A76001-- |
|||
| ? | UC1701544279 | • PIN | 2 | SN: A76001-- |
|||
| ? | UC1701533646 | • PLUG | 4 | SN: A76001-- |
|||
| ? | UC1700879134 | • PLUG | 1 | SN: A76001-- |
|||
| ? | UC1720356169 | • PIN | 1 | SN: A76001-- |
F1 | ||
| ? | UC1700874056 | • NUT | 1 | SN: A76001-- |
F1 | ||
| ? | UC1704267076 | • ORIFICE | 1 | SN: A76001-- |
|||
| ? | UC1181066129 | • ORIFICE | 1 | SN: A76001-- |
|||
| ? | UC4100695445 | • BUSHING ASSEMBLY | 1 | SN: A76001-- |
|||
| ? | (NSS) | • • BUSHING | 1 | SN: A76001-- |
|||
| ? | UC1301181009 | • • O-RING | 1 | SN: A76001-- |
|||
| ? | UC1100695026 | • BRACKET | 1 | SN: A76001-- |
|||
| ? | UC1301582008 | • BOLT | 1 | SN: A76001-- |
|||
| ? | (NSS) | • PLATE ASSEMBLY | 1 | SN: A76001-- |
|||
| ? | 29 | ||||||
| ? | F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEM BLY. HOWEVER, IT IS AVAILABLE AS AN INDIVID UAL PART TO AUTHORIZED DISTRIBUTORS ONLY. | 30 |
