Каталог Komatsu

Наименование	Страница	Код страницы

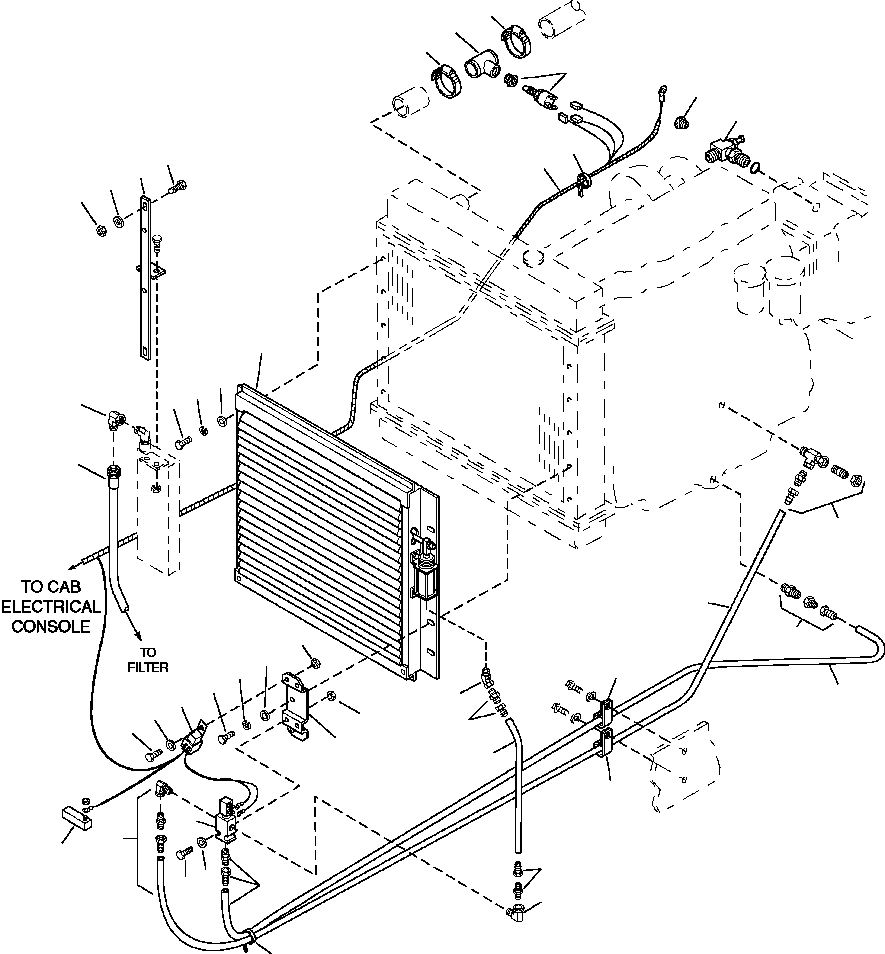

FIG. C5140-01A1 RADIATOR SHUTTER ASSEMBLY	C-016	C5140-01A1
FIG. E5100-01A8 RADIATOR SHUTTER WIRING	E-018	E5100-01A8
FIG. E5100-01A8 RADIATOR SHUTTER WIRING	E-018	E5100-01A8
FIG. E5100-01A8 RADIATOR SHUTTER WIRING	E-018	E5100-01A8
FIG. E5100-01A8 RADIATOR SHUTTER WIRING	E-018	E5100-01A8
FIG. E5100-01A8 RADIATOR SHUTTER WIRING	E-018	E5100-01A8

Номер на схеме	Каталожный номер	Название	Количество
?	681 209 C1	CLAMP, HOSE	2
?	55 952	TEE, SHUTTER STAT	1
?	935 522 C1	STRAP, TIE	8
?	141 802	TEE	1
?	1437 000 H1	ADAPTER	1
?	299 407 C1	CLAMP	2
?	25 222 R1	BOLT	1
?	25 519 R1	NUT	3
?	25 532 R1	WASHER	14
?	25 489 R1	BOLT	2
?	180 075	BOLT	10
?	120 214	WASHER	10
?	1439 055 H91	MOUNTING BRACKET, COOLER	1
?	24 840 R1	BOLT	2
?	25 544 R1	WASHER	2
?	25 522 R1	NUT	2
?	9410 282	ELBOW	1
?	1430 794 H1	HOSE ASSEMBLY	1
?	1432 208 H1	BRACKET	1
?	444 040	ELBOW	1
?	85 006 H91	HOSE - 8 IN.	1
?	151 416	ADAPTER	1
?	96 024	CONNECTOR	2
?	51 730	ADAPTER	1
?	9409 927	ELBOW	1
?	102 236	HOSE - 60 IN.	2
?	96 024	CONNECTOR	4
?	9409 931	ELBOW	1
?	51 730	ADAPTER	2
?	150 630	NIPPLE - CLOSED	1
?	9409 935	TEE	1
?	151 416	ADAPTER	1
?	9403 529	NUT	1
?	9403 401	REDUCER	1
?	1237 684 H1	ADAPTER	1

?
