| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

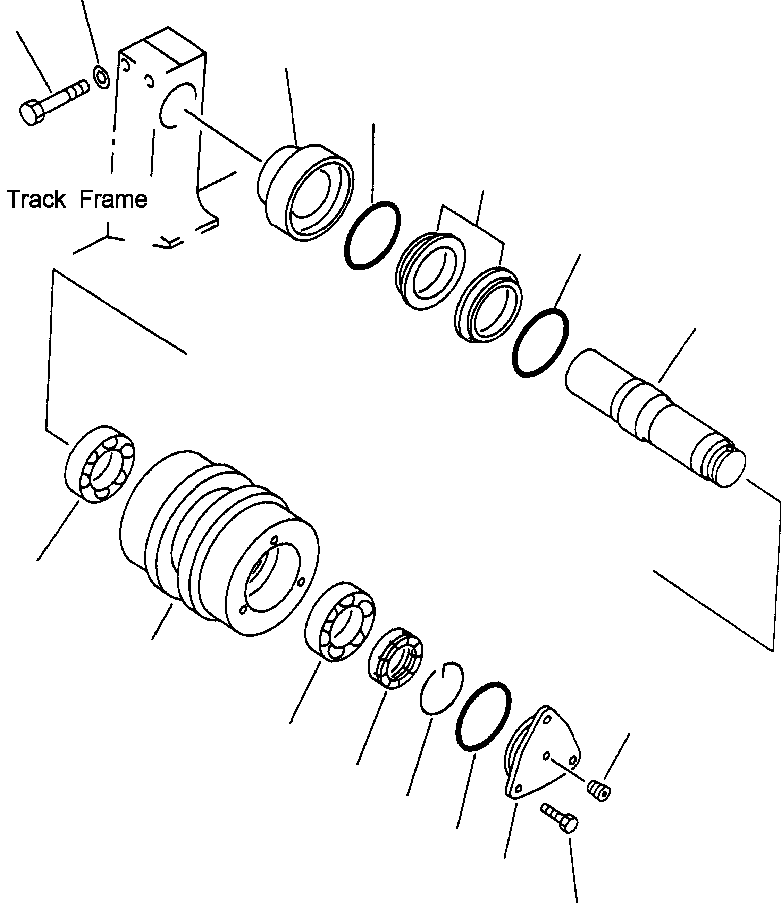

| ? | 20Y-30-08030 | ROLLER ASSEMBLY, CARRIER | 4 | ||||
| ? | 20Y-30-28350 | • ROLLER | 1 | ||||
| ? | 06002-32010 | • BEARING | 2 | ||||
| ? | 20Y-30-28360 | • SHAFT | 1 | ||||
| ? | 20Y-30-00070 | • SEAL ASSEMBLY, FLOATING | 1 | ||||
| ? | 20Y-30-00080 | • • SEAL RING ASSEMBLY | 1 | ||||
| ? | 20Y-30-00090 | • • O-RING ASSEMBLY | 1 | ||||
| ? | 20Y-30-28370 | • RING | 1 | ||||
| ? | 20Y-30-28390 | • NUT | 1 | ||||
| ? | 20Y-30-28400 | • RING | 1 | ||||
| ? | 20Y-30-28380 | • COVER | 1 | ||||
| ? | 20Y-30-28230 | • BOLT | 3 | ||||
| ? | 20Y-30-28340 | • PLUG | 1 | ||||
| ? | 20Y-30-28220 | • O-RING | 1 | ||||
| ? | 01010-31675 | BOLT | 8 | ||||
| ? | 01643-31645 | WASHER | 8 |
