| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

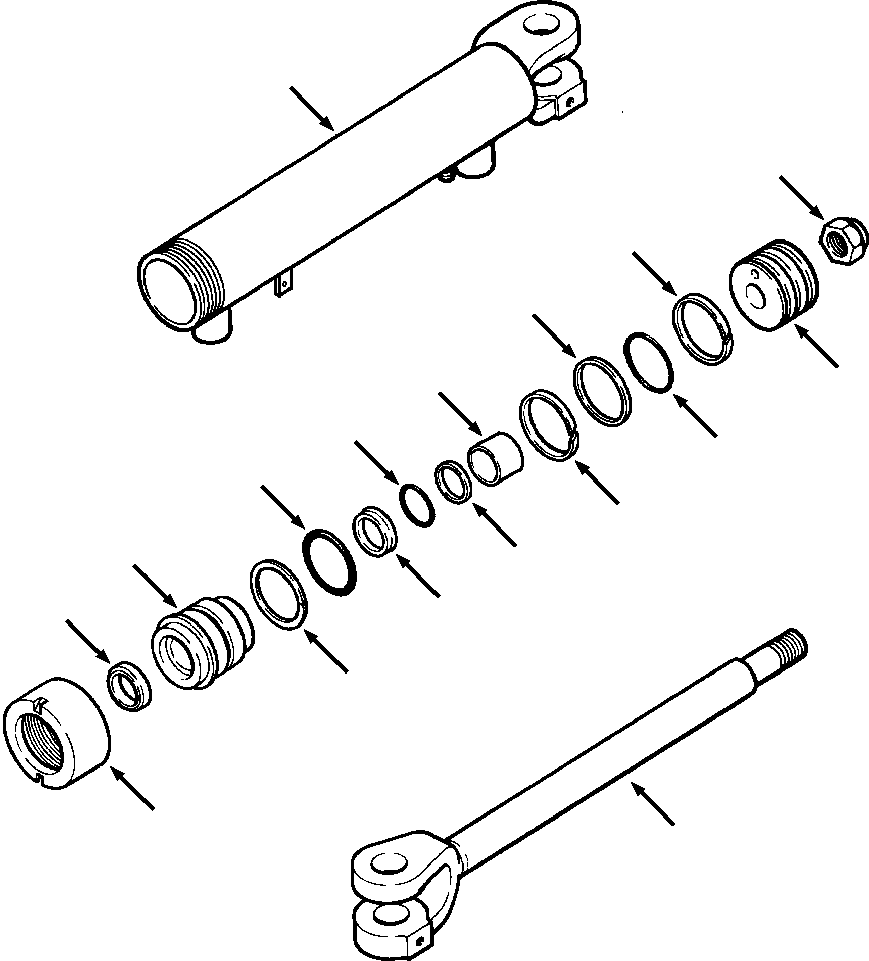

| ? | 1266 767 H92 | CYLINDER ASSY, ANGLE | 2 | ||||
| ? | 940 678 C1 | • RETAINER, GLAND | 1 | ||||
| ? | 1261 112 H1 | • GLAND, CYLINDER | 1 | ||||
| ? | 1124 732 C94 | • KIT, SEAL | 1 | ||||
| ? | (NSS) | • • WIPER, ROD | 1 | ||||
| ? | (NSS) | • • SEAL, ROD | 1 | ||||
| ? | (NSS) | • • RING, BUFFER | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, BACKUP | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, WEAR | 2 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, WEAR | 1 | ||||
| ? | 620 607 C1 | • PISTON, CYLINDER | 1 | ||||
| ? | 25 126 R1 | • NUT, LOCK - 1-1/8NF | 1 | ||||
| ? | 1266 771 H91 | • ROD, CYLINDER - OPTIONAL | 1 | ||||
| ? | 1304 052 H1 | • ROD, CYLINDER - OPTIONAL | 1 | ||||
| ? | 1266 768 H92 | • HOUSING, CYLINDER | 1 |
