| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

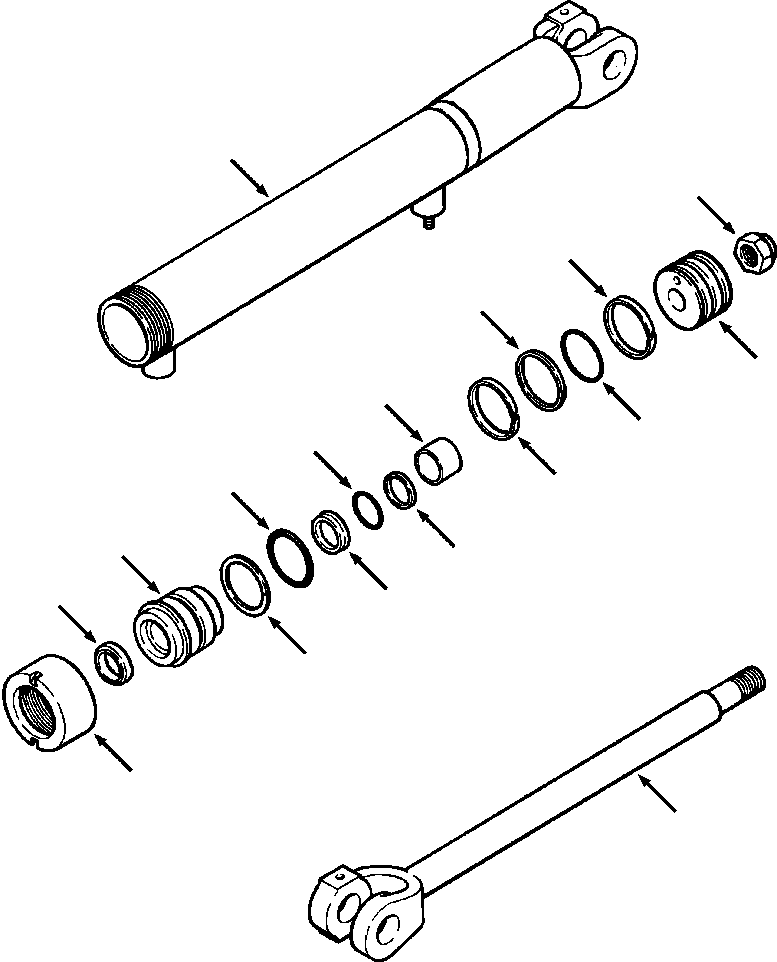

| ? | 1262 635 H91 | CYLINDER ASSY, BLADE LIFT | 2 | ||||
| ? | 944 817 C2 | • RETAINER, GLAND | 1 | ||||
| ? | 1261 116 H1 | • GLAND, CYLINDER | 1 | ||||
| ? | 626 230 C6 | • KIT, SEAL | 1 | ||||
| ? | (NSS) | • • WIPER, ROD | 1 | ||||
| ? | (NSS) | • • SEAL, ROD | 1 | ||||
| ? | (NSS) | • • RING, BUFFER | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, BACKUP | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, WEAR | 2 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, SEAL | 1 | ||||
| ? | (NSS) | • • RING, WEAR | 1 | ||||
| ? | 620 629 C1 | • PISTON, CYLINDER | 1 | ||||
| ? | 25 126 R1 | • NUT, LOCK - 1-1/8NF | 1 | ||||
| ? | 620 626 C1 | • ROD, CYLINDER | 1 | ||||
| ? | 1262 636 H91 | • HOUSING, CYLINDER | 1 |
