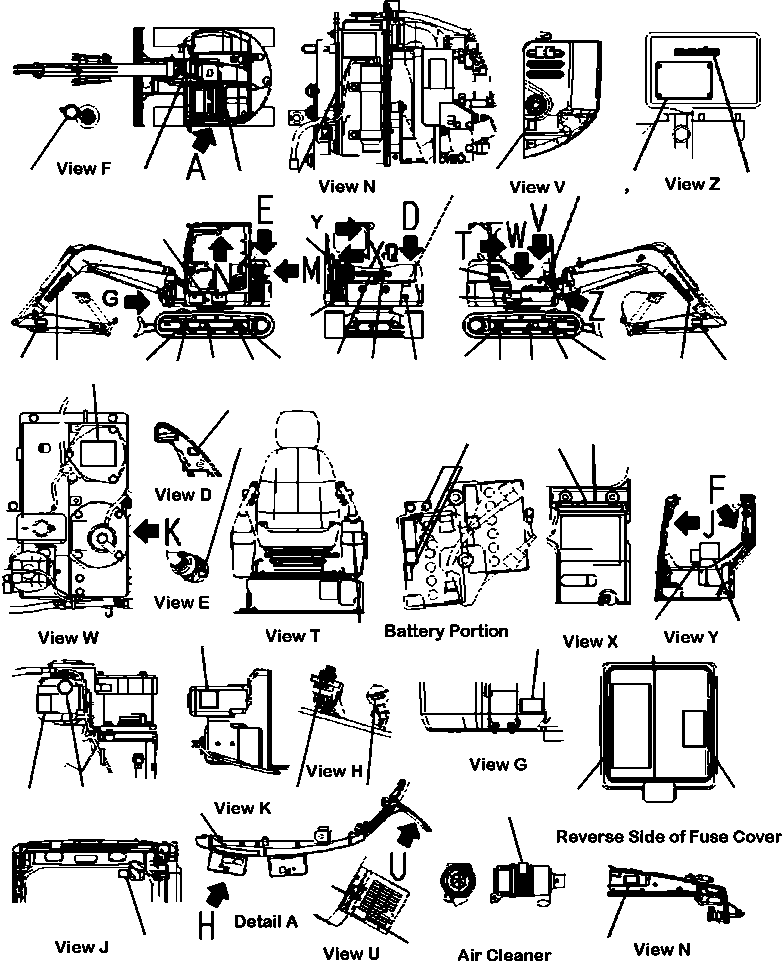

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 09690-M0063 | KOMATSU LOGO | 1 | SN: A90001-- |
|||
| ? | 09690-P0800 | KOMATSU LOGO | 1 | SN: A90001-- |
|||
| ? | 22P-00-11111 | MACHINE MODEL | 1 | SN: A90001-- |
|||
| ? | 09690-P0800 | KOMATSU LOGO | 2 | SN: A90001-- |
|||
| ? | 09690-P0450 | KOMATSU LOGO | 1 | SN: A90001-- |
|||
| ? | 09133-23000 | KEEP OUT OF TURNING AREA | 1 | SN: A90001-- |
|||
| ? | 09601-10041 | PLATE, NAME (LIMITED SUPPLY) | 1 | SN: A90001-- |
|||
| ? | 04418-03060 | SCREW | 4 | SN: A90001-- |
|||
| ? | 09134-A0881 | DANGER, KEEP OFF WORK AREA | 2 | SN: A90001-- |
|||
| ? | 22P-00-11370 | PLATE | 1 | SN: A90001-- |
|||
| ? | 22P-00-11121 | OIL CHART | 1 | SN: A90001-- |
|||
| ? | 21W-98-41720 | AIR CLEANER | 1 | SN: A90001-- |
|||
| ? | 22B-00-11420 | SWING BOOM OPERATION/SWING BRAKE RELEASE | 1 | SN: A90001-- |
|||
| ? | 09653-03001 | WARNING, HYDRAULIC TANK CAP | 1 | SN: A90001-- |
|||
| ? | 09667-03001 | CAUTION, ROTATING OBJECT | 1 | SN: A90001-- |
|||
| ? | 09652-31231 | CAUTION, DIESEL FUEL | 1 | SN: A90001-- |
|||
| ? | 09808-03000 | WARNING, BATTERY CABLES | 1 | SN: A90001-- |
|||
| ? | 09657-03003 | WARNING, TRACK ADJUSTMENT | 2 | SN: A90001-- |
|||
| ? | 09963-03001 | TAG, DANGER - DO NOT OPERATE | 1 | SN: A90001-- |
|||
| ? | 09960-00801 | LIFT POINT MARK | 4 | SN: A90001-- |
|||
| ? | 09960-00802 | TIE DOWN POINT MARK | 4 | SN: A90001-- |
|||
| ? | 21U-98-31160 | BALANCING POSITION MARK | 2 | SN: A90001-- |
|||
| ? | 22P-00-11130 | MACHING BODY LIFT POSTURE | 1 | SN: A90001-- |
|||
| ? | 22B-00-21231 | FUSE | 1 | SN: A90001-- |
|||
| ? | 09664-30011 | DANGER, BATTERY | 2 | SN: A90001-- |
|||
| ? | 22P-00-11160 | SHEET | 1 | SN: A90001-- |
|||
| ? | 22P-00-11440 | SHEET | 1 | SN: A90001-- |
|||
| ? | 20U-98-31320 | OIL LEVEL | 1 | SN: A90001-- |
|||
| ? | 11Y-98-31130 | SYMBOL, Ecot3 | 1 | SN: A90001-- |
|||
| ? | 22B-00-11340 | WASHER TANK | 1 | SN: A90001-- |
|||
| ? | 09669-0000A | SYMBOL, COOLANT FILLER | 1 | SN: A90001-- |
|||
| ? | 20Y-00-K2380 | RECOMENDED LUBRICANT | 1 | SN: A90001-- |
|||
| ? | 09659-53000 | EXPLOSIVE HAZARD, ACCUMULATOR | 1 | SN: A90001-- |
|||
| ? | 22U-00-21510 | 12V POWER | 1 | SN: A90001-- |
|||
| ? | 201-00-61320 | PLATE, CAUTION | 1 | SN: A90001-- |
|||
| ? | 09668-03001 | WARNING, RADIATOR CAP | 1 | SN: A90001-- |
|||
| ? | 14X-98-35181 | REFLECTOR | 2 | SN: A90001-- |
|||
| ? | 09642-13000 | COOLANT | 1 | SN: A90001-- |
|||
| ? | 22P-00-11310 | DO NOT RIDE ON COVER | 1 | SN: A90001-- |
|||
| ? | 22P-00-11141 | DECREASE RABBING NOISE, A/C BRACKET | 1 | SN: A90001-- |
|||
| ? | 22P-00-11150 | DECREASE RABBING NOISE, C/W | 1 | SN: A90001-- |
|||
| ? | 09803-03000 | WARNING | 1 | SN: A90001-- |
|||
| ? | 22P-00-11380 | LOCK, FRONT LOWER WINDOW | 1 | SN: A90001-- |
