Содержание Crawler Bulldozers DRESSTA TD-25G S/N P072001-P072037(TD25GUG)

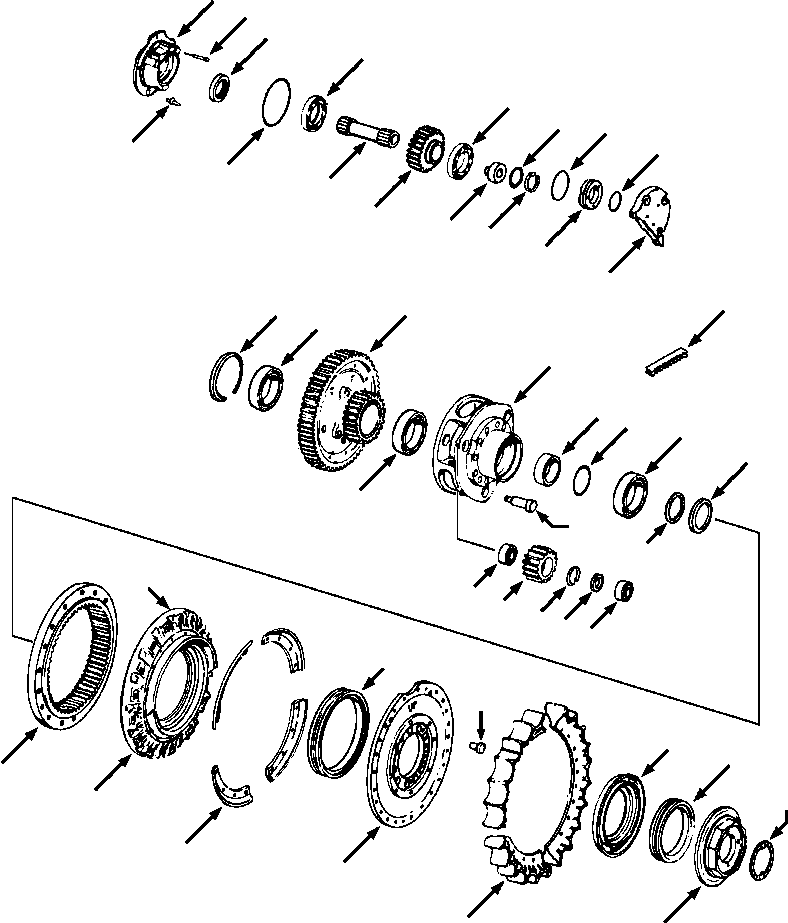

FINAL DRIVE STANDARD APPLICATION(07-086 : 07-086)
Номер на схеме Каталожный номер Название Количество Детали
? (679 129 C91) FINAL DRIVE -54 F1
? 705 369 C2 • CARRIER, INNER BEARING 2
? 705 365 C1 • BOLT, CARRIER 6
? 25 536 R1 • WASHER, FLAT - 1/2 6
? 103 374 • PIN, COTTER - 3/32x1 6
? 716 600 C1 • STUD, ECCENTRIC 4
? 25 536 R1 • WASHER, FLAT - 1/2 4
? 18 594 R1 • NUT, LOCK - 1/2NF 8
? 36 533 R1 • O-RING 2
? 741 568 C91 • SEAL, RADIAL LIP 2
? 1242 925 H91 • BEARING, ROLLER 4
? 705 368 C1 • GEAR, PINION 2
? 1237 481 H91 • RETAINER ASSY, PINION SHAFT 2
? 172 529 • • PLUG, EXPANSION 1
? 254 688 R1 • O-RING 2
? 890 830 C1 • RING, RETAINING 2
? 604 284 C1 • RETAINER, OUTER BEARING 2
? 26 311 R1 • BOLT, MOUNTING - 3/8NCx1-1/4 6
? 22 417 R1 • O-RING 2
? 1287 761 H91 • BEARING, SPHERICAL 2 a
? 1287 815 H91 • BEARING, SPHERICAL 2 b
? 1287 816 H91 • BEARING, SPHERICAL 2 c
? 1288 068 H91 • BEARING, SPHERICAL 2 d
? 1287 760 H92 • GEAR, BULL AND SUN 2
? 252 000 R1 • RING, RETAINING 2
? 1300 340 H91 • MATCHED SET, PLANET GEAR 2
? (NSS) • • GEAR, PLANET 3
? 314 915 R1 • • RING, RETAINING 3
? 716 812 C91 • BEARING, TAPERED ROLLER 12
? 716 814 C91 • • CONE, BEARING 1
? 716 813 C1 • • CUP, BEARING 1
? 716 819 C1 • SHAFT, BEARING 6
? 709 926 C1 • NUT, LOCK - 1-3/8NF 6
? 716 820 C1 • SPACER, BEARING CONE 6
? 617 921 C3 • GEAR, RING 2
? 628 435 C91 • CARRIER ASSY, PLANET 2
? 318 869 R1 • • PIN, LOCK 3
? 716 802 C91 • BEARING, TAPERED ROLLER 2
? 716 804 C91 • • CONE, BEARING 1
? 716 803 C1 • • CUP, BEARING 1 a
? 716 805 C91 • • BEARING, TAPERED ROLLER 2 b
? 716 807 C91 • • CONE, BEARING 1
? 716 806 C1 • • CUP, BEARING 1
? 322 953 R3 • SPACER, BEARING 2
? 716 808 C91 • BEARING, TAPERED ROLLER 2
? 716 809 C91 • • CONE, BEARING 1
? 716 803 C1 • • CUP, BEARING 1 a
? 716 810 C91 • BEARING, TAPERED ROLLER 2 b
? 716 811 C91 • • CONE, BEARING 1
? 716 806 C1 • • CUP, BEARING 1
? 264 681 R1 • O-RING, PIVOT SHAFT 2
? (NSS) • COVER, FINAL DRIVE GEAR 2 F2
? 25 964 R1 • BOLT, MOUNTING - 3/4NCx4-3/4 36
? 25 538 R1 • WASHER, FLAT - 3/4 36
? 659 717 C1 • COVER, FINAL DRIVE GEAR 2 F3
? 25 964 R1 • BOLT, MOUNTING - 3/4NCx4-3/4 36
? 25 538 R1 • WASHER, FLAT - 3/4 36
? 655 516 C91 • SEAL ASSY, FINAL DRIVE 2
? 716 688 C91 • • KIT, SEAL 1
? 716 689 C91 • • • KIT, RUBBER RING 1
? 651 024 C2 • CARRIER, SPROCKET 2
? 25 358 R1 • BOLT, MOUNTING - 3/4NCx3-3/4 24
? 322 954 R3 • DOWEL, CARRIER - 1.3955 TO 1.3960 IN - STANDARD 24 a
? 341 854 R2 • DOWEL, CARRIER - 1.4095 TO 1.4100 IN - OVERSIZE 24 b
? 341 855 R2 • DOWEL, CARRIER - 1.4252 TO 1.4257 IN - OVERSIZE 24 c
? 322 961 R4 • DOWEL, CARRIER - 1.4406 TO 1.4412 IN - OVERSIZE 24 d
? 341 856 R2 • DOWEL, CARRIER - 1.4563 TO 1.4568 IN - OVERSIZE 24 e
? 624 485 C3 • RETAINER, SEAL 2
? 28 200 R1 • BOLT, MOUNTING - 1/2NCx1-1/8 16
? 116 121 • WASHER, LOCK - 1/2 16
? 741 856 C91 • SEAL, FINAL DRIVE 2 a
? 662 580 C92 • SEAL ASSY, FINAL DRIVE 2 b
? 662 587 C92 • • KIT, SEAL 1
? 662 610 C92 • • • KIT, RUBBER RING 1 a
? 655 515 C91 • SEAL ASSY, FINAL DRIVE 2 b
? 662 600 C91 • • KIT, SEAL 1
? 662 633 C91 • • • KIT, RUBBER RING 1
? 316 718 R1 • WASHER, RETAINER 2
? 264 228 R2 • RING, BEARING 2
? 607 549 C3 • NUT, BEARING RETAINER 2
? 316 720 R1 • PLATE, LOCK 2
? 24 859 R1 • BOLT, MOUNTING - 1/2NCx3/4 4
? 114 608 • WASHER, LOCK - 1/2 4
? 617 942 C4 • SPROCKET, THREE PART SET 2
? 25 738 R1 • BOLT, MOUNTING - 7/8NCx3 54
? 277 606 R1 • WASHER, FLAT 108
? 25 530 R1 • NUT, HEX - 7/8NC 54
? 1237 478 H2 • COVER, DRIVE PINION 2
? 25 331 R1 • BOLT, MOUNTING - 5/8NFx1-1/2 6
? 1110 878 C1 • MAGNET 2
? 22 411 R1 • O-RING 2
? (629 561 C91) SPROCKET SEAL GUARD -54 F1
? 659 717 C1 • COVER, FINAL DRIVE GEAR 2
? 25 964 R1 • BOLT, MOUNTING - 3/4NCx4-3/4 36
? 25 538 R1 • WASHER, FLAT - 3/4 36
? 659 718 C1 • SECTOR, GUARD 8
? 24 859 R1 • BOLT, MOUNTING - 1/2NCx3/4 32
? SHAFT, STEERING OUTPUT (SEE PG 07-072) -29 07-072
?
? F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.
?
?
? F2 - PRODUCTION ONLY FINAL DRIVE GEAR COVER W/O PROVISION TO MOUNT
? SPROCKET SEAL GUARD. ORDER THE FOLLOWING PART:
? 659 717 C1 COVER, FINAL DRIVE GEAR 1
?
? F3 - SERVICE REPLACEMENT FOR PRODUCTION ONLY FINAL DRIVE GEAR COVER.
?
