Содержание Crawler Bulldozers DRESSTA TD-25G S/N P072001-P072037(TD25GUG)

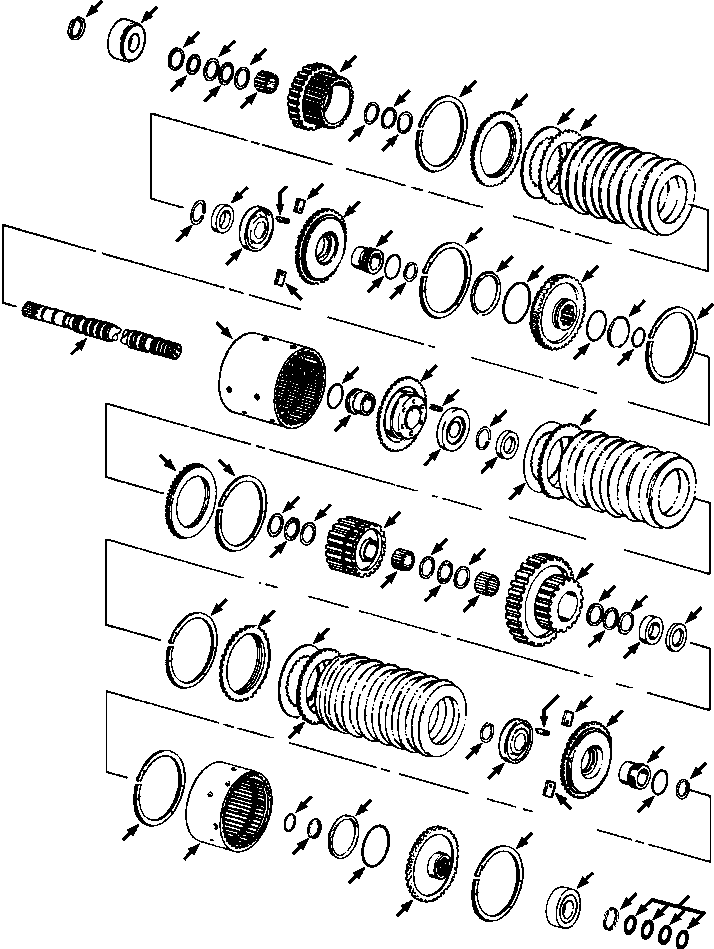

TRANSMISSION OUTPUT SHAFT(07-050 : 07-050)
Номер на схеме Каталожный номер Название Количество Детали
? 709 703 C94 SHAFT ASSY, OUTPUT 1
? 1206 957 H91 • SHAFT ASSY 1
? 20 229 R1 • • PIN, DOWEL 3
? 28 265 R1 • • PIN, SPRING - 1/8x3/8 5
? 202 451 H1 • RING, RETAINING 5
? 730 837 C1 • RACE, THRUST 11
? 233 031 R91 • BEARING, THRUST 5
? 1201 723 H91 • BEARING, NEEDLE 3
? 709 707 C1 • GEAR, 2ND SPEED 1
? 709 709 C1 • SPACER, GEAR 1
? 709 736 C1 • RING, RETAINING 2
? 654 288 C1 • PLATE, SPRING RETAINER 2
? 716 563 C1 • SPRING, RETURN - 2ND SPEED 10
? 716 563 C1 • SPRING, RETURN - 3RD SPEED 6
? 716 563 C1 • SPRING, RETURN - 1ST SPEED 12
? 716 523 C1 • SLEEVE, LUBE 2
? 709 898 C1 • STRIP, RETAINER 4
? 24 838 R1 • BOLT, MOUNTING - 3/8NCx1/2 4
? 709 712 C1 • SLEEVE, LUBE 1
? 317 923 R1 • O-RING 3 F1
? 709 710 C1 • PISTON, 2ND SPEED 1
? 709 925 C1 • SEAL, PISTON 1 F1
? 716 571 C1 • RING, SEAL 1 F1
? 716 557 C1 • HUB, CLUTCH 1
? 380 910 R1 • O-RING 1 F1
? 709 711 C1 • PISTON, 3RD SPEED 1
? 20 064 R1 • PIN, DOWEL - 3/16x1/4 2
? 658 029 C1 • SEAL, PISTON 1 F1
? 659 711 C1 • RING, SEAL 1 F1
? 716 678 C1 • GEAR, 3RD SPEED 1
? 709 716 C1 • SPACER, GEAR 1
? 331 879 R1 • RING, RETAINING 1
? 1281 360 H1 • RING, RETAINING - SOLID WITH SCREW HOLES 7
? 658 354 C2 • DISC, FRICTION - 2ND SPEED 13
? 659 592 C1 • PLATE, SEPARATOR - 2ND SPEED 12
? 658 354 C2 • DISC, FRICTION - 3RD SPEED 12
? 659 592 C1 • PLATE, SEPARATOR - 3RD SPEED 11
? 658 354 C2 • DISC, FRICTION - 1ST SPEED 14
? 659 592 C1 • PLATE, SEPARATOR - 1ST SPEED 13
? 1281 361 H1 • PLATE, CLUTCH SUPPORT 3
? 709 714 C2 • DRUM, 2ND AND 3RD 1
? 709 715 C1 • PLATE, SPRING RETAINER 1
? 709 719 C1 • GEAR, 1ST SPEED 1
? 741 581 C1 • SPACER, GEAR 1
? 741 582 C1 • SPACER, RING 1
? 709 723 C1 • PISTON, 1ST SPEED 1
? 658 020 C1 • SEAL, PISTON 1 F1
? 659 712 C1 • RING, SEAL 1 F1
? 716 562 C1 • HUB, 1ST SPEED 1
? 734 022 C1 • RING, RETAINING 1 F1
? 709 724 C2 • DRUM, 2ND AND 3RD 1
? 295 204 R1 • RING, SEAL 1
? (658 492 C91) • BEARING, TAPERED ROLLER - TIMKEN -54 F2
? 634 870 C91 • • CONE, BEARING 1
? 634 871 C1 • • CUP, BEARING 1 a
? 1298 003 H91 • BEARING, TAPERED ROLLER - STEYR 1 F3 b
? (640 006 C91) • BEARING, TAPERED ROLLER -54 F2
? 619 696 C91 • • CONE, BEARING 1
? 619 697 C1 • • CUP, BEARING 1 a
? (619 745 C91) • BEARING, TAPERED ROLLER -54 F2 b
? 619 746 C91 • • CONE, BEARING 1
? 619 747 C1 • • CUP, BEARING 1
? 1210 873 H1 • RING, TORLON - 2.366 IN GAGE DIAMETER 4 F1 a
? 1208 151 H1 • RING, TORLON - 2.386 IN GAGE DIAMETER 4 b
?
? F1 - PART OF TRANSMISSION SERVICE KIT 741 459 C94 LISTED ON PG 07-036.
?
?
? F2 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.
?
?
? F3 - REPLACE STEYR BEARING WITH OPTIONAL TIMKEN BEARING CUP AND CONE. WHEN
? REPLACING EITHER CUP OR CONE DO NOT INTERMIX FROM OPTIONAL COMPANIES.
