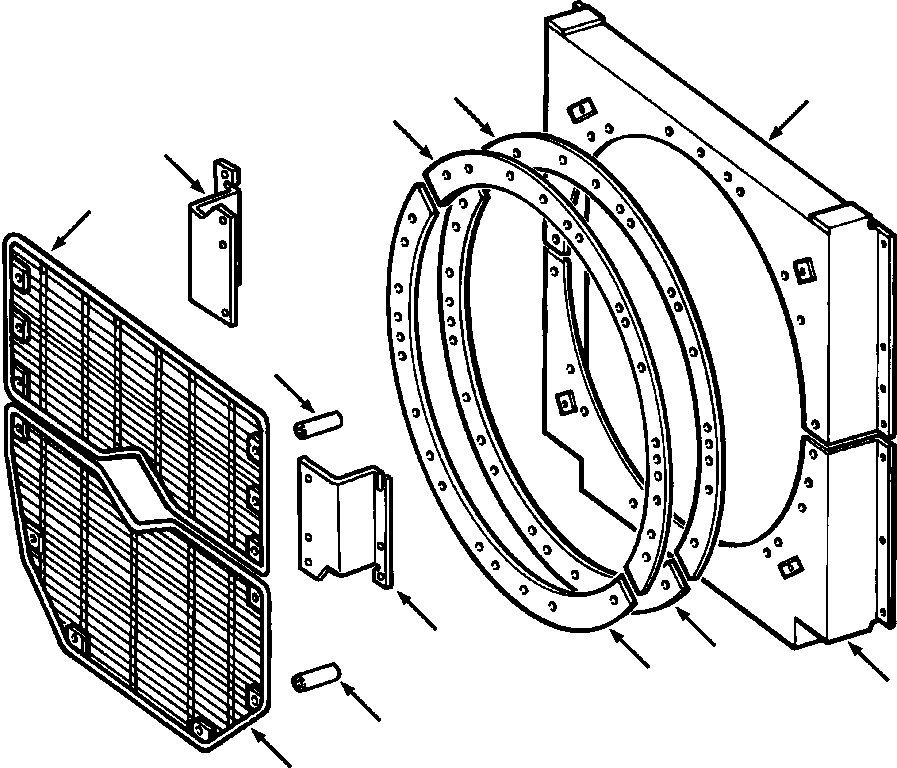

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (747 120 C91) | FAN SHROUDS AND GUARDS | -54 | F1 | |||
| ? | 737 502 C1 | • FAN SHROUD, UPPER | 1 | F2 | |||
| ? | 25 751 R1 | • BOLT, MOUNTING - 5/16NCx1-1/4 | 2 | ||||
| ? | 25 961 R1 | • BOLT, MOUNTING - 5/16NFx1/2 | 8 | ||||
| ? | 116 120 | • WASHER, LOCK - 5/16 | 8 | ||||
| ? | 106 261 | • WASHER, FLAT - 1/4 | 8 | ||||
| ? | 737 503 C1 | • FAN SHROUD, LOWER | 1 | F2 | |||
| ? | 25 751 R1 | • BOLT, MOUNTING - 5/16NCx1-1/4 | 2 | ||||
| ? | 25 961 R1 | • BOLT, MOUNTING - 5/16NFx1/2 | 6 | ||||
| ? | 116 120 | • WASHER, LOCK - 5/16 | 6 | ||||
| ? | 106 261 | • WASHER, FLAT - 1/4 | 6 | ||||
| ? | 635 679 C1 | • LINER, SHROUD | 2 | ||||
| ? | 635 680 C1 | • SUPPORT, SHROUD LINER | 2 | ||||
| ? | 26 310 R1 | • BOLT, MOUNTING - 3/8NCx1 | 17 | ||||
| ? | 128 145 | • WASHER, FLAT - 7/16 | 17 | ||||
| ? | 736 676 C3 | • BRACKET, FAN GUARD | 2 | ||||
| ? | 26 310 R1 | • BOLT, MOUNTING - 3/8NCx1 | 5 | ||||
| ? | 25 544 R1 | • WASHER, FLAT - 3/8 | 5 | ||||
| ? | 1208 145 H2 | • FAN GUARD, UPPER | 1 | ||||
| ? | 26 310 R1 | • BOLT, MOUNTING - 3/8NCx1 | 4 | ||||
| ? | 27 605 R1 | • BOLT, MOUNTING - 3/8NCx4 | 2 | ||||
| ? | 25 544 R1 | • WASHER, FLAT - 3/8 | 6 | ||||
| ? | 475 988 R1 | • SPACER, PIPE | 2 | ||||
| ? | 736 679 C1 | • FAN GUARD, LOWER | 1 | ||||
| ? | 26 310 R1 | • BOLT, MOUNTING - 3/8NCx1 | 1 | ||||
| ? | 27 605 R1 | • BOLT, MOUNTING - 3/8NCx4 | 5 | ||||
| ? | 25 544 R1 | • WASHER, FLAT - 3/8 | 6 | ||||
| ? | 475 988 R1 | • SPACER, PIPE | 5 | ||||
| ? | |||||||
| ? | F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - NOT USED ON MACHINES EQUIPPED WITH RADIATOR DEBRIS SCREEN. | ||||||
| ? |
