Содержание Crawler Bulldozers DRESSTA TD-25G S/N P072001-P072037(TD25GUG)

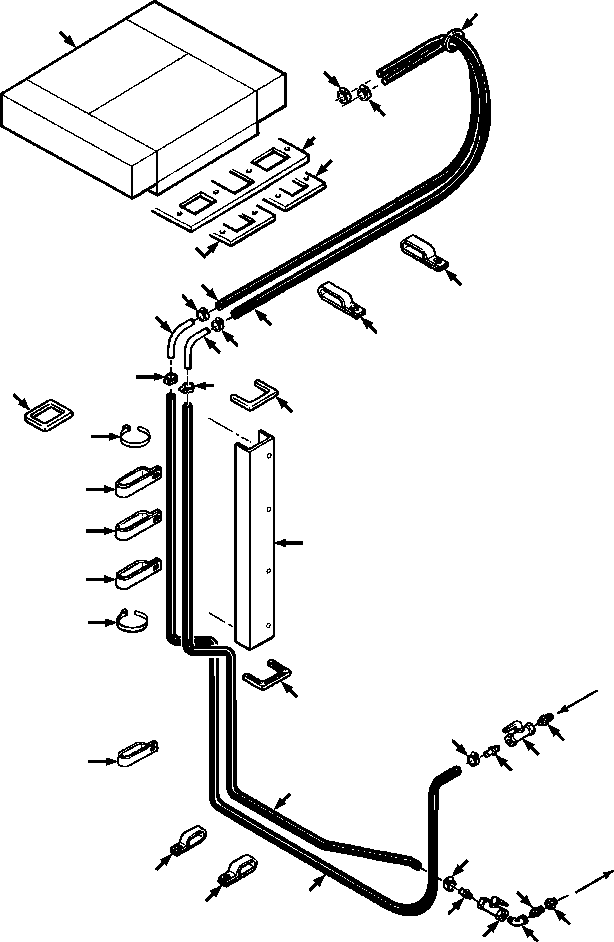

HEATER PRESSURIZER MOUNTING, LINES AND PIPING(13-090 : 13-090)
Номер на схеме Каталожный номер Название Количество Детали
? (1211 861 H91) HEATER PRESSURIZER -54 F1
? • HEATER PRESSURIZER (SEE PG 13-092) -29 13-092
? 9413 979 • NUT, HEX - 3/8NC 18
? 25 553 R1 • WASHER, FLAT - 3/8 18
? 25 542 R1 • WASHER, FLAT - 1/4 8
? 120 375 • NUT, HEX - 1/4NC 8
? 736 489 C1 • CHANNEL, RIGHT 1
? 24 839 R1 • BOLT, MOUNTING - 3/8NCx3/4 4
? 25 544 R1 • WASHER, FLAT - 3/8 4
? 935 522 C1 • STRAP, TIE 2
? 326 078 R1 • CLAMP (ABOVE VISOR) 2
? 24 840 R1 • BOLT, MOUNTING - 3/8NCx1 1
? 25 544 R1 • WASHER, FLAT - 3/8 2
? 9413 979 • NUT, LOCK - 3/8NC 1
? 330 929 R1 • CLAMP (AT RH FRONT FRAME) 1
? 668 585 C1 • ELBOW, WATER HOSE 2
? • HOSE, UPPER HEATER (64 IN. LONG) 2 F2
? • HOSE, LOWER HEATER RETURN (116 IN. LONG) 1 F2
? • HOSE, LOWER HEATER SUPPLY (151 IN. LONG) 1 F2
? 122 316 R91 • CLAMP, HOSE 8
? 326 078 R1 • CLIP, HOSE 3
? 24 839 R1 • BOLT, MOUNTING - 3/8NCx3/4 3
? 25 544 R1 • WASHER, FLAT - 3/8 3
? 326 078 R1 • CLIP, HOSE 1
? 24 840 R1 • BOLT, MOUNTING - 3/8NCx1 1
? 25 544 R1 • WASHER, FLAT - 3/8 1
? 9413 979 • NUT, LOCK - 3/8NC 1
? 1235 817 H1 • NIPPLE, REDUCER 2
? 153 843 R1 • NIPPLE, HOSE 2
? 444 043 • ELBOW - 90° 1
? 627 686 C1 • VALVE, SHUT OFF 2
? 23 174 R1 • BUSHING, REDUCER 1
? • TRIM, FLEXIBLE - 8 IN LONG 2 F3
? • SEAL - 10 IN LONG 1 F3
? 306 132 C2 • STRAP, CABLE 1
? 1220 778 H1 • GASKET, LOWER 1
? 1220 779 H1 • GASKET, UPPER 1
? 1232 002 H1 • GREASE, RELEASE AGENT 1
? 1232 251 H1 • COMPOUND, RUBBER SEALING 1
? 117 724 C1 HOSE, BULK A/R
? 1262 660 H1 MOLDING, BULK A/R
?
? F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.
?
?
? F2 - CUT REQUIRED LENGTH FROM BULK HOSE 117 724 C1.
?
?
? F3 - CUT REQUIRED LENGTH FROM BULK MOLDING 1262 660 H1.
?
